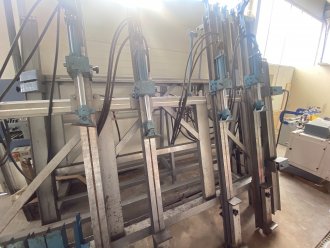

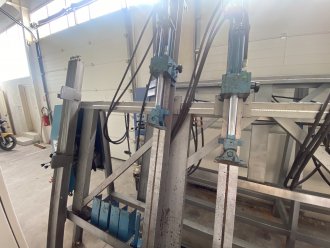

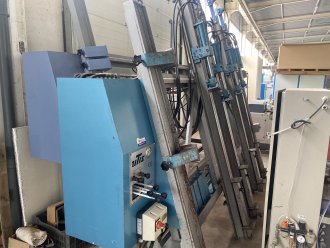

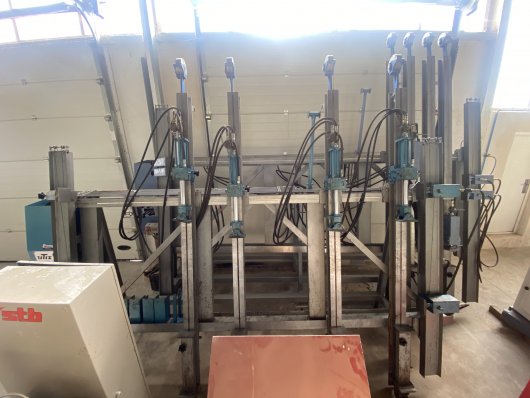

Vertical stirrup bender UTIS 3000X2000mm

Utis UTIS 3000X2000mm
Code : AR00668
Utis Condition : Used - In stock
Contact us by email by clicking here or by phone on 04 90 70 50 33
Category : Frames

Technical description

Vertical stirrup bender UTIS 3500X2500mm

Details :


3 movable crosspieces, each equipped with a fixed stop and a double-acting cylinder
stroke 200mm, pressure adjustable from 0 to 100 bars (0 to 2800 kg), locking
fast and precise in each position by hydraulic cylinders and pellets in
hardened steel, blocking control from the main distributor. 1 beam
fixed side equipped with 2 mobile stops, 1 mobile side beam, quick release
by hydraulic cylinders, control from the main distributor, 2
double-acting cylinders stroke 120 mm, pressure adjustable from 0 to 40 bars (0 to 1200
kg), 1 hydraulic unit, motor 2.2 kW/ 1500 rpm, 1 distributor with 4 elements
including 2 single-acting for the locks and 2 double-acting for the cylinders,
2 pressure regulators allowing separate adjustment of cylinder pressures
vertical and horizontal, 2 controlled valves guaranteeing pressure maintenance
vertical and horizontal cylinders for gluing work. 3 extensions of
50 cm for small frames. 1 disconnector and 1 thermal circuit breaker for the
main motor control and protection.
