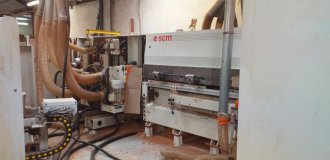

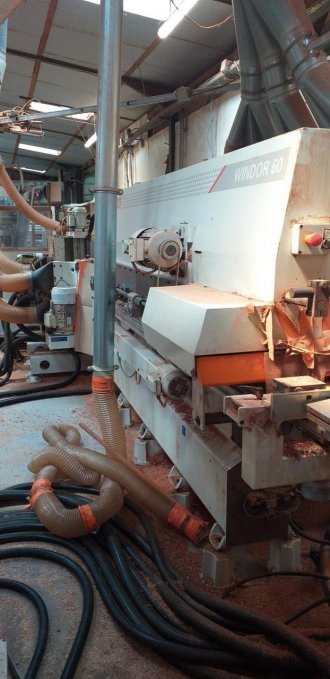

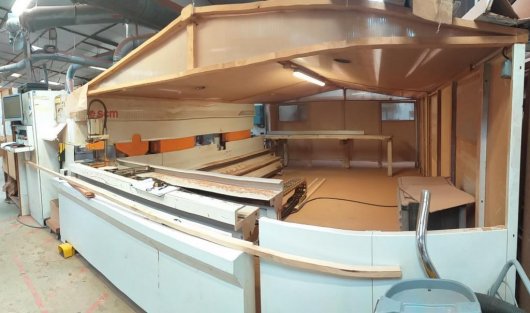

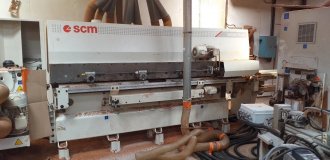

Angular center SCM WINDOR 60

Technical characteristics :
- Max machinable length 3200 mm
- Minimum machinable length 200 mm
- Maximum width 200 mm
- Minimum width 30 mm
- Maximum workpiece height 130 mm
- Minimum height 30 mm
- Tenoning carriage speed min / max 0-55 m / min
- Min / max profiling speed: 4-20 m / min
- Machining table height in profiling 850mm
- Profiling machining table height with automatic induction 995mm
- Machining table height in tennoning 995mm
- Diameter drive wheels in profiling 100mm
- Drive wheel center distance in profiling 120-150mm
- Depth with max Ø to tenon 320 mm: 105 mm

Option:
-Return of parts for Windor 60
-Static continuity group for CN power supply
-Left guide on right roll forming machine with CN displacement
-On / OFF horizontal displacement for training wheels
-Motorized vertical position A continuous axis
-Lower horizontal shaft
-Left profiler
-Equipment with automatic inversion of profiling parts
-Inpolating rotaten for 2 tenoning spindles
-2nd Tenoning router

Composition:

Tenoning

Position 1:

- End cut saw
-Power 5.5 hp (4 kW)
-Diameter max tool 400mm with bore 80mm
-Speed of rotation 3000t / min

Position 2:

- Tenoning router TL62T
-Diameter max tool 320mm or 370mm
-Shaft diameter 50mm Length 620mm
-Speed of rotation 3500rpm
-Motor power 11kw / 15hp
-Stroke axis 575 mm
-Automatic splinter guard


Position 3:

Lower or upper horizontal group for grooving operation:
-Motor power 3kw 4cv
-Diameter useful tool 220mm
-Diameter shaft 40mm L = 130mm
-Speed of rotation 6000 rpm

Position 4:

- Tenoning router TL62T
-Diameter max tool 320mm or 370mm
-Shaft diameter 50mm Length 620mm
-Speed of rotation 3500rpm
-Motor power 11kw / 15hp
-Stroke axis 575 mm
-Automatic splinter guard

Straight profiling

Position 6:

-Right profiling router TL62
-Diameter min / max tool 130-250
-Shaft diameter 50mm Length 620mm
-Speed of rotation 6000tr / min
-Motor power 11kw / 15hp
-Stroke axis 575 mm
-Automatic splinter guard
- Axis stroke 280 mm
-Timed anti-shattering intervention during calibration
-Double direction of rotation
-Vertical and horizontal positioning with continuous axis

Position 7:

-Right profiling router TL62
-Diameter min / max tool 130-250
-Shaft diameter 50mm Length 620mm
-Speed of rotation 6000tr / min
-Motor power 7.5kw / 10hp
-Stroke axis 575 mm
-Automatic splinter guard
- Axis stroke 280 mm
-Timed anti-shattering intervention during calibration
-Double direction of rotation
-Vertical and horizontal positioning with continuous axis

Position 8:

-Right profiling router TL62
-Diameter min / max tool 130-250
-Shaft diameter 50mm Length 620mm
-Speed of rotation 6000tr / min
-Motor power 11kw / 15hp
-Stroke axis 575 mm
-Automatic splinter guard
- Axis stroke 280 mm
-Timed anti-shattering intervention during calibration
-Double direction of rotation
-Vertical and horizontal positioning with continuous axis

Position 9:

Lower or upper horizontal group for grooving operation:
-Motor power 3kw 4cv
-Diameter useful tool 220mm
-Diameter shaft 40mm L = 130mm
-Speed of rotation 6000 rpm

Left profiling

Position 10:

-Left profiling router TL62
-Diameter min / max tool 130-250
-Shaft diameter 50mm Length 620mm
-Speed of rotation 6000tr / min
-Motor power 11kw / 15hp
-Stroke axis 575 mm
-Automatic splinter guard
- Axis stroke 280 mm
-Timed anti-shattering intervention during calibration
-Double direction of rotation
-Vertical and horizontal positioning with continuous axis

Position 11:

-Left profiling router TL62
-Diameter min / max tool 130-250
-Shaft diameter 50mm Length 620mm
-Speed of rotation 6000tr / min
-Motor power 11kw / 15hp
-Stroke axis 575 mm
-Automatic splinter guard
- Axis stroke 280 mm
-Timed anti-shattering intervention during calibration
-Double direction of rotation
-Vertical and horizontal positioning with continuous axis

Position 12:

Upper horizontal saw group for glazing bead recovery with extraction device:
-Motor power 3kw 4cv
-Diameter useful tool 220mm
-Shaft diameter 30mm L = 30mm

Lower horizontal group for grooving operation:
-Motor power 3kw 4cv
-Diameter useful tool 220mm
-Diameter shaft 40mm L = 130mm
-Speed of rotation 6000 rpm
