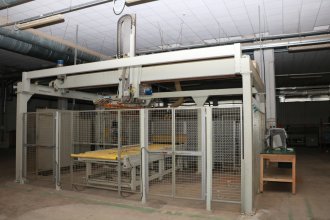

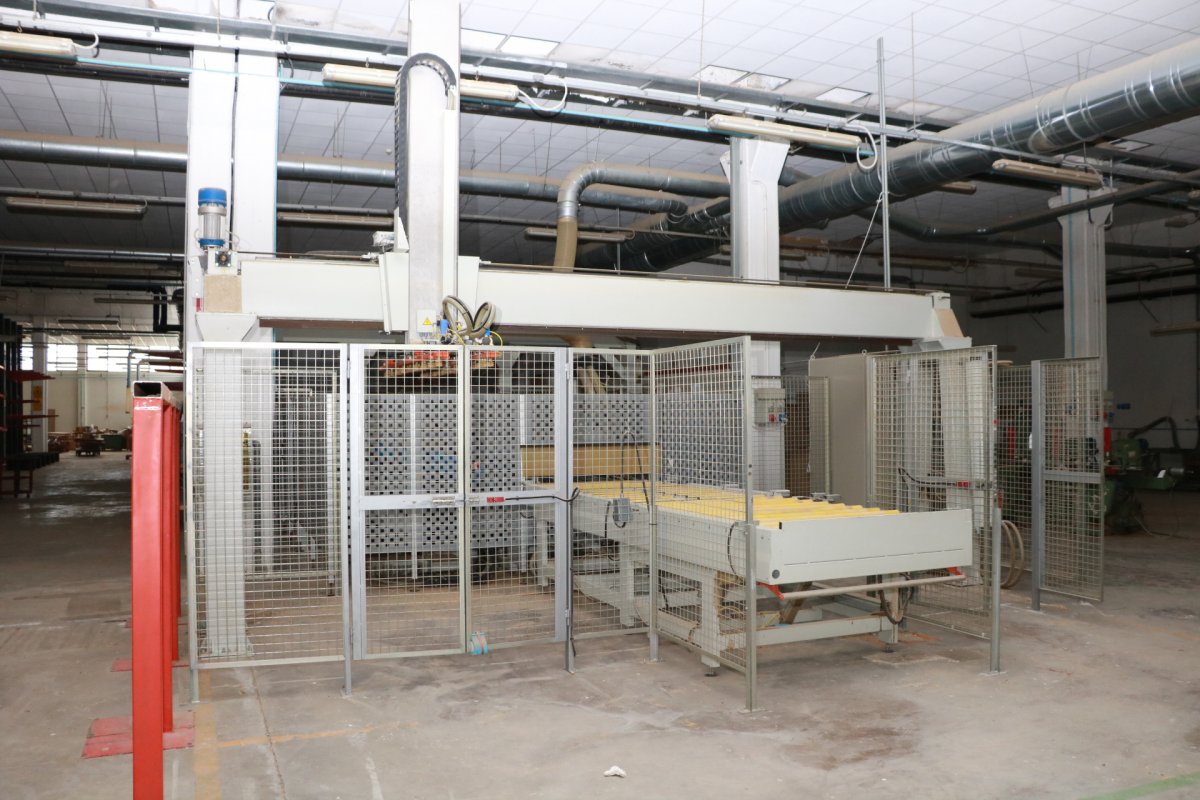

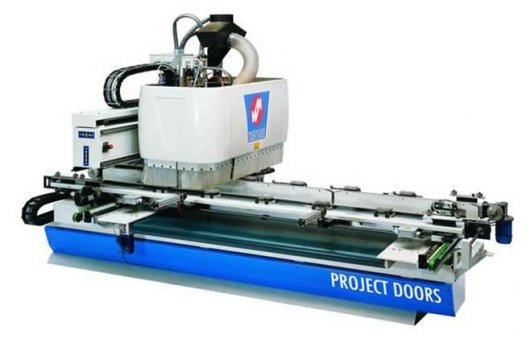

DOORLIGNE machining and slotting center

DOORLIGNE machining and slotting center

Description:

NUMERICALLY CONTROLLED MACHINING CENTER FOR SIMULTANEOUS MACHINING OF:
- LOCKS HOUSING
- KEY HOLE AND HANDLE
- HINGE HOUSING OR INSTALLATION OF ANUBA SHEETS
ON ASSEMBLED DOORS.

TECHNICAL CHARACTERISTICS :
STRUCTURE COMPOSED OF A MONOLITHIC BUILDING WERE MOUNTED TWO
SUPPORTS, ONE FIXED AND ONE MOBILE.

FIXED SUPPORT:

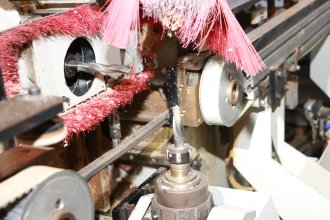

- 5.5 KW HORIZONTAL ELECTROMANDREL
- ROTATION SPEED FROM 1,000 TO 18,000 RPM
- TOOL LOCK WITH ER 25 DIAM. 16 MM AND TIGHTENING NUT
- 3 AXES CONTINUOUSLY CONTROLLED - MOVEMENT BY BRUSHLESS MOTORS
- CIRCULAR INTERPOLATION
- MECHANICAL PREDISPOSITION FOR HOUSING MILLING GROUPS
UPPER AND LOWER VERTICALS (AVAILABLE AS AN OPTION)
- VARIATOR FOR 5.5 KW MILLING GROUP

MOBILE SUPPORT:
- TRAVEL SPEED 25 M/MN
- MOVEMENT BY SCREWS AND SOCKETS WITH RECIRCULATION OF HARDENED SPHERES
AND RECTIFIED.
- BRUSHLESS MOTOR
- MOVEMENT ON LINEAR SLIDES WITH RECIRCULATION SKATES
OF SPHERES - SCRAPER ON THE SIDES AND PROTECTIVE BELLOWS
- AUTOMATIC MOVEMENT MANAGED BY THE DIGITAL CONTROL IN OPERATION
OF THE WIDTH OF THE DOOR TO BE MACHINED

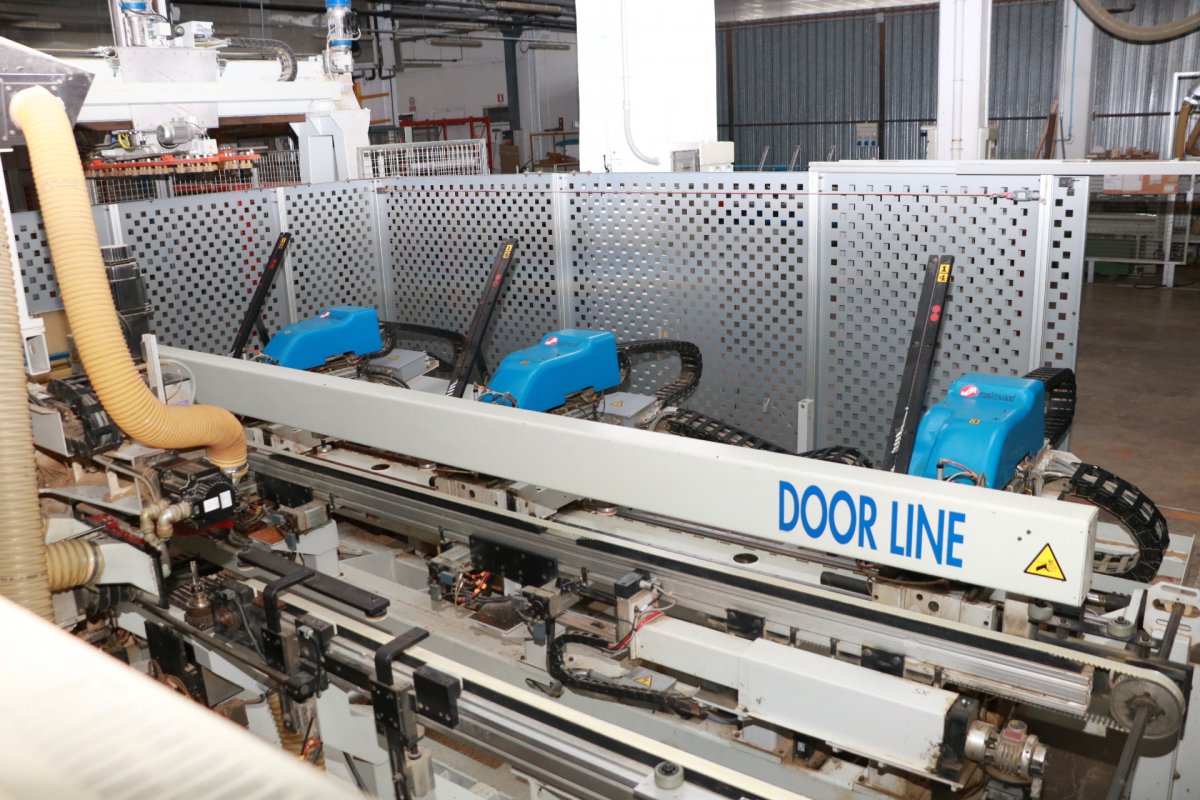

- BEAM PREDISPOSED FOR THE ASSEMBLY OF 1 TO 4 GROUPS FOR THE INSTALLATION OF
ANUBA SHEETS AND/OR MILLING GROUPS FOR HINGES
- BEAM INCLINATION FROM - 3° TO + 19°

WORK TABLE MANAGED BY THE DIGITAL CONTROL:
- 2 CONVEYOR BELTS FOR THE LOADING AND UNLOADING CYCLE
AUTOMATIQUE
- 2 POSITIONING STOPS, ONE FOR MACHINING THE RIGHT DOOR,
THE SECOND FOR THE MACHINING OF THE LEFT DOOR.
STOPS PROVIDED WITH "UP-DOWN" MOVEMENT TO ALLOW THE
DOOR POSITIONING.
- 4 RETRACTABLE PUSH JACKS ON THE MOBILE SUPPORT
- 4 ALIGNMENT STOPS ON THE FIXED SUPPORT
- 4 PRESSERS ON THE MOBILE SUPPORT
- 4 PRESSERS ON THE FIXED SUPPORT

"SINCRO" DIGITAL CONTROL

USER INTERFACE ON PC
COMPAQ DESTOP PRO PC
INTEL CELERON 1.3GHZ PROCESSOR
RAM: 128MB
HARD DISK: 20 GB
CD-ROM DRIVE
3.5" DISK DRIVE
SCREEN: COLOR 17"
INTEL 3D DIRECT AGP VIDEO CARD
ETHERNET CARD FOR NETWORK CONNECTION
PORTS: TWO SERIES (RS 232 - RS 485), ONE PARALLEL AND TWO USB
INTERNAL MODEM 56 KB
CONNECTORS FOR MICROPHONE, AUDIO STEREO IN/OUT
PS2 KEYBOARD INPUT
KEYBOARD PROTECTION MEMBRANE
MOUSE: PS2 INPUT
WINDOWS OPERATING SYSTEM
3-YEAR ON-SITE WORLDWIDE WARRANTY
SOFTWARE:
- GRAPHIC PROGRAMMING OF MILLING AND INSTALLATION OF ANUBA SHEETS
- PRODUCING PROFILES AND PARAMETRIC DRAWINGS
- MACHINE TOOLS AND EQUIPMENT EDITOR
- GRAPHIC DISPLAY OF MACHINABLE SURFACES
- DIAGNOSTIC INPUTS/OUTPUTS OF RUNNING PROGRAMS

CE SAFETY STANDARDS:
- PERIMETER PROTECTION PANELS PREVENTING ACCESS
- ELECTRICAL CIRCUIT TO CE STANDARDS

Composition :

Upper vertical electrospindle:

• ODOOR003
3.3 KW ELECTROMANDREL
- ROTATION SPEED FROM 1,000 TO 18,000 RPM
- ER 25 CLAMP ATTACHMENT (DIAM. FROM 5 TO 16 MM) WITH TIGHTENING NUT
- ER CLAMP 25 DIAM. 16MM
- FREQUENCY VARIATOR

• ODOOR006
CARRIAGE - PNEUMATIC VERTICAL ELECTROMANDREL
- PNEUMATIC VERTICAL, TRANSVERSAL AND LONGITUDINAL MOVEMENT
# DOES NOT ALLOW INTERPOLATIONS

Lower vertical electrospindle:

• ODOOR003
3.3 KW ELECTROMANDREL
- ROTATION SPEED FROM 1,000 TO 18,000 RPM
- ER 25 CLAMP ATTACHMENT (DIAM. FROM 5 TO 16 MM) WITH TIGHTENING NUT
- ER CLAMP 25 DIAM. 16MM
- FREQUENCY VARIATOR
• ODOOR006
CARRIAGE - PNEUMATIC VERTICAL ELECTROMANDREL
- PNEUMATIC VERTICAL, TRANSVERSAL AND LONGITUDINAL MOVEMENT
# DOES NOT ALLOW INTERPOLATIONS

Horizontal electrospindle:

• ODOOR003
3.3 KW ELECTROMANDREL
- ROTATION SPEED FROM 1,000 TO 18,000 RPM
- ER 25 CLAMP ATTACHMENT (DIAM. FROM 5 TO 16 MM) WITH TIGHTENING NUT
- ER CLAMP 25 DIAM. 16MM
- FREQUENCY VARIATOR
• ODOOR006
CARRIAGE - PNEUMATIC HORIZONTAL ELECTROMANDREL
- PNEUMATIC VERTICAL, TRANSVERSAL AND LONGITUDINAL MOVEMENT
# DOES NOT ALLOW INTERPOLATIONS


COMPOSITION OF REAR CARRIAGES 3 FILING GROUPS:

REAR CARRIAGE AXIS

• ODOOR012 NB3
CARRIAGE CARRIER - FILING UNITS AND/OR MILLING UNITS FOR
MACHINING OF HINGE SLOTS.
- BRUSHLESS MOTORIZATION
- POSITIONING MANAGED BY NUMERICAL CONTROL
- LINEAR AND CIRCULAR INTERPOLATION
#4 MAX CARTS

• OBG01506 NB3
DRILLING/SCREWING GROUP FOR MALE AND FEMALE ANUBA PLUGS
- DRILL CHUCK WITH 0.75 KW MOTOR
ROTATION SPEED OF 3,700 RPM
- SCREW CHUCK WITH 0.75 KW MOTOR
ROTATION SPEED OF 400 RPM.
- SCREWING SYSTEM WITH MECHANICAL DEPTH PROBE
# PLEASE CHOOSE THE OPTION "CHARGER, CHUCK AND BIT FOR FILES
SINGLE ANUBA" WHICH IS IN THE TABLE AT THE BOTTOM OF THE RATE. IF YOUR
SHEET IS NOT LISTED, PLEASE CHOOSE "OAG00000" OPTION
# PLEASE CHOOSE OPTION OAG0A127 FOR DUAL ANUBA PLUGS

• OAG00000 NB3
CHARGER, CHUCK AND DRILL BITS FOR SINGLE UNCLASSIFIED ANUBA PLUGS.
# PLEASE SEND US AT LEAST 10 SAMPLES OF SHEETS IN
SPECIFYING BRAND AND ARTICLE CODE
