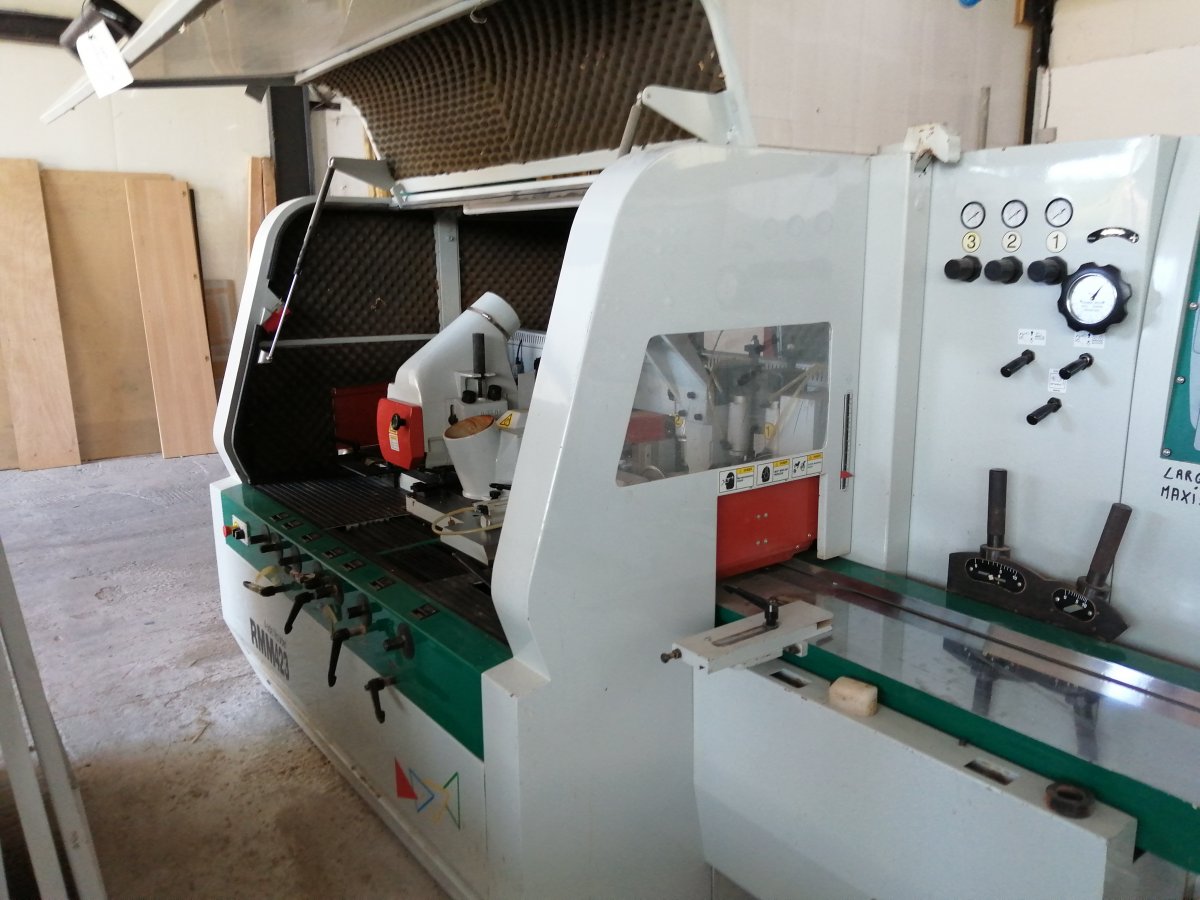

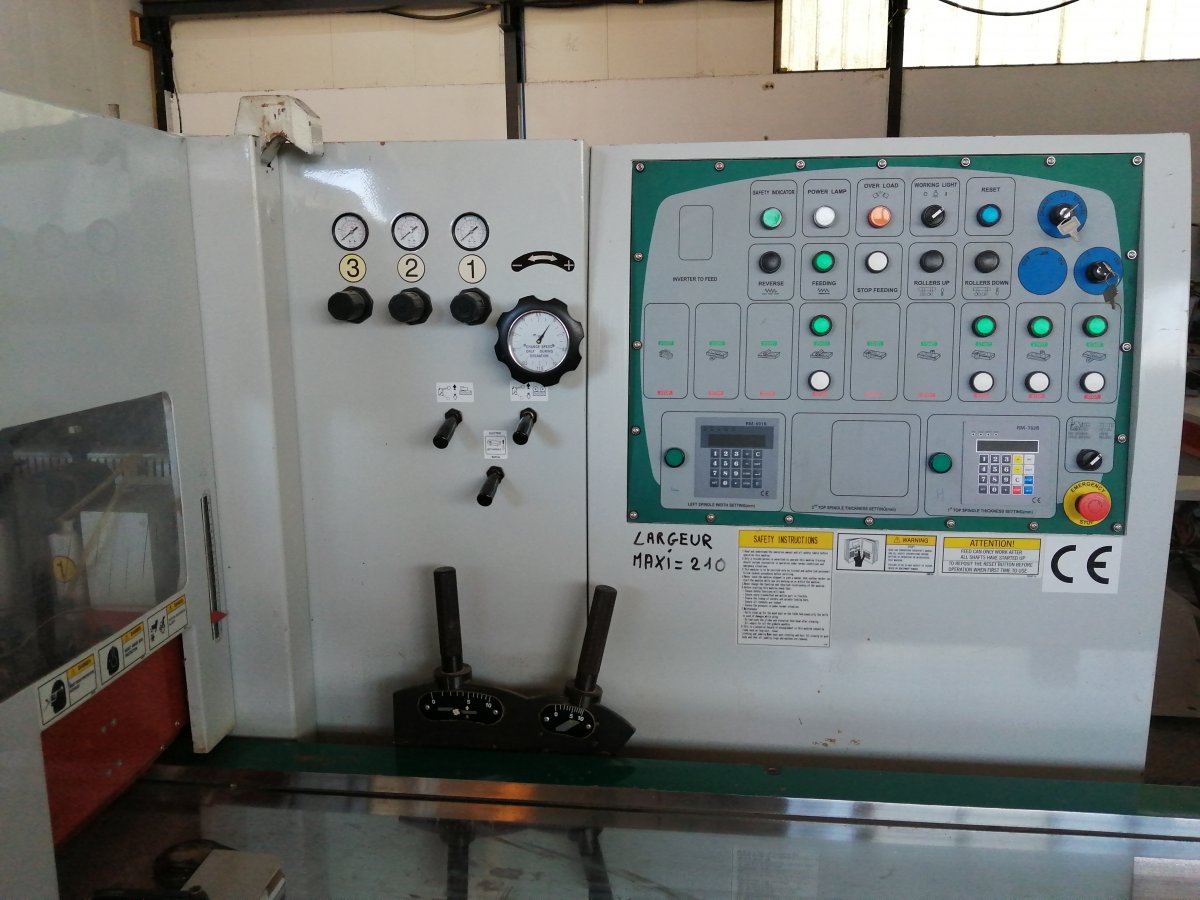

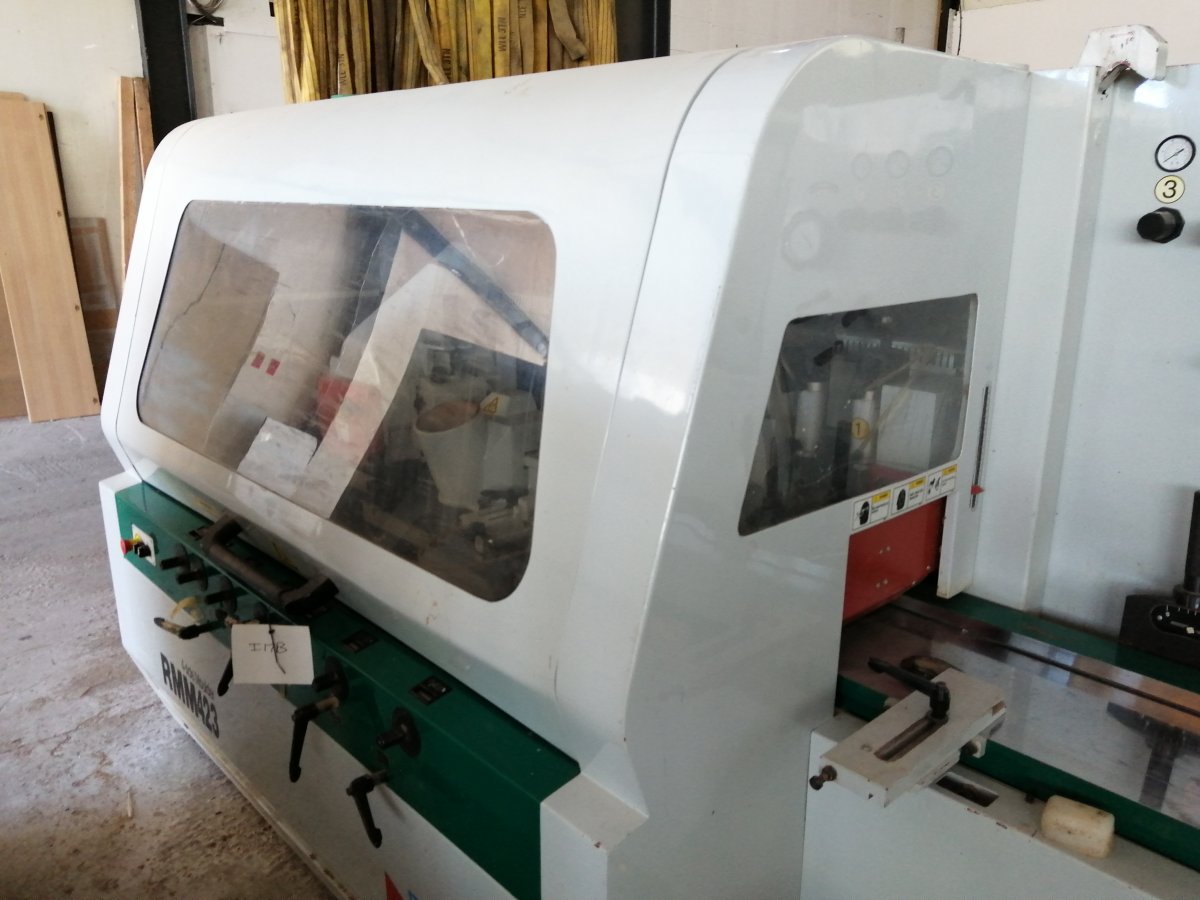

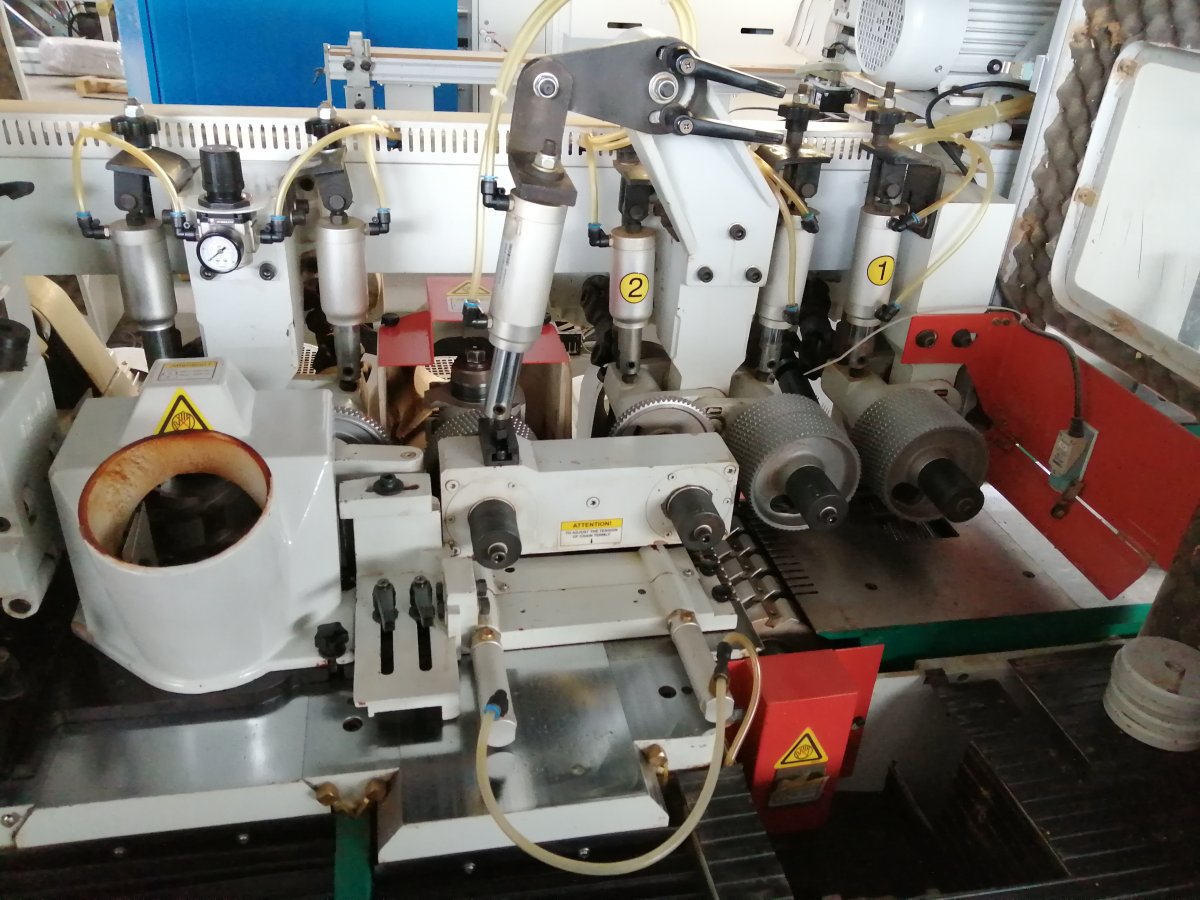

RMM423 4-SIDED MOULDER TRIMMER

RMM423 4-SIDED MOULDER TRIMMER

-Working width mm min:20
-Working width - mm max:230
-Working thickness - mm min.8
-Working thickness - mm max.160
-Number of trees 4
-Axis speed (r/min) 6000
-Degau ø 108~ ø 145
-Straight spindle moulder ø 108~ ø 200
-Left spindle ø 108~ ø 200
-Planer ø 108~ ø 200
-Universal shaft ø 108~ ø 200
-Axle diameter (mm) ø 40
- Motor power (standard) * Degau: 5.5kw
* Straight spindle moulder:5.5kW/7.5HP
* Left spindle moulder:5.5kW/7.5HP
* Planer:7.5kW/10HP
* Drive:3kW/7.4HP
- Total motor power: 27 Kw
- Drive speed (m/min) 6~30
- Drive roller diameter (mm) ø 140/ø 35
- Drive roller width (mm) 2x50
- Drive roller width. opposed to the left axis 2x(1x20+1x16)
- Drive roller diameter outside (mm) ø 140/ø 35
- Driven roller width. outside (mm) 2x50
- Stroke diameter of the driven roller. interior ø 96
- Stroke width of the driven rollers. interior 1x30+1x50
- Roller stroke diameter between the two upper shafts ø 96
- Roller stroke width between the two upper shafts 253
- Diameter of the driven roller. outside ø 96
- Width of driven roller. exterior 253
- Max air pressure. on the inner driven rollers 6
- Drive table and grid adjustment (mm) 10
- Axial adjustment of the vertical axes (mm) 30
- Axial adjustment of horizontal axes (mm) (except for 1st lower axis) 20
- Drive table length. (mm) 2000
- Dimensions of the machine (mm) 3760x1730x1750
- Weight (kg) 3300
