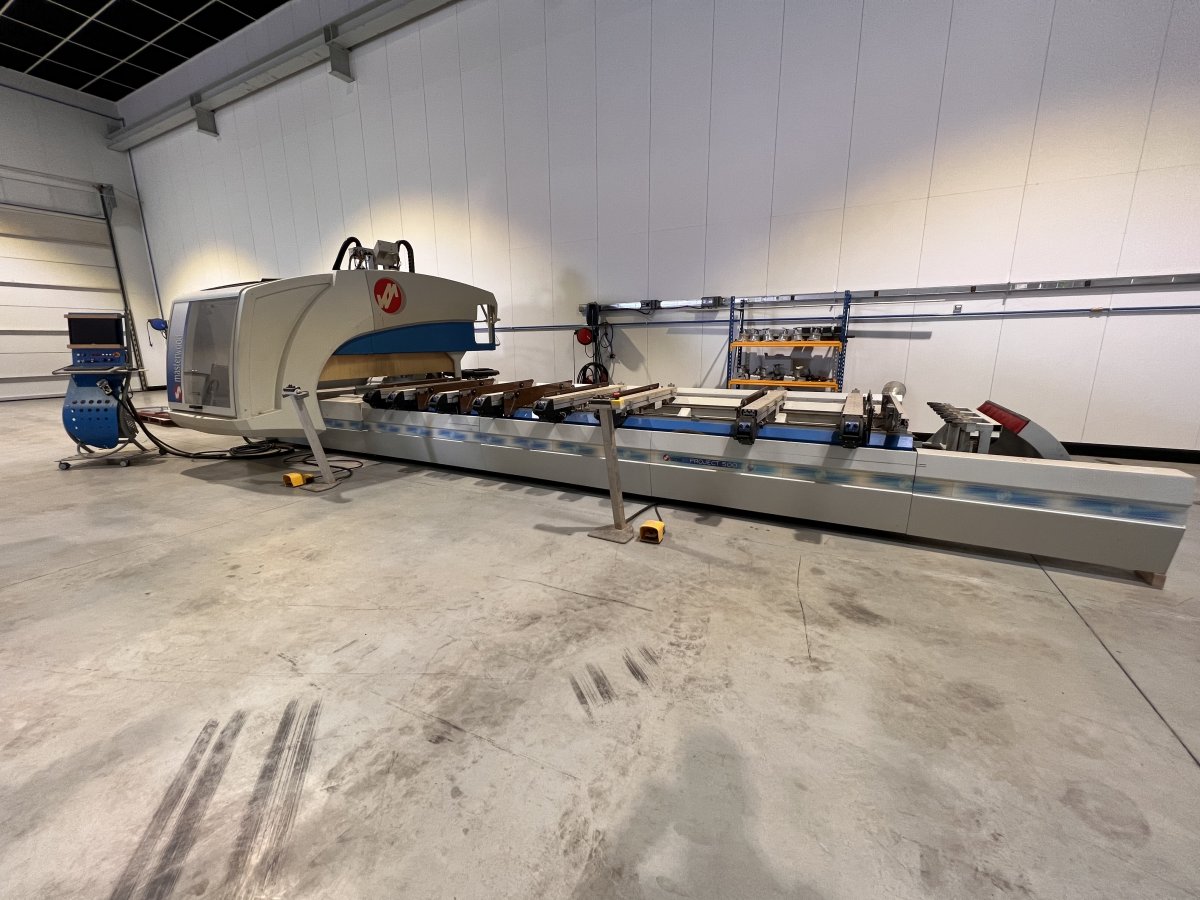

MASTERWOOD PROJECT 500L machining center

Masterwood 500L
Code : AR01009
Masterwood Condition : Used - In stock
Contact us by email by clicking here or by phone on 04 90 70 50 33
Category : Working centers

Technical description

Masterwood PROJECT 500 L machining center

Composition :

-X: 5200mm Y: 1660mm Z: 175mm
-Horizontal milling head 2.2kw
- Electrospindle 14kw HSK63 F (18hp)
-4 Axis (c axis)
-Controlled suction cap

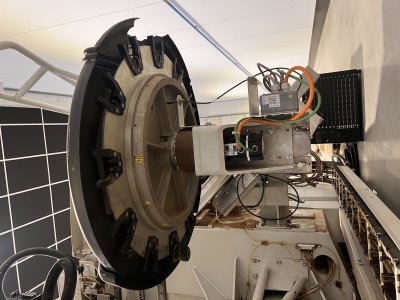

-8 position quick tool magazine on HSK63F head
- ANUDA plug group male and female D13mm
- Tool magazine 12 positions on HSK 63 F head
- 6 Position Pick-Up Tool Magazine
-1 Tilting head 1 outlet -10°/90° Blade D=180+ HSK63F milling cutter
-1 Fixed head 2 blade holder outlets D=220mm + HSK63F cutter holder
-1 Fixed head with 2 HSK63F cutter holder outlets
-14kw frequency inverter
-19kw cooling unit
-CE names version L
-8 Schmalz bars with double vacuum zone
-2 Stopper per bar
-12 Suction cups 114x140mm
-12 Suction cups 125x75mm
-Predisposition of 8 bars for pneumatic blocking
-2 additional panel lifting blades
-Kit for carpentry blocking
-2 pneumatic vices
-2 vacuum pumps of 100m3/h
-Chip recovery mat
-Mobile remote control with digital screen
-Mobile control desk
-Suction: 1 mouth D250mm / 1 Bocuhe D 120mm
-Flow: 6500m3/h
-Year: 2009
-74 Amps
