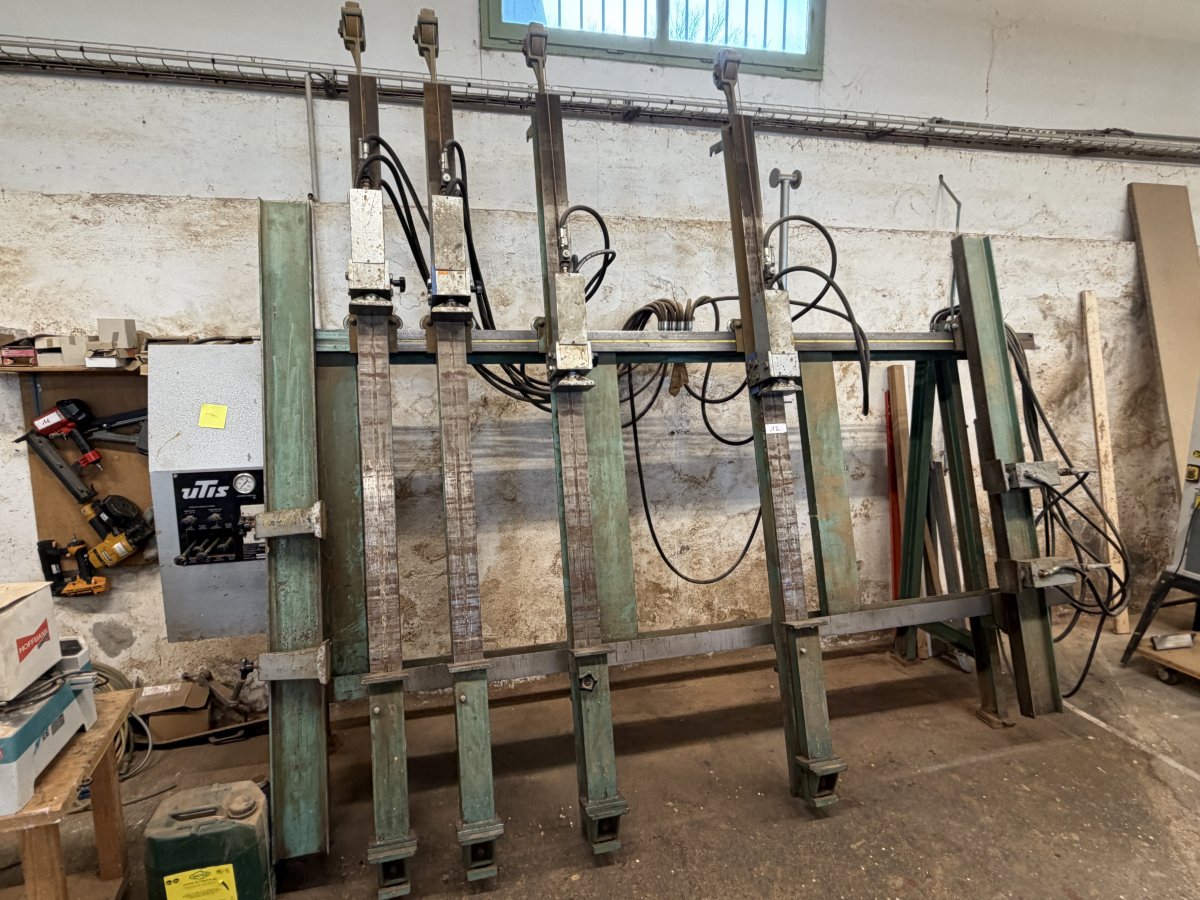

UTIS 3000x2000 Framer
· Registration number: 123
Year : 1981
Origin : France
Condition : Used
Availability : In stock
Technical specifications :
- Usable capacity: L.3000 x H.2000
-4 beams
-Single-beam hydraulic system
-Lifting system
-Oversized structure to prevent twisting
-Manual positioning of the cylinders and horizontal stops
-We optimize the tightening at the center of the 2 beams
-Horizontal jacks Ø65 x 1200mm - 6T clamping
-Vertical jacks Ø90 x 1100mm - 14T clamping
-Motor power 2hp 380V 3-phase
-Footprint: W.3.30 x H.2.65 x D.1.25
-Net weight: 1600 kg
Included options:
-4th crossbeam, length 2 m
-Lifting device for clearing one or two crossbeams to the right of the movable beam with valves on the locking mechanism
-Isolation tap for gluing work
