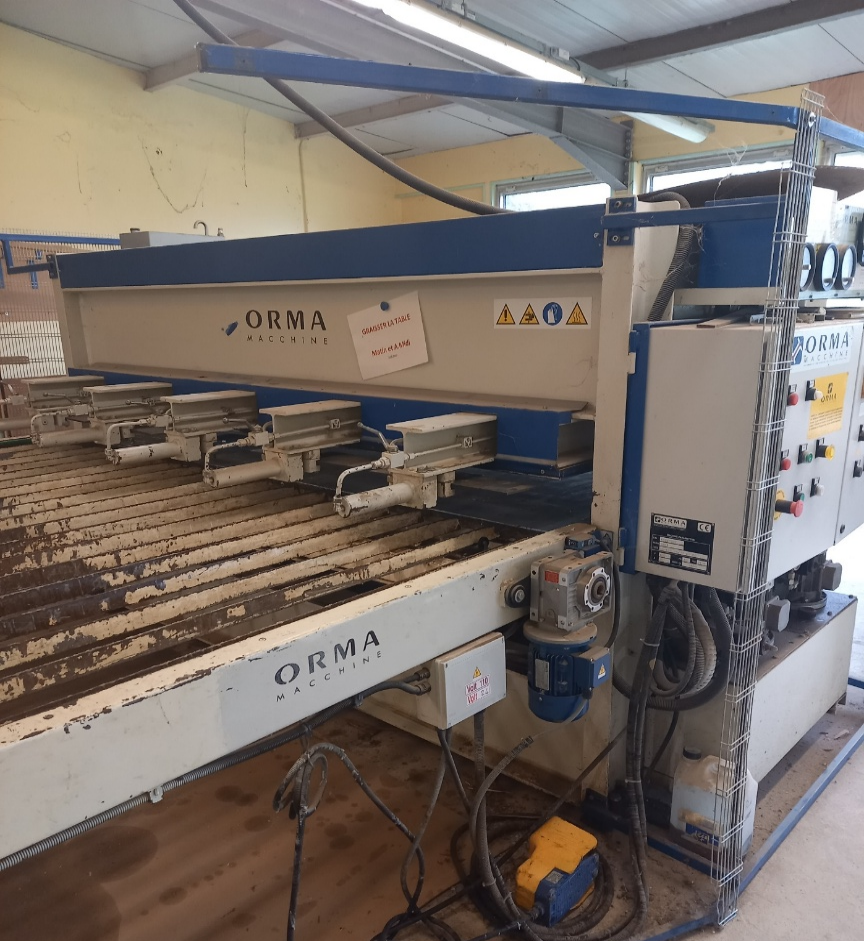

ORMA LS-ECO 25/13 AS/B0 Panel Press

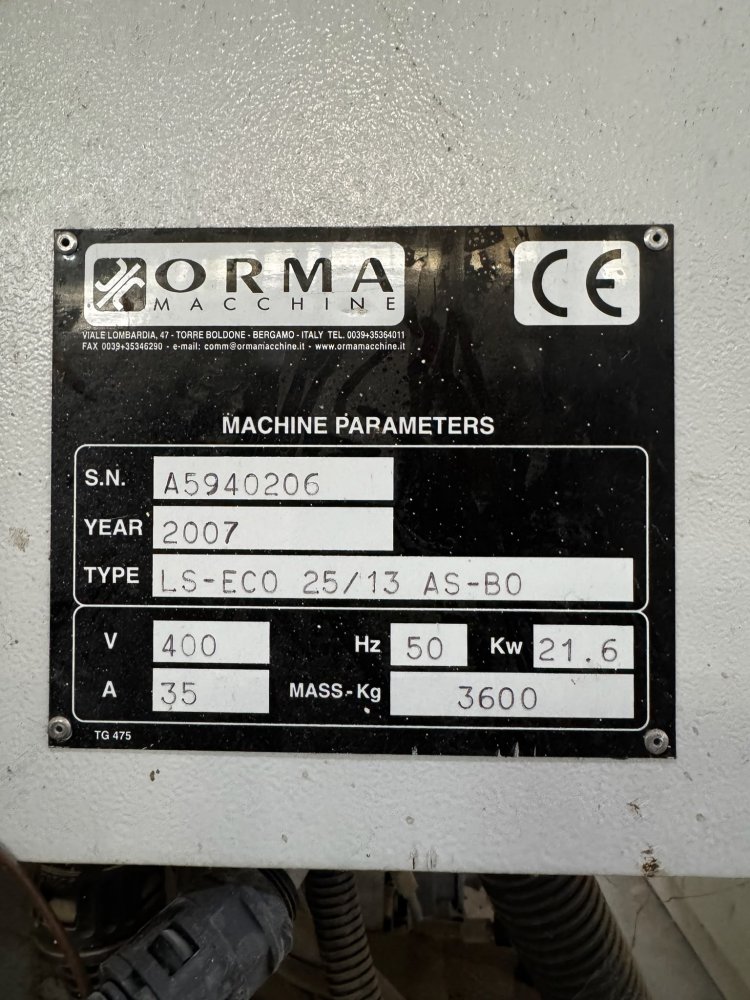

· Registration number: A5940206
· Year: 2007
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications :
Power supply: 400 V three-phase
Frequency: 50 Hz
Installed power: 21.6 kW
Rated current: 35 A
Usable pressing dimensions: 2500 × 1300 mm
Press type: Cold hydraulic press
Vertical pressing force: 38.4 tonnes
Lateral pressure force: 7.5 tonnes
Blocking force: 30 tonnes
Pressing cylinders:
4 cylinders Ø70 mm, stroke 150 mm
Side jacks:
5 cylinders Ø40 mm, stroke 150 mm
Locking cylinders:
3 cylinders Ø70 mm, stroke 150 mm
Hydraulic motorization (standard version):
2.2, 1.5, 1.5 kW
Weight: 3,600 kg
Marking: CE
