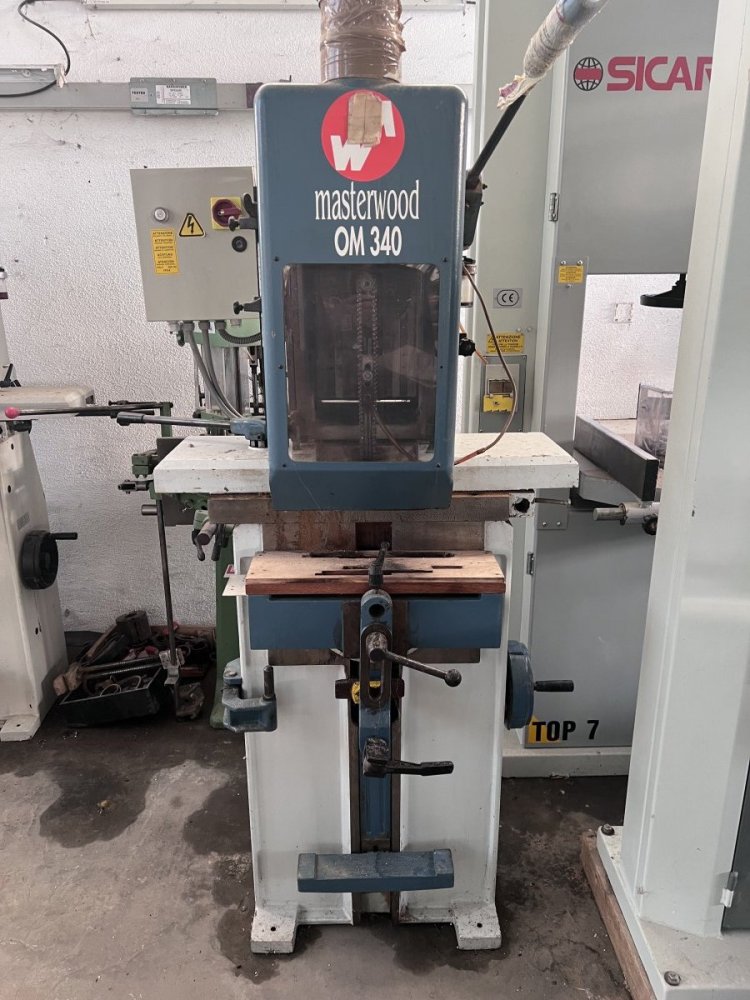

Maximum machinable height of the solid part: 180 mm Min/max machinable height of the assembled frame: 700/980 mm
Vertical operating group:
Chain: standard Manual vertical stroke: 150 mm Pneumatic vertical stroke: 150 mm option Longitudinal stroke: 300 mm Cross travel: 80 mm Mortise motor: 2.2 kW
Worktable:
Size: 140 x 470mm Extension dimensions (2 x L = 1200 mm): std Tilt: ± 45° Manual blocking of the part: std Pneumatic blocking of the part: option
Facility:
Maximum electrical power installed: 2.23 kW Pneumatic circuit operating pressure: 6 bar option Pneumatic circuit operating pressure: ⌀ 120 mm Upper suction mouth: 25+30 m/sec Pneumatic clamping: 6 bars
