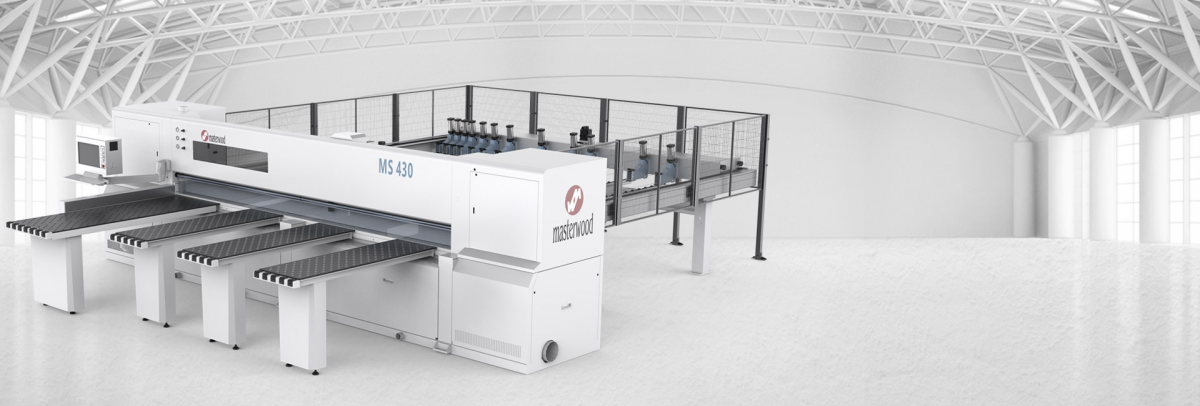

-Maximum cut: 4300x4300mm -15KW engine (20hp) -Max cutting thickness 90mm (with a 400mm blade) -Clamp opening max 120mm (possible to cut 120mm with 450mm blade) -10 pliers -1.5kw scoring blade motor -Max blade diameter 400mm bore 75mm -Sawing speed 95m/min -Carriage movement speed 110m/min -Minimum width for aligner 45mm -Mini cutting of 34x45mm parts

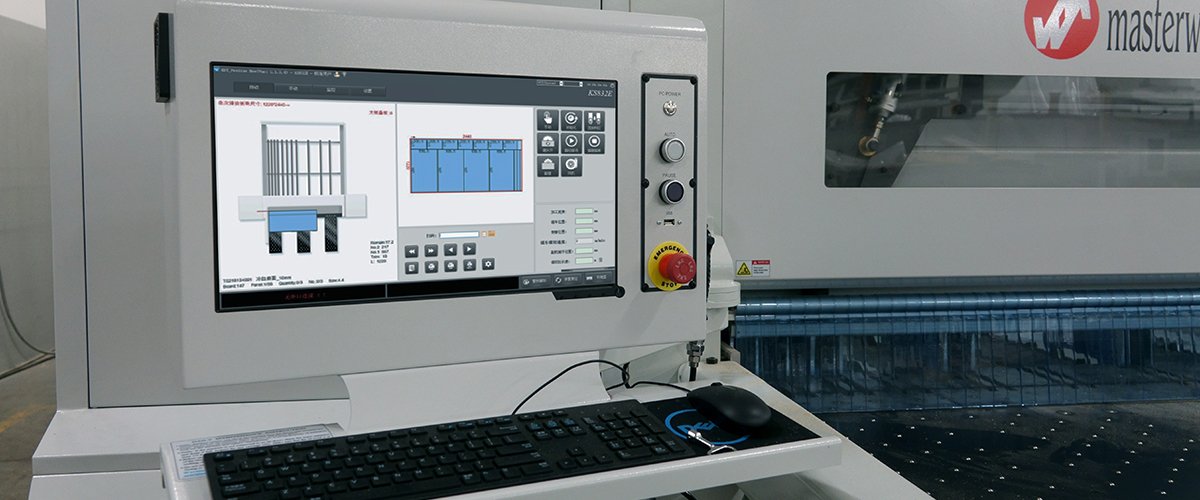

-Industrial PC, User-friendly interface indication of operations and error code guides. barcode printing Formats: txt, XML, saw, ptx
-Aligner 2 Alignment rollers

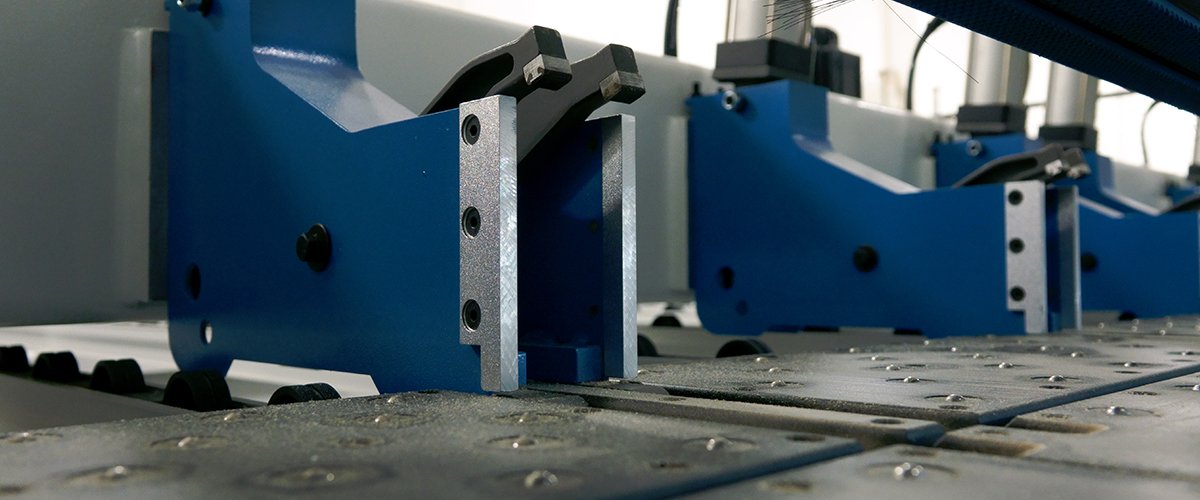

-Pliers Modern grippers with powerful vertical movement ensure effective and stable support cutting size is 34*45mm
-Automatic scorer adjustment By the control system the adjustment of the scoring blade is carried out automatically

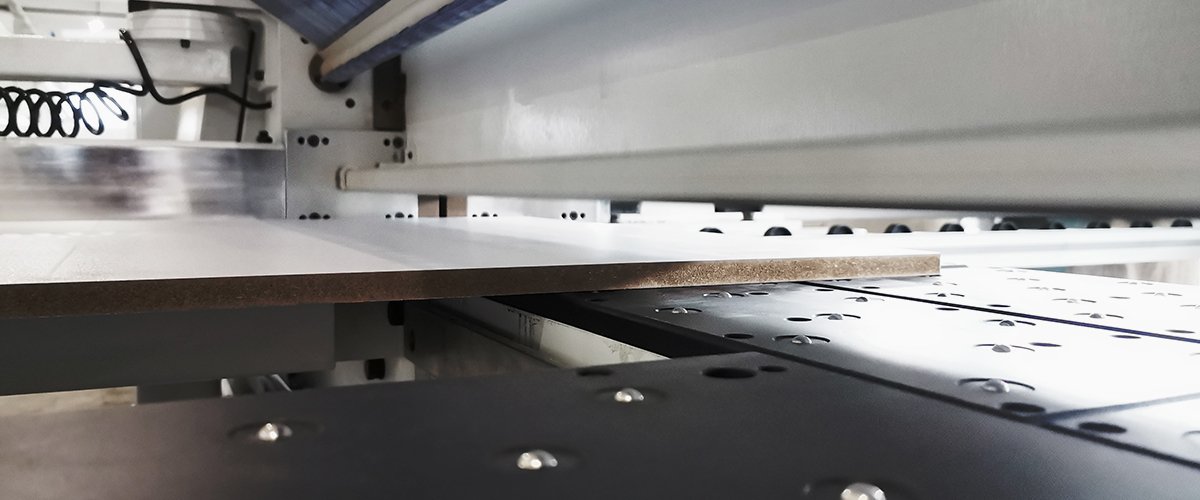

-4 Air cushion table in work area
-Intelligent pressure beam Height control, Automatic height control increasing the height of the presser depending on The thickness of the machined part
-Energy saving Saving mode triggered following a time adjustable inactivity
-Cutting height adjustment Automatic adjustment of the cutting height of the main blade according to the thickness of the machined part
-Moving the sawing carriage Rack and pinion movement
-Printer
-Pusher motor High precision pusher positioning by pinion and racks.
