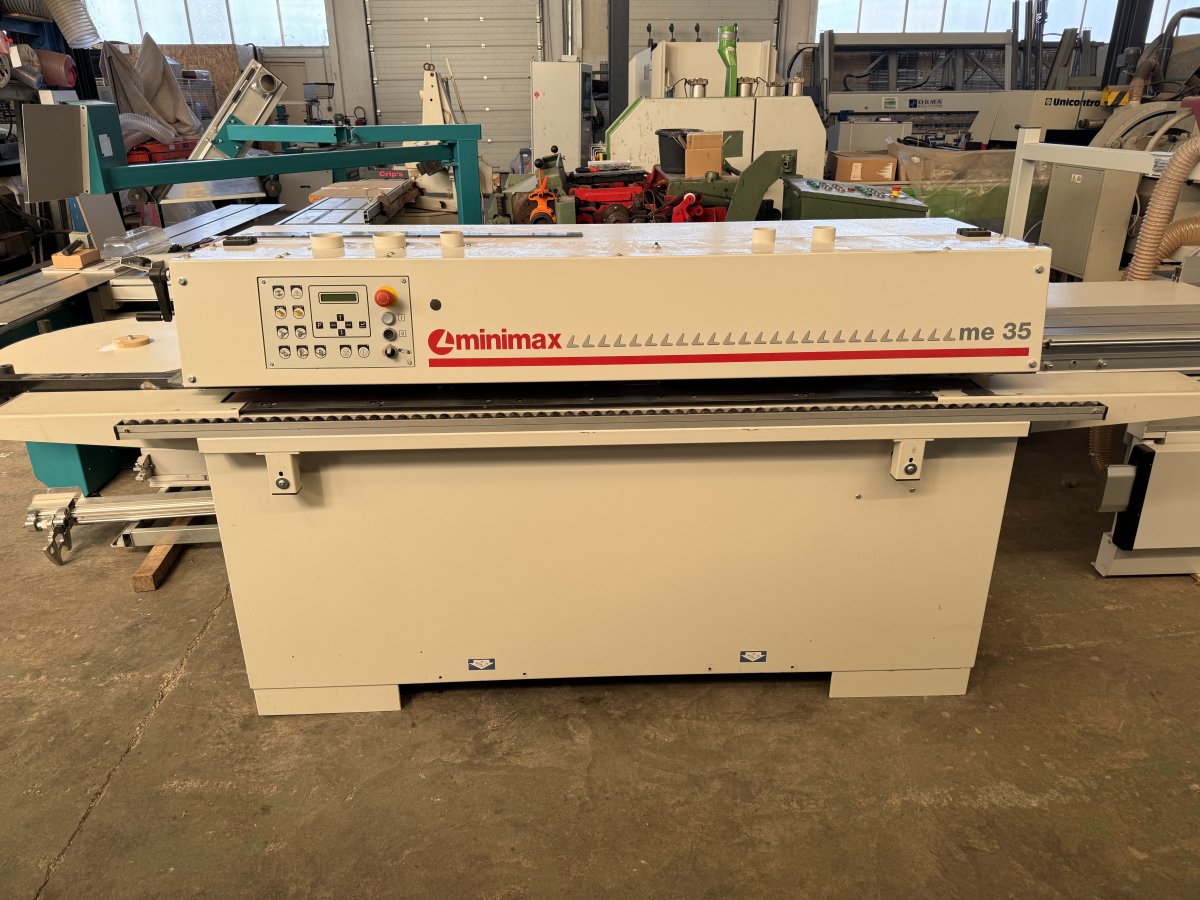

SCM ME35 Edgebander
· Registration number: KK 7138230
· Year: 2017
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications:
MACHINING CAPABILITIES:
- Height (thickness) of the panel to be machined: 8 to 50 mm
- Minimum panel length to be machined: 190 mm
- Minimum width of the panel to be machined: 110 mm
- Edge thickness: 0.4 to 2 mm
- Width of the edge:
- Training (forward speed): 7 m/min
- Maximum feed capacity of spindle moulders: 55 mm²
- Spacing between rooms: 600 mm

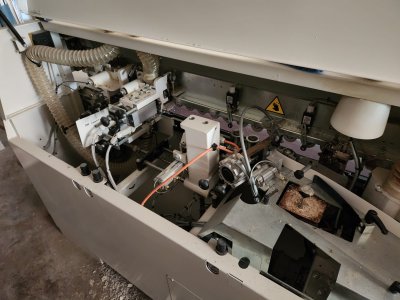

MACHINE COMPONENTS:
- 700 mm diameter usable reel tray
- Work table with front extension
Height from the ground: 900 mm
- Training mat
- Song trainer (2 spinning tops)
- Pneumatic pre-cut guillotine
- Gluing station with 1 kg tray, 170-220°C
- 2-roller rolling (pressing)
- End-cutting unit for saw-milling cutter Ø 125mm 12000 rpm
- Top/bottom flush trimming unit 12000 rpm, skid copying
- Radius scrapers
- Straight scrapers
Digital counters for adjustments (Siko type)
OTHER FEATURES:
- General power supply: 380V, three-phase, 50 Hz
- Total installed power: Allow for IN 19A
- 2.2 kW spindle motor
- 0.2 kW saw motor
- 1.4 kW glue pot
- Flush trimming (milling) motors: 2 x 0.35 kW

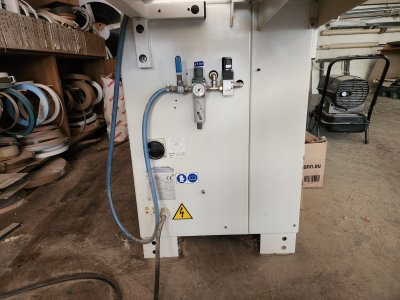

- Pneumatic supply: 8 bar, dry air
Working pressure: 6 bar Consumption: 470 l/min
- Suction: 2xØ60 2xØ80 mm
Total flow rate required: 1333 m³/h, velocity 20 m/s
- CE marking
- Lockable disconnect switch, Emergency stop buttons
Dimensions for transport (LxWxH):
3315 x 1450 x h.1300 mm
Weight: 550 kg
