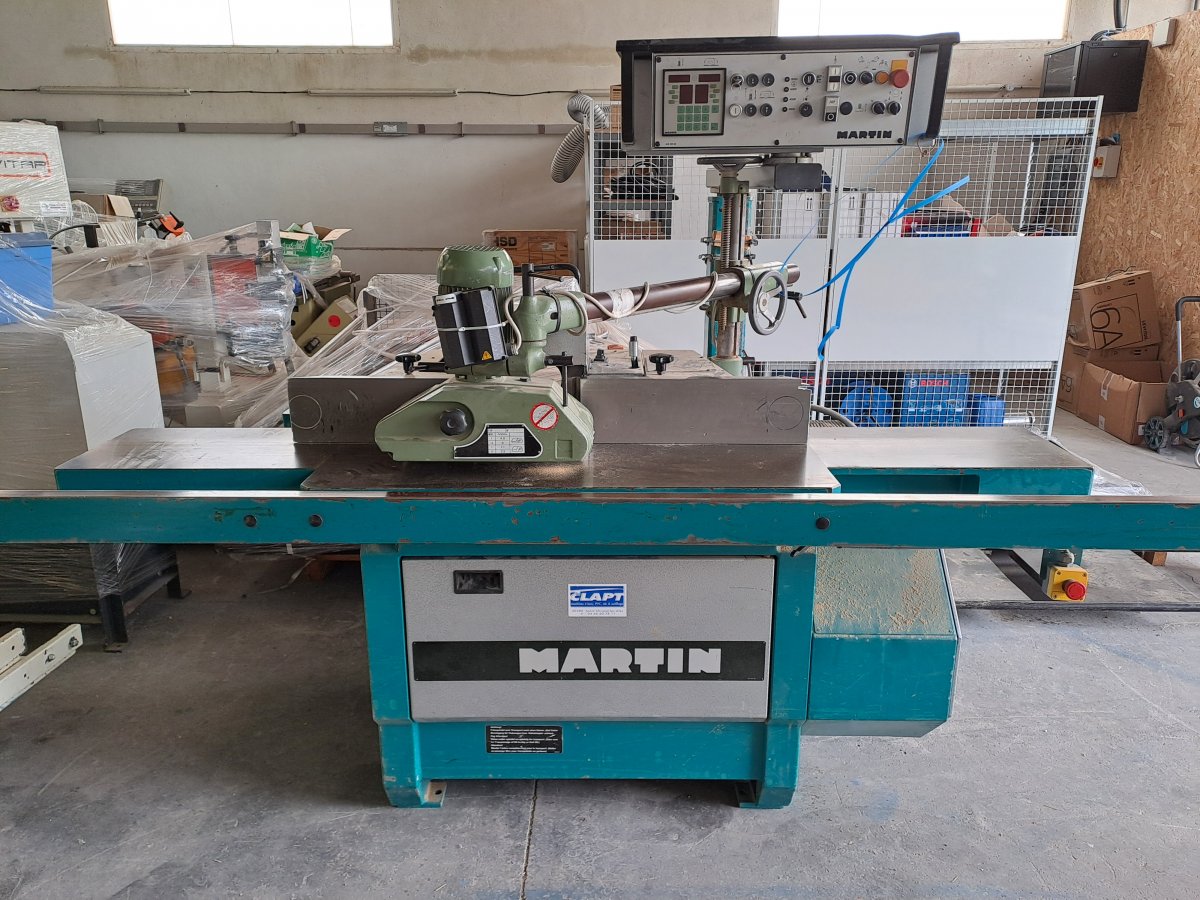

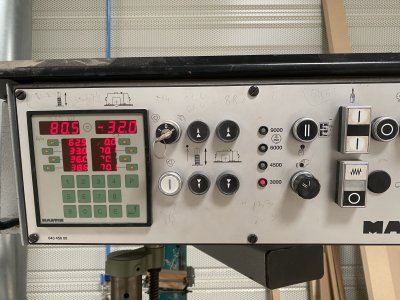

Martin T20 Digital Spinning Top
· Registration number: V 410621
Year : 2000
Condition : Used
Origin : Germany
Technical specifications:
- Motor power: 5/6 kW
- Option: 7.5 / 9.5 kW
- Height adjustment: electric
- 150 mm stroke
- Speeds: 3,000 / 4,500 / 6,000 / 9,000 rpm
- Continuously variable speeds (optional): 1,000-12,000 rpm
- Table openings: 305 / 225 / 160 / 105 / 72 mm
- Electric table opening (optional): for tool diameters min - max 70 - 220 mm
- Suction nozzle:
- 120 mm machine (20 m3 minimum at 1000 Pa)
- 120 mm guide (20 m3 minimum at 1000 Pa)
- Dust emission values according to E OIN 33893:
- Entry 0.37 mg/m3
- Output 0.29 mg/m3
- Noise emission values EN 848-1:
- No-load operation: 76.6 dB(A)
- During milling: 81.7 dB(A)
- Weight: approx. 860 kg
