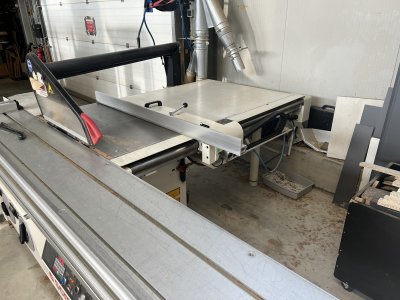

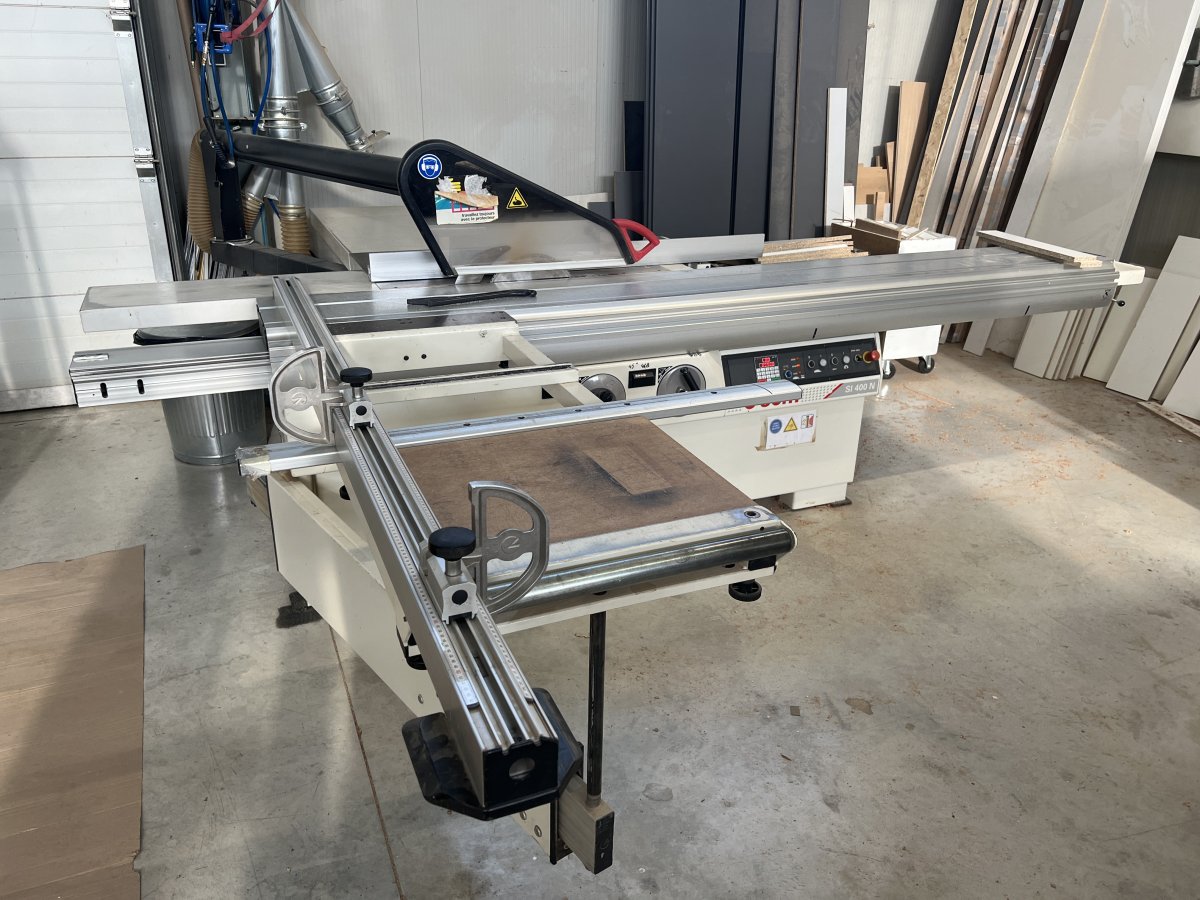

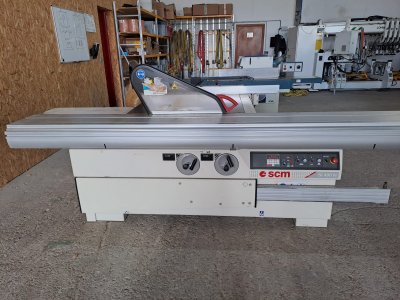

SCM SI 400N Panel Saw
· Registration number: AB/181356
· Year: 2006
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications :
-Manual lowering mechanism with display on mechanical counter
-Manual tilt with display on mechanical gauge
-Digital guide on digital display
-Maximum cutting height at 90° = 140 mm with a 400 mm blade
-Maximum cutting height at 45° = 97mm with a 400mm blade
-Blade tilt 45°
-Incisor
-Manual lifting and tilting of the blades
-Main blade rotation speed 3000/4000/5000 RPM
-Scissor blade rotation speed 8500 RPM
-Main blade motor power (S6 -40%) 7kW (9.5hp) 50Hz
-Scissor blade motor power (S6 -40%) 1.3kW (1.7hp) 50Hz
-Squaring capacities with 3200 mm trolley = 3200x3200 mm
-Cutting width with parallel guide 1270 mm
-Diameter of suction inlet on frame: 120 mm
-Diameter of suction inlet on suspended guard 100 mm
-Diameter of suction inlet on dividing knife 60 mm
