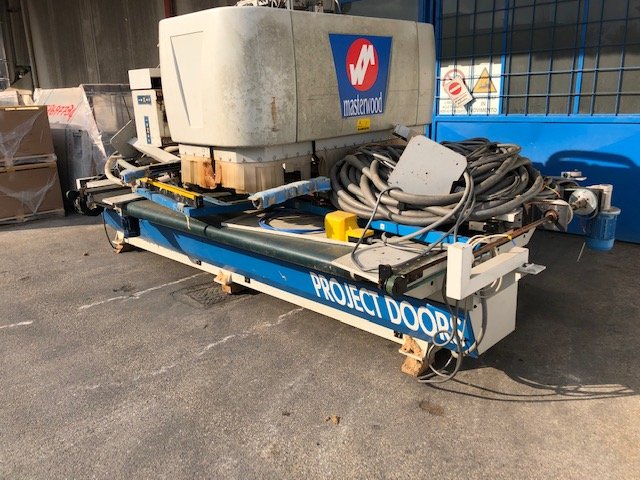

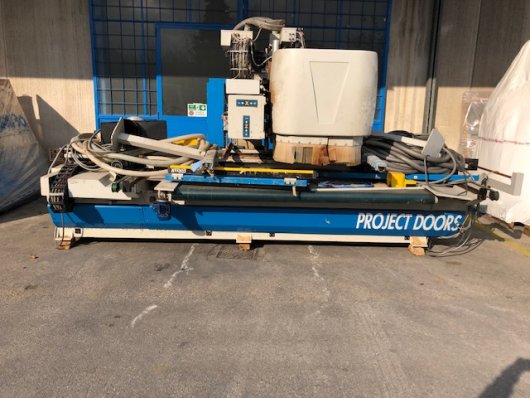

PROJECT DOORS MACHINING CENTER
· SPECIAL DOOR
· Registration number: 01070037
Year : 2001
Condition : Used
Technical specifications:
• Machining range:
- X: 2500mm Y: 1360mm Z: 100mm (part passage 120mm)
• Position A-FRONT:
- Horizontal unit with 1 2.2KW output
- 8KW solenoid chuck in ISO30
- Front rotary tool magazine, 8 positions, ISO30
• Rear position:
- Horizontal unit with 1 2.2KW output
- 14-position ISO30 rotary tool magazine on board the trolley
-Index head on X/Y plane, manually tiltable
- 8KW frequency inverter
- CE standards
- Belt-driven table
- Chip removal conveyor
- 100m³/h vacuum pump
- Windows PC with SINCRO command
