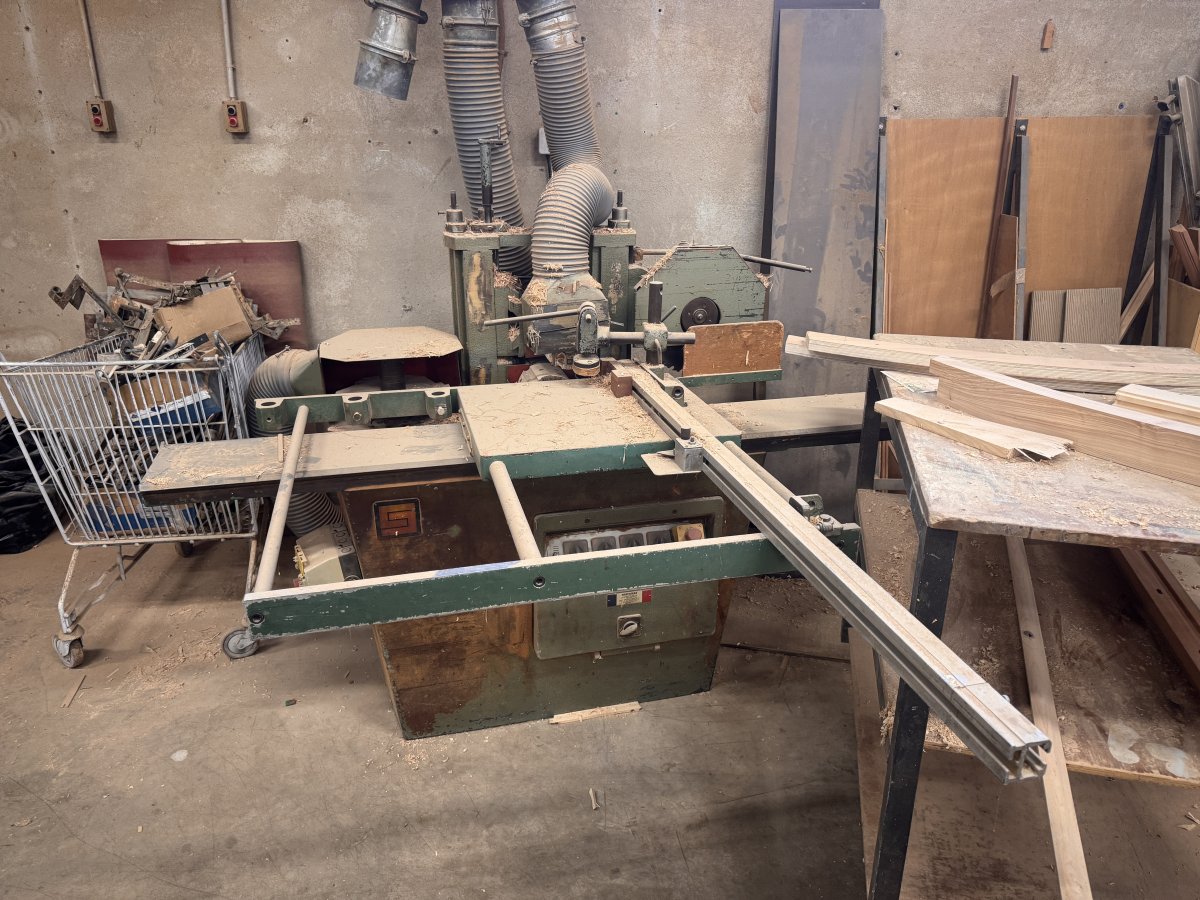

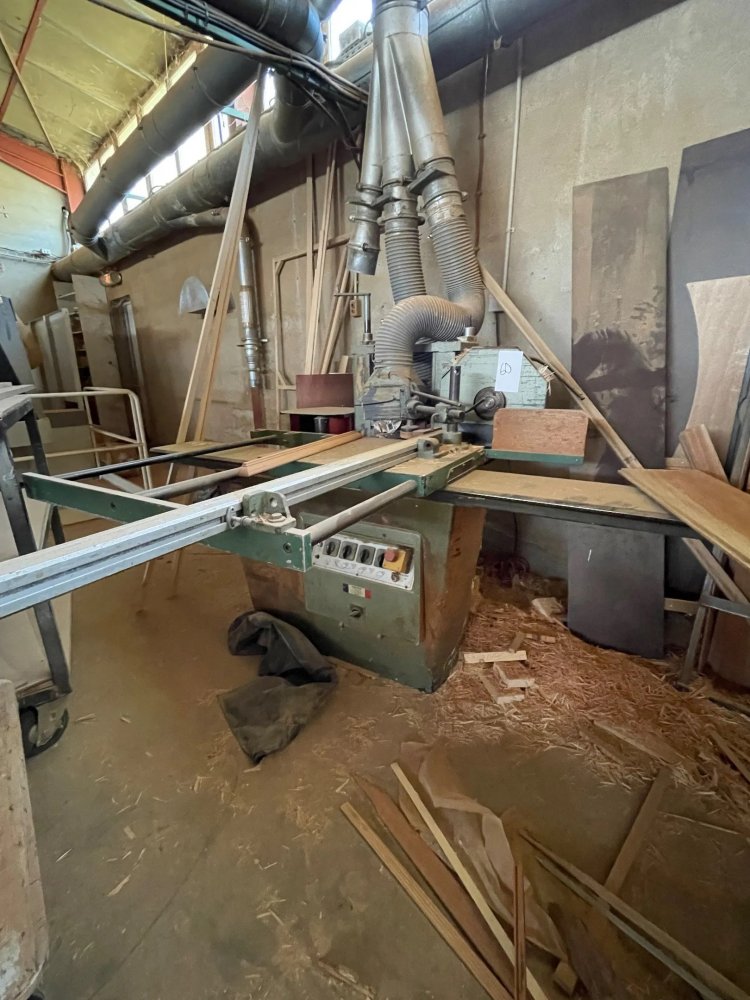

SAUTEREAU Tenoner
Condition : Used
Availability : In stock
Technical specifications :
4-shaft unwinder machine
Cast iron frame, table and slides
1 saw, 350mm diameter, 80mm length
Cutting height 100mm
Lateral movement 150mm with stop
2.5Hp/400v motor
1 Lower roll holder, diameter 155 mm, length 145 mm, height adjustable
Suction outlet diam 150mm
4 cutters, 4 trimmers
Fixed unroller laterally (lube line)
2.5Hp/400v motor, 30mm diameter shaft
1 Upper reel diameter 155 L=145
Suction outlet diam 150mm
4 cutters, 4 trimmers
Laterally adjustable roll
Advanced, or -30mm
Height adjustment
Adjustment of the 2 reels also in height (flush mounting)
2.5Hp/400v motor
1 Spindle moulder, 50mm diameter, 180mm length
Suction outlet diam 150mm
Maximum tray diameter: 350mm
5.5Hp/400v motor
Manual Y-start
Up and down movement
Service keys, reel adjustment template
Dimensions: 2.35m x 1.20m, the rule
Weight: 850 kg
