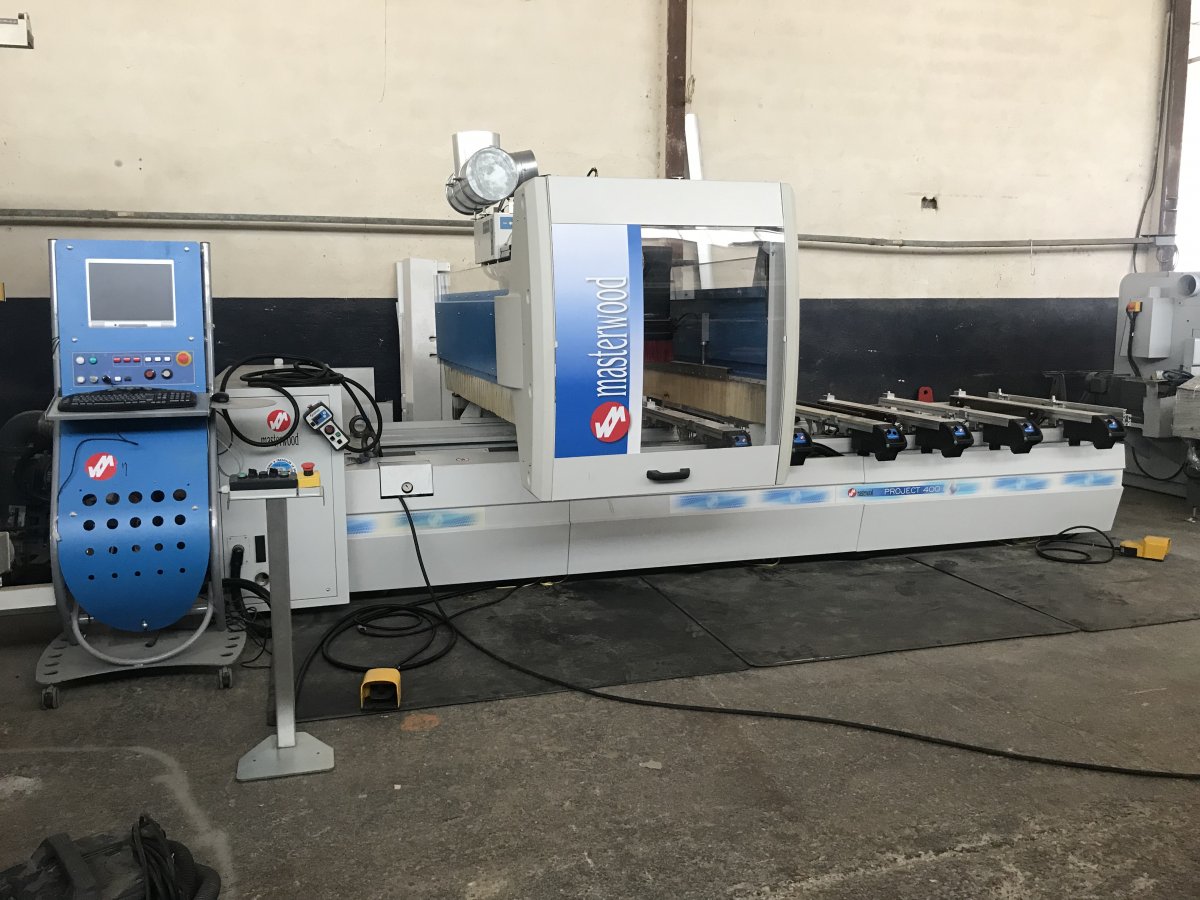

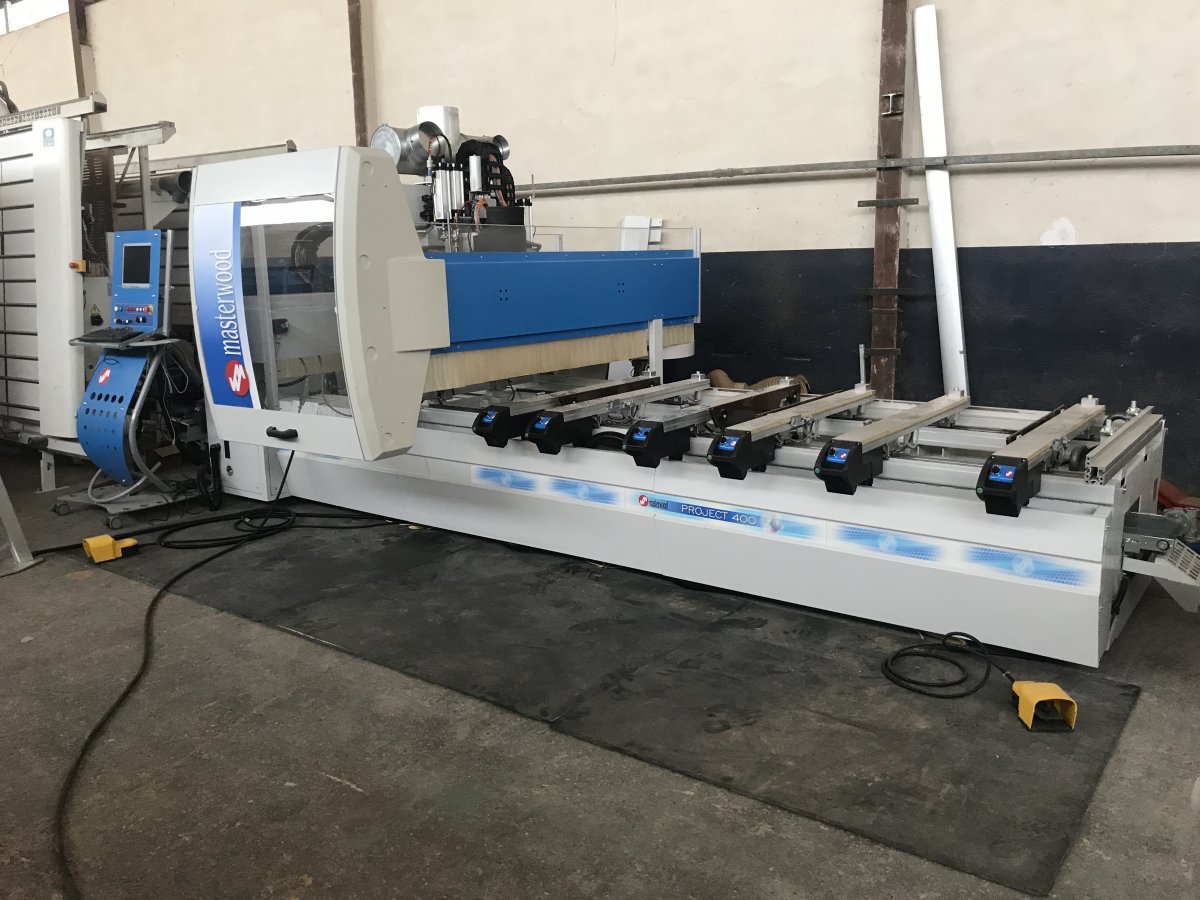

MASTERWOOD Project 400 V3L machining center
· Registration number: 08100016
· Year: 2008-2009
Origin : Italy
Condition : Used
Availability : to be determined
Technical specifications :
Maximum panel dimensions:
- Length X: 5150mm
- Width Y: 1380mm
- Thickness Z: 110mm
- Usable working area in X: 5150 mm - L version
- Euro voltage 380/400/415v 50/60hz
- Drilling head with 19 chucks
- Saw for longitudinal incisions
- 9 kW electro-chuck - HSK 63F
- Axis C
- 12-position tool magazine on board trolley HSK 63F
- Horizontal milling unit 2.2kW in rear position
- Mobile control panel
- Multilingual PC
- 9 kW frequency inverter
- Tubeless table

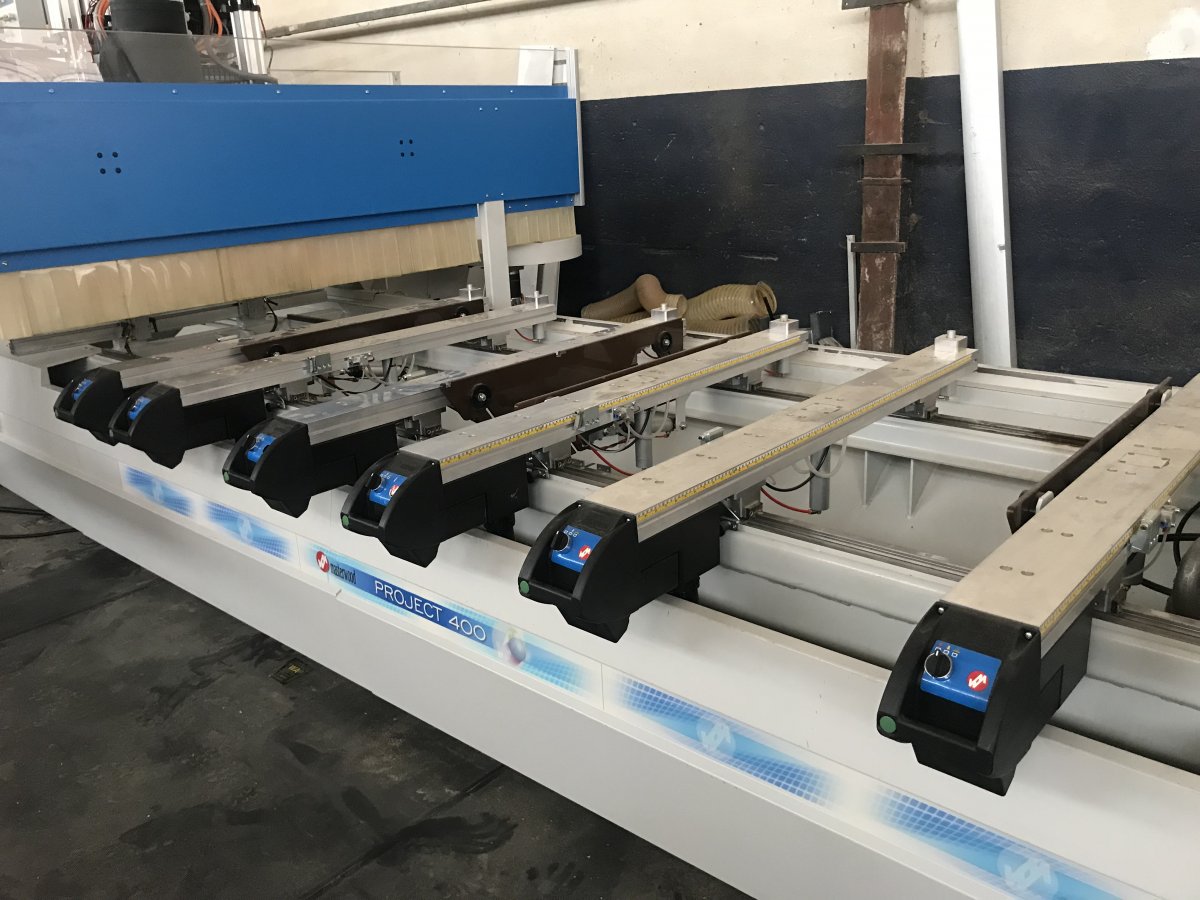

- 8-bar tubeless table
- 2 stops per bar
- 8-bar table pre-configured for clamping with vises - L version
- 100 m³/h STD vacuum pump
- Masterwork
- Mastercabinet
- CE safety standards kit, version L
- 8 rear stops, 2 side stops for plywood panels
- 2 vacuum pumps of 100m3/h
- Teleportation remote control with screen
- Chip mat for version L
- "K" head incl. manual with 1 outlet -10^/90^ blade d=180, milling cutter- HSK 63F
- 12 suction cups 114x140mm - H 100 ( to be checked)
- 12 suction cups 125x75mm - H 100 longitudinal ( to be checked)
- 12 suction cups 140 x 114 x 100 mm schmalz ( to be checked)
- Chip deflector (clockwise rotation) (to be checked )
- Instruction booklet in French
