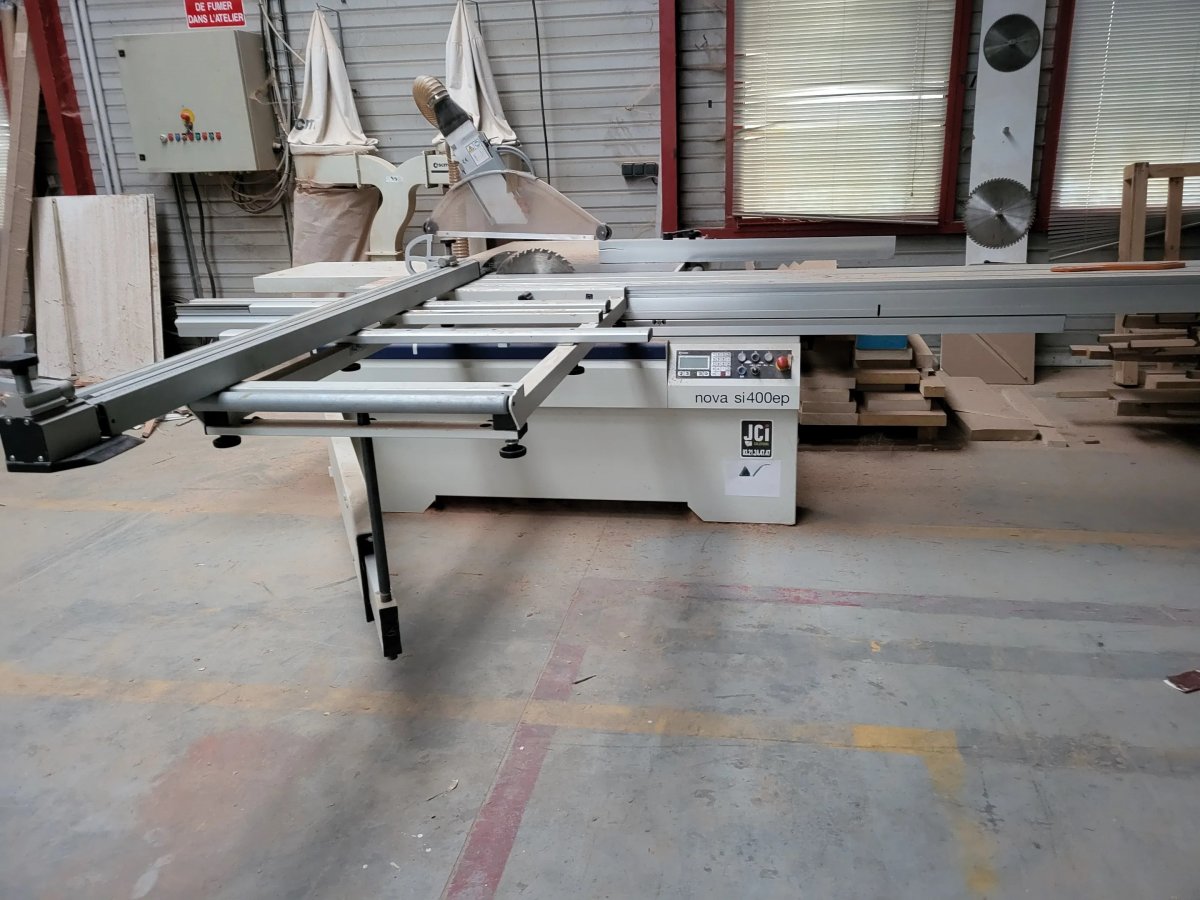

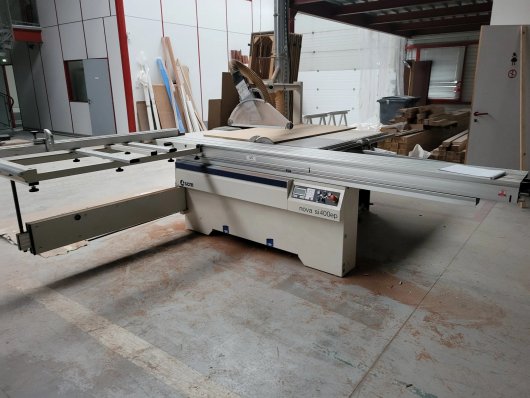

SCM format saw type NOVA SI 400ep
· Registration number: AB00006204
· Year: 2018
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications:
-Sliding carriage length: 3200 mm
-Up, down and tilt of the digital blade group
-Squaring frame for quick positioning of the guide in angled cuts
-Extension of the table at the exit
-Manual parallel guide, with position reading on a metric scale, sliding on a Ø40 mm steel bar and micrometric adjustment
-Cutting width of 1270 mm on parallel guide
-Direct start of the main engine with buttons
-Scoring unit with independent motor, external adjustment and quick blade repositioning stops
-Emergency stop button on the front of the machine
-Emergency stop button on the parallel guide side
-Magnetic-thermal protection
-Partially retractable 'suspended' type blade guard with integrated suction, Ø80 mm suction inlet
-Automatic motor brake on main blade
-Lockable main switch
Maximum cutting height at 90° = 140 mm with a 400 mm blade
Maximum cutting height at 45° = 97mm with a 400mm blade
Blade tilt 45°
Manual blade lifting and tilting
Main blade rotation speed 3000-4000-500 RPM
Inciser rotation speed 8500 rpm
Squaring capacities with 3200 mm trolley = 3200x3200 mm
Cutting width with parallel guide 1270 mm
Suction inlet on frame Ø120 mm
Suction inlet on suspended guard Ø80 mm
Suction inlet on dividing knife Ø60 mm
Air intake speed 20 m/sec
Air intake consumption 1200 m³/h
