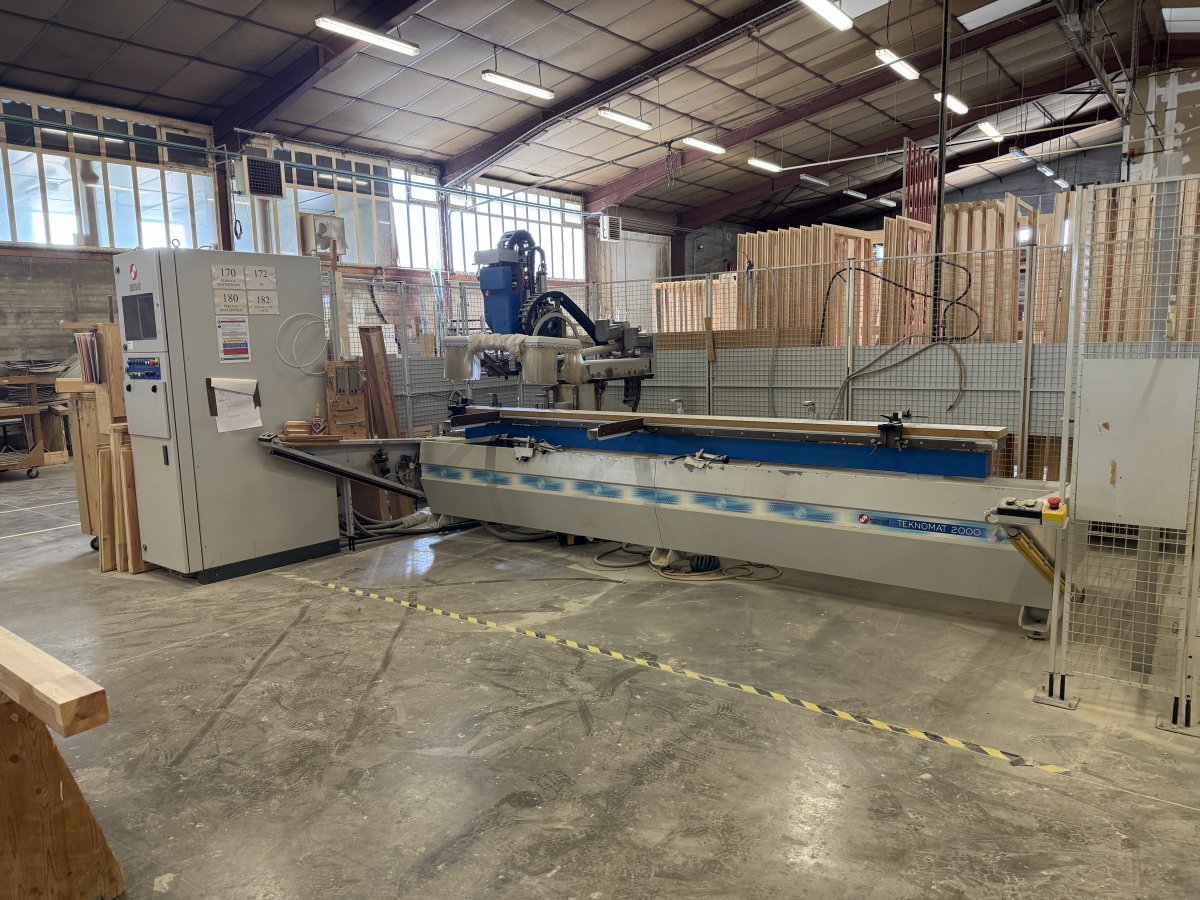

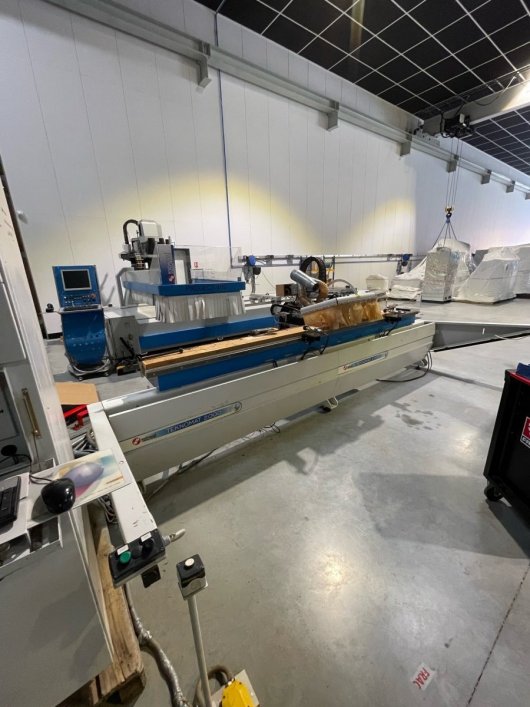

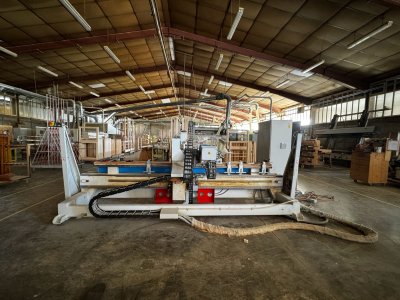

MASTERWOOD Teknomat 2000TF File Notching Machine
· Registration number: 07010034
· Year: 2007
Origin : Italy
Condition : Used
Availability : In stock
Composition :
Group: 1-2 on digital tilting stand -7° to 90°
1st high-frequency electro-spindle milling unit, 18000 rpm, 3.3 kW
2nd group of 0.75 kW single and double electric chuck drilling machines. Single-plug screw system. Double-plug screw system.
Technical specifications:
Machining capacity:
X:3000mm
Y:150mm
Z:350mm
- Table dimensions: 3000 mm usable
- Controls on a separate cabinet
- Masterwood MW313 Software
- Program provided: for ANUBA hinge (3 models)
- Program for mounting 2 closely spaced ANUBA hinges
- Program to perform a single drilling
- Milling program for the lock housing and for the hanger
- Speeds:
70 m/min on the U-axis
40 m/min on the V-axis
15 m/min on the W axis
- Digital up, down, and tilt
- Digital counter on the control panel
- Specific data: safety barrier material, infrared beam on the facade
- Suction diameter: 1 x 200 mm centralized
- Ampere: 20
- Machine dimension: 5900 mm x 3300 mm, cabinet 1200 mm x 600 mm
- Weight: 1900 kg
