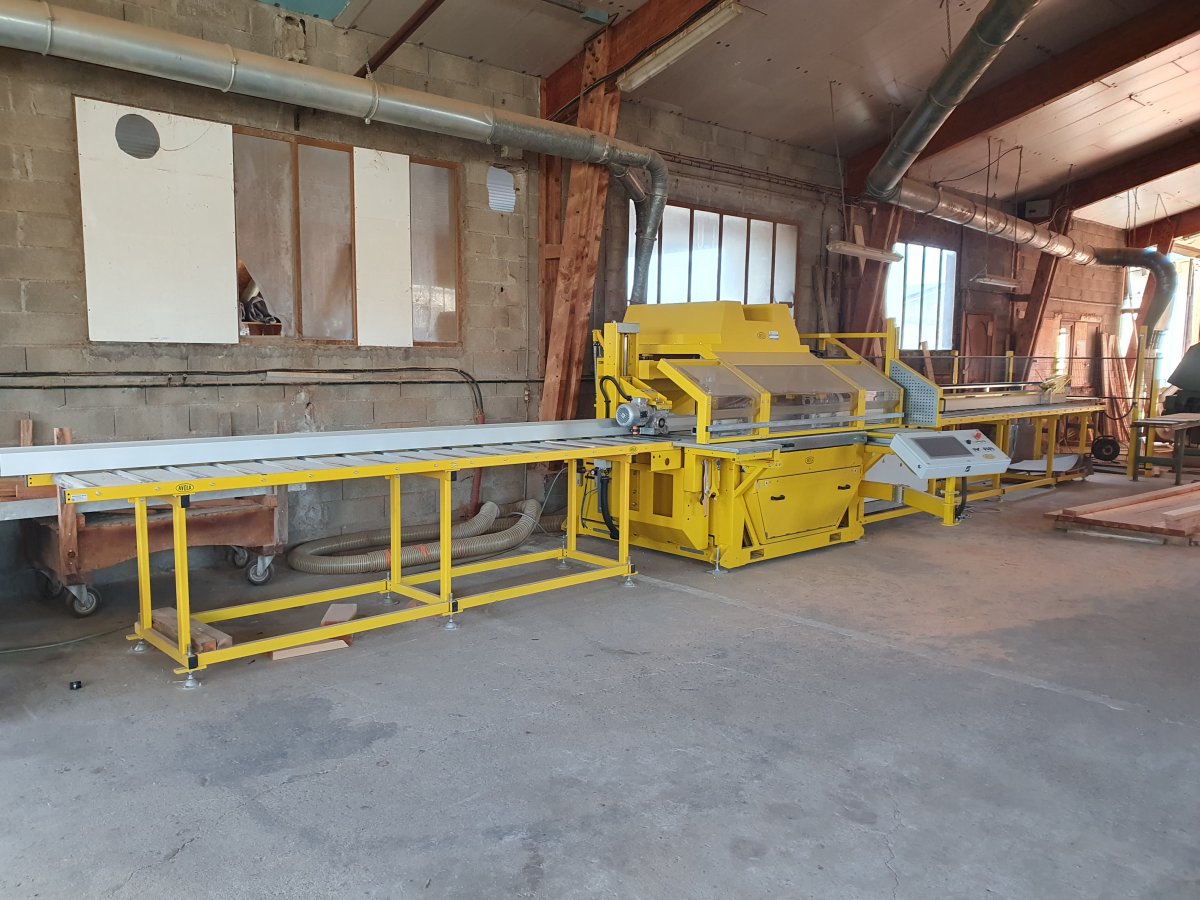

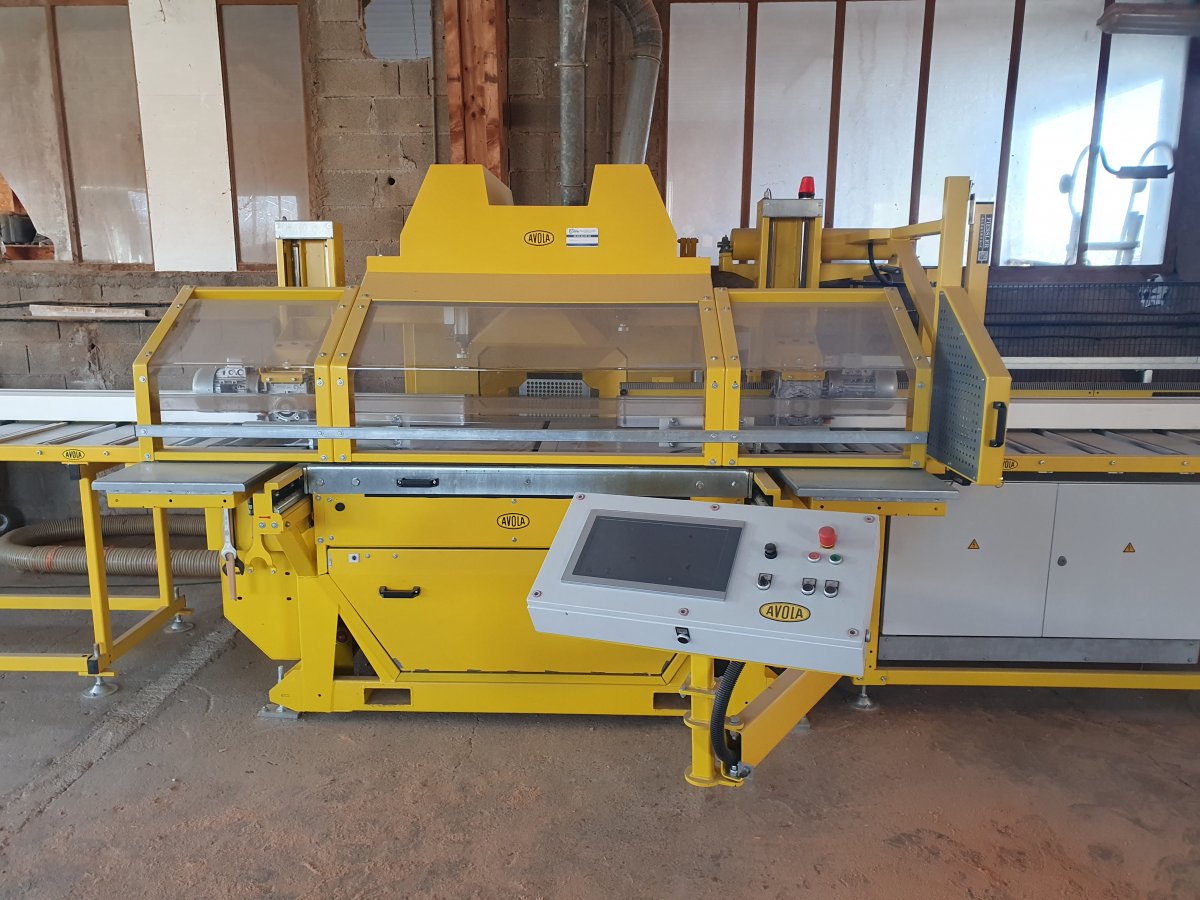

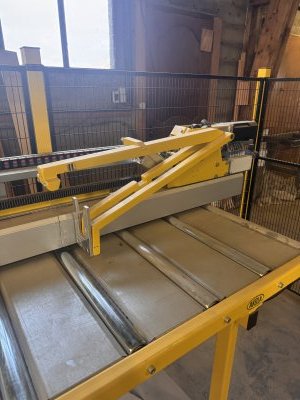

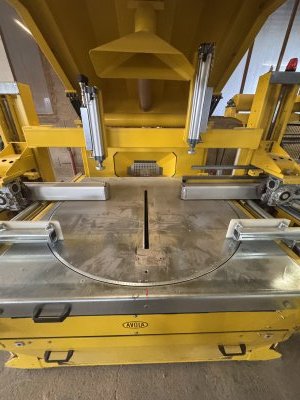

AVOLA GAMA 65V3 Chainsaw
· Employee ID: 035-150869
Year : 2023
Origin : Germany
Condition : Used
Technical specifications:
12 kW propulsion motor - directly
Engine speed 1/min - 3000
Electric saw with 90-30° cutting angle above the servo motor
Laser cutting indicator
Cutting heights: 90°/245mm - 45°/164mm - 30°/113mm
650 mm carbide saw blade
125/160mm fittings
Rotating platform 0-270° above the servo motor
The horizontal return point of the material on the right - on the left
Pneumatic folding device operated by two-hand control
Length measurement using material valves, controlled by a servo motor
Delivery lengths Measuring system/roller tracks: 3m-14m
Machine cover with side PVC protective curtains
Machine bottom coating
Pneumatic clamping cylinder, left - right
Machine table approx. 400 mm with pneumatic braking device
Height adjustment of the saw on a mechanical stop system with a ladder
Included options:
LiVoMat Multi-length 3m without rolls without aluminum joints
Aluminum stop 120 x 120 3m
Aluminum stop 120 x 120 5m
Safety cover
Dual (duo) power supply system
sensor control, stepless speed control, sensors
regulate the starting and stopping of the feed rollers
2 Discharge Tables L = 320 mm
Safety light curtain
2 Protective Covers
GAMA 65V PNEUMATIC SIDE ADVANCE
The lateral movement of the machine table is pneumatically assisted, for the Komi cut
Rotating photoelectric sensor
R600 F 4M roller conveyor on the left
R600 F 3M roller conveyor on the right,
1200 x 1500 mesh panel
1500 x 1500 mesh panel
Linear support 60 x 60 x 1660
Compass BT
