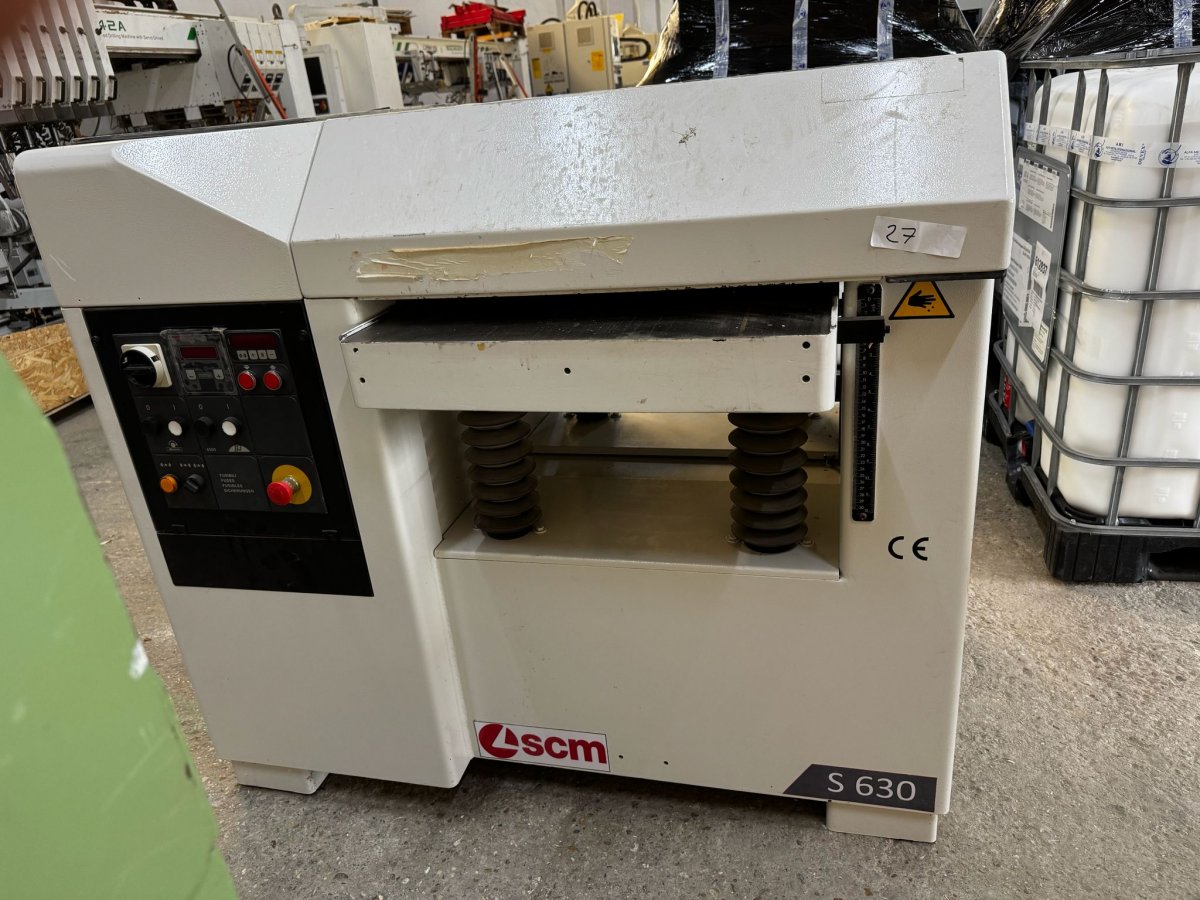

SCM S630 E Planer
Registration number : AB/154620
· Year: 2006
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications :
Usable planing width: 630 mm
Working thickness: 3.5 to 300 mm
Minimum part length: H 260 mm
Maximum material removal per pass: 8 mm
Table dimensions : 640 × 1000 mm
Variable feed rate : 4 to 20 m / min ( variable speed drive / inverter )
Height adjustment : motorized drive with screw guidance ( depending on version )
Multiple drive rollers with adjustable pressure
Planing group
Shaft : Ø 120 mm
Number of knives: 4
Rotation speed: H 4,500 rpm
Tree type : 4-iron TERSA
Main engine power : 7 kW (10 hp)
