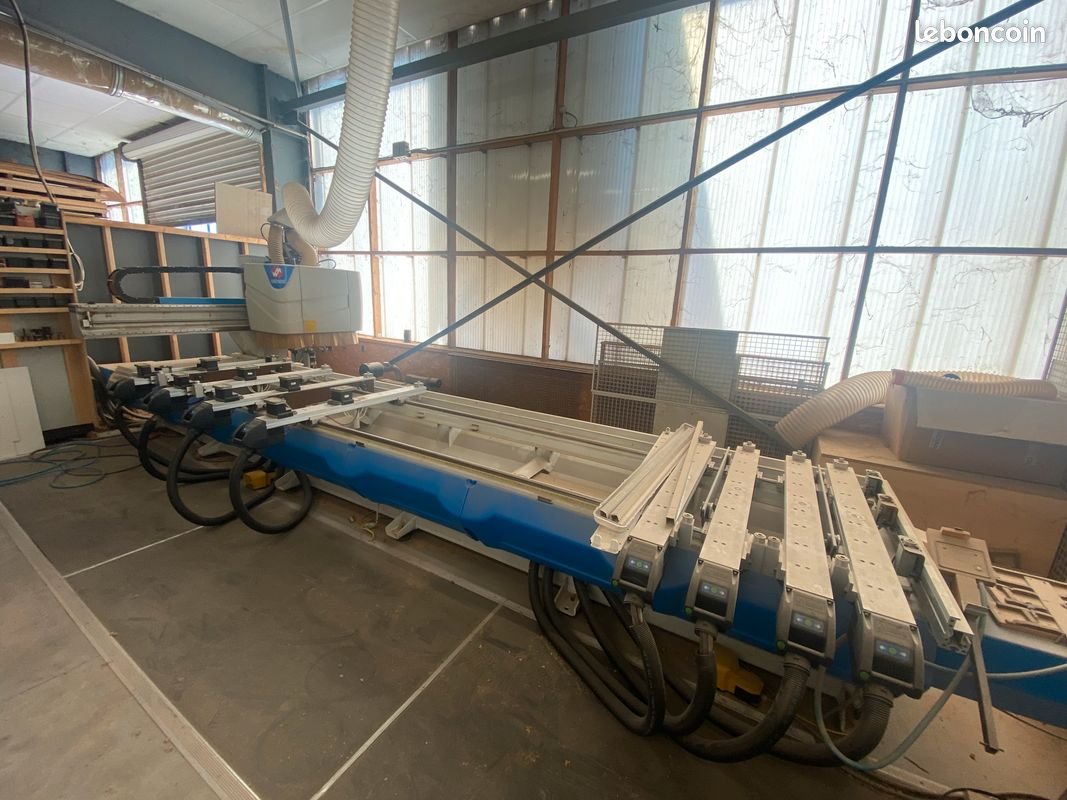

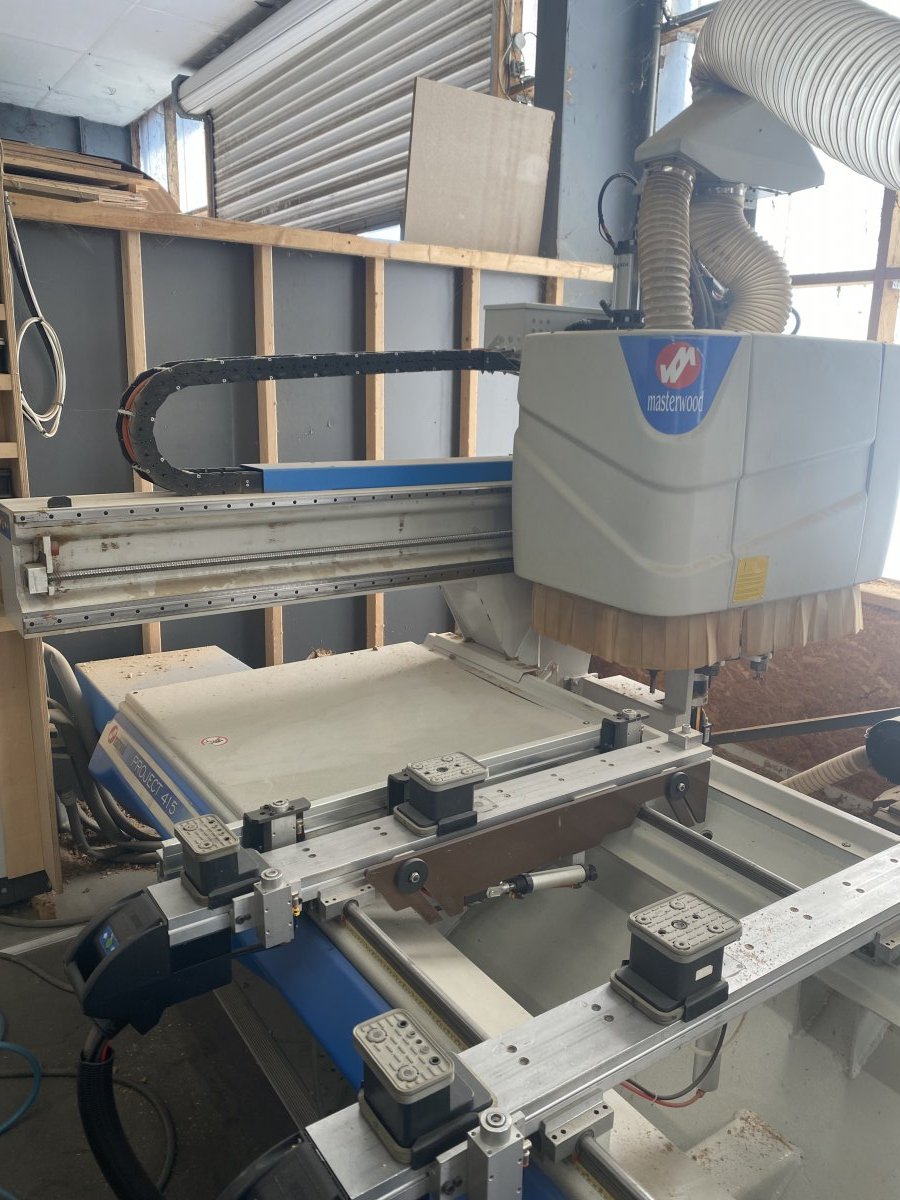

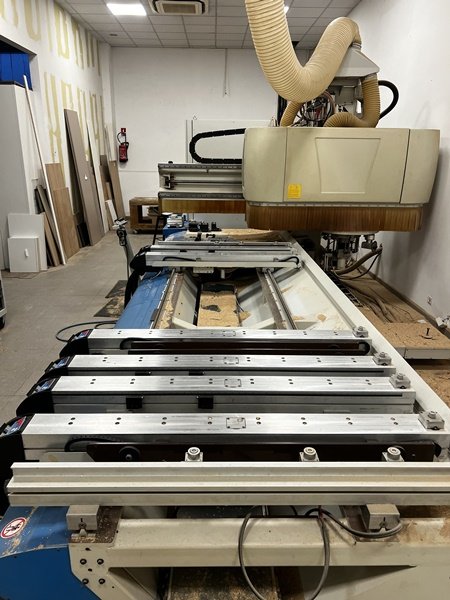

MASTERWOOD Project 415L machining center
· Registration number: 05100045
· Year: 2005
· Origin: Italy
· Condition: Used
· Availability: in stock
Technical characteristics :
- Useful working area in X: 4970mm Y: 1390mm Z: 110mm
- 16-chuck drilling head
- 400v 50hz euro power supply
- 8 kW electro-spindle - ISO30
- 8 kW frequency converter
- Saw for longitudinal incisions
- 1-output horizontal milling unit 2.2 kW
- 8-position tool magazine. ISO30 trolley edge
- Support plate adaptation for index heads
- CE safety standards version L

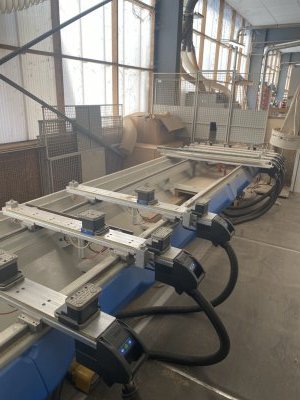

- Work table with bars and suction cups
- Pneumatic locking table
- 2 stops per bar
- 8 x suction cups 114x140mm -H 100 (to be confirmed)
- 8 x suction cups 125x75mm - H 100 longitudinal (to be confirmed)
- 8 x suction cups 120x50mm - H 100 longitudinal (to be confirmed)
- 8 front stops, 2 additional side stops
- 250 m3/h vacuum pump
- CN on external PC (PC included)
- 17" TFT screen
- PC and instructions in French
- Mastercabinet level 1
