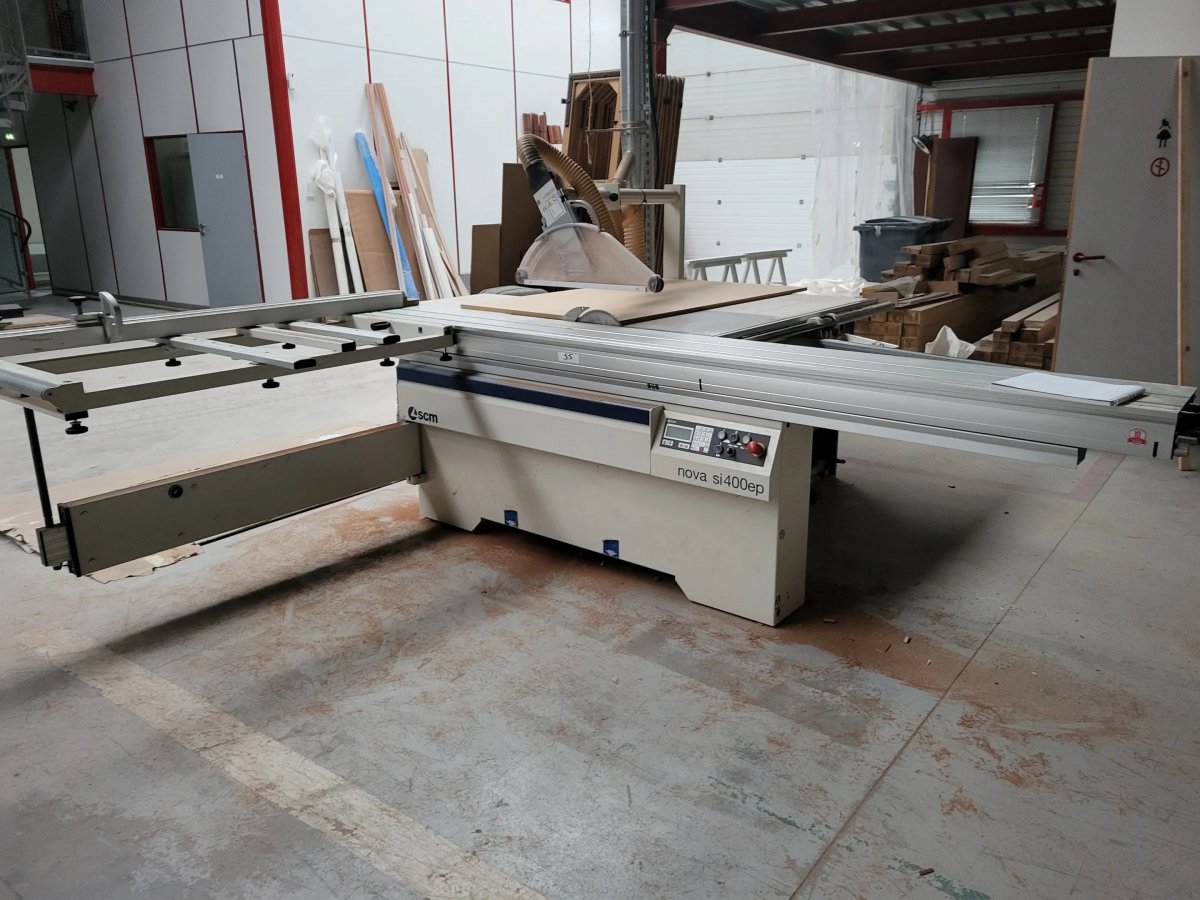

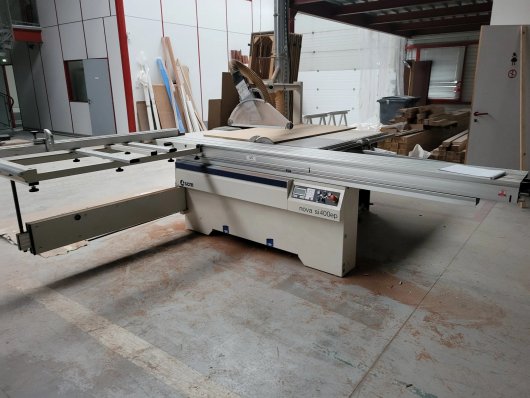

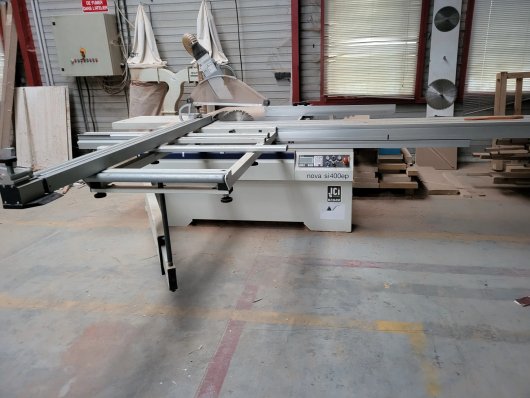

SCM format saw type NOVA SI 400ep
· Registration number: AB00017385
· Year: 2021
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications:
Sliding carriage length: 3200 mm
Lifting and tilting of the blade assembly using flywheels, and visualization of the blade assembly tilt using a mechanical numerator
Squaring frame for quick positioning of the guide in angled cuts
Table extension at the exit
Manual parallel guide with position reading on a metric scale, sliding on a Ø40 mm steel bar and micrometric adjustment
Cutting width of 1270 mm on parallel guide
Direct start of the main engine with buttons
Scoring unit with independent motor, external adjustment and quick blade repositioning stops
Emergency stop button on the front of the machine
Emergency stop button on the parallel guide side
Magnetothermal protection
Partially retractable 'suspended' blade guard with integrated suction, Ø80 mm suction inlet
Automatic motor brake on main blade
Lockable main switch
Maximum cutting height at 90° = 140 mm with a 400 mm blade
Maximum cutting height at 45° = 97mm with a 400mm blade
Blade tilt 45°
Manual blade lifting and tilting
Main blade rotation speed 3000-4000-500 RPM
Inciser rotation speed 8500 rpm
Squaring capacities with 3200 mm trolley = 3200x3200 mm
Cutting width with parallel guide 1270 mm
Suction inlet on frame Ø120 mm
Suction inlet on suspended guard Ø80 mm
Suction inlet on dividing knife Ø60 mm
Air intake speed 20 m/sec
Air intake consumption 1200 m³/h
