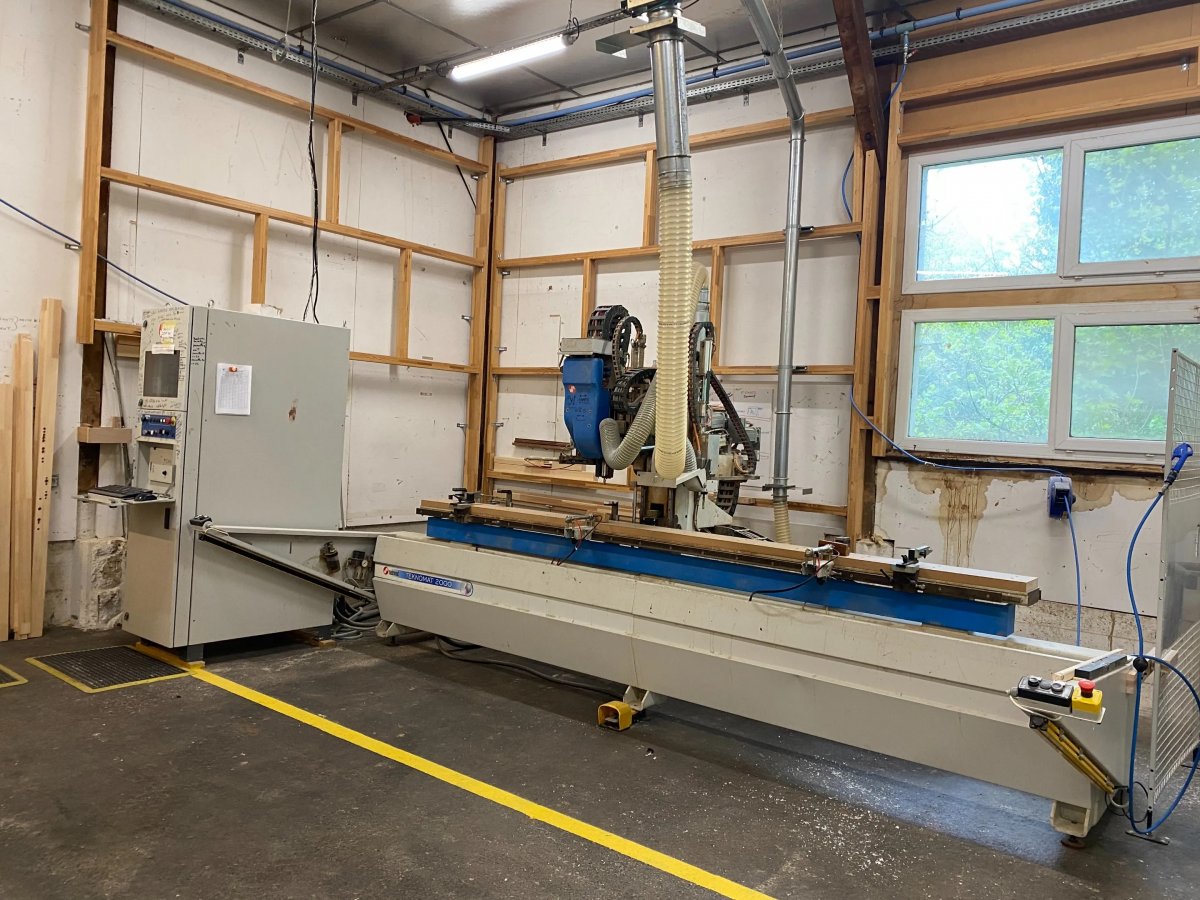

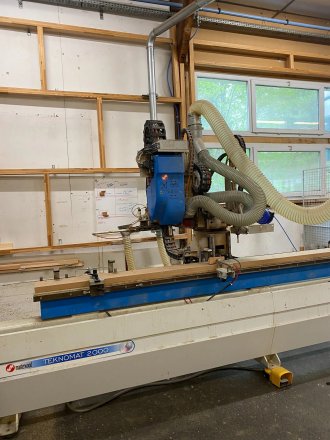

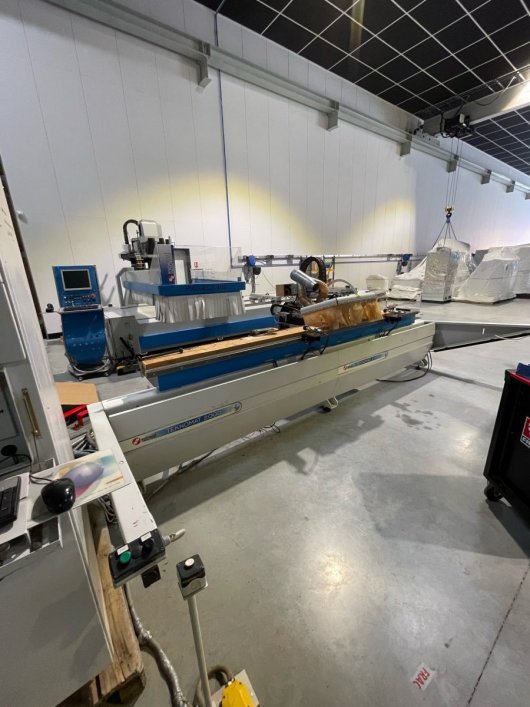

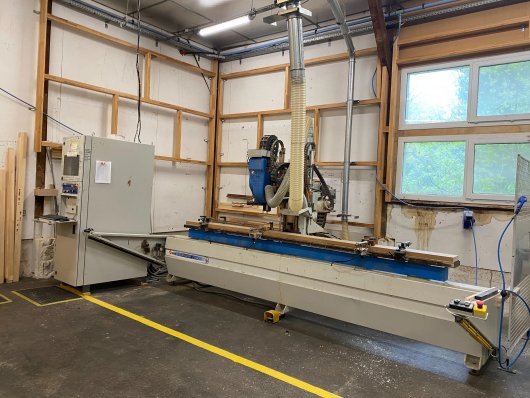

MASTERWOOD Teknomat 2000TF Router
· Registration number: 0600025
· Year: 2006
· Origin: Italy
· Condition: Used
· Availability: in stock
Technical characteristics :
Machining capacity:
X:3000mm
Y:150mm
Z:350mm
Group: 1-2 on digital tilt stand -7° to, 90°
Group: 3 on pneumatic tilting support 0-90°
1st ANUBA filing group Diameter 13mm Digital tilt -7° to, 90°
2nd milling group high frequency electro chuck 18000 rpm 3.3 kW Digital tilting -7° a, 90°
3rd milling group high frequency electro chuck 18000 rpm 3.3 kW Pneumatic tilting 0-90°
- Table dimensions: 3000 mm useful
- Control on separate cabinet
- Masterwood MW313 Software
- Program provided: for ANUBA hinge (3 models)
- Program for the assembly of 2 ANUBA hinges close together
- Program to perform a single drilling
- Shutters program
- Lock housing and hanger milling program
-Speeds:
70 m/min in U axis
40 m/min in V axis
15 m/min in W axis
- 13mm double Anuba included
- Two front panel supports
- Digital rise, fall and incline
- Digital counter on the control panel
- Special data: safety material barrier, infrared beam on the facade
- Suction diameter: 2x100mm
- Ampere: 25.5
- Machine dimensions: 5900 mm x 3300 mm, cabinet 1200 mm x 600 mm
