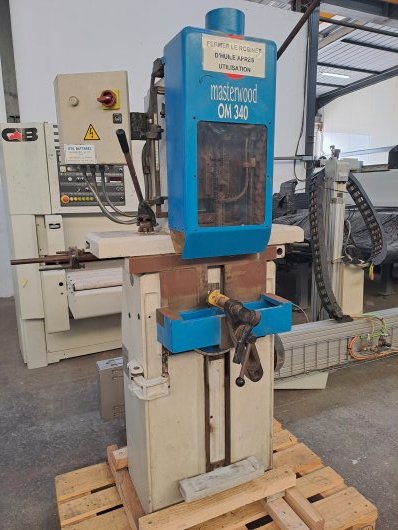

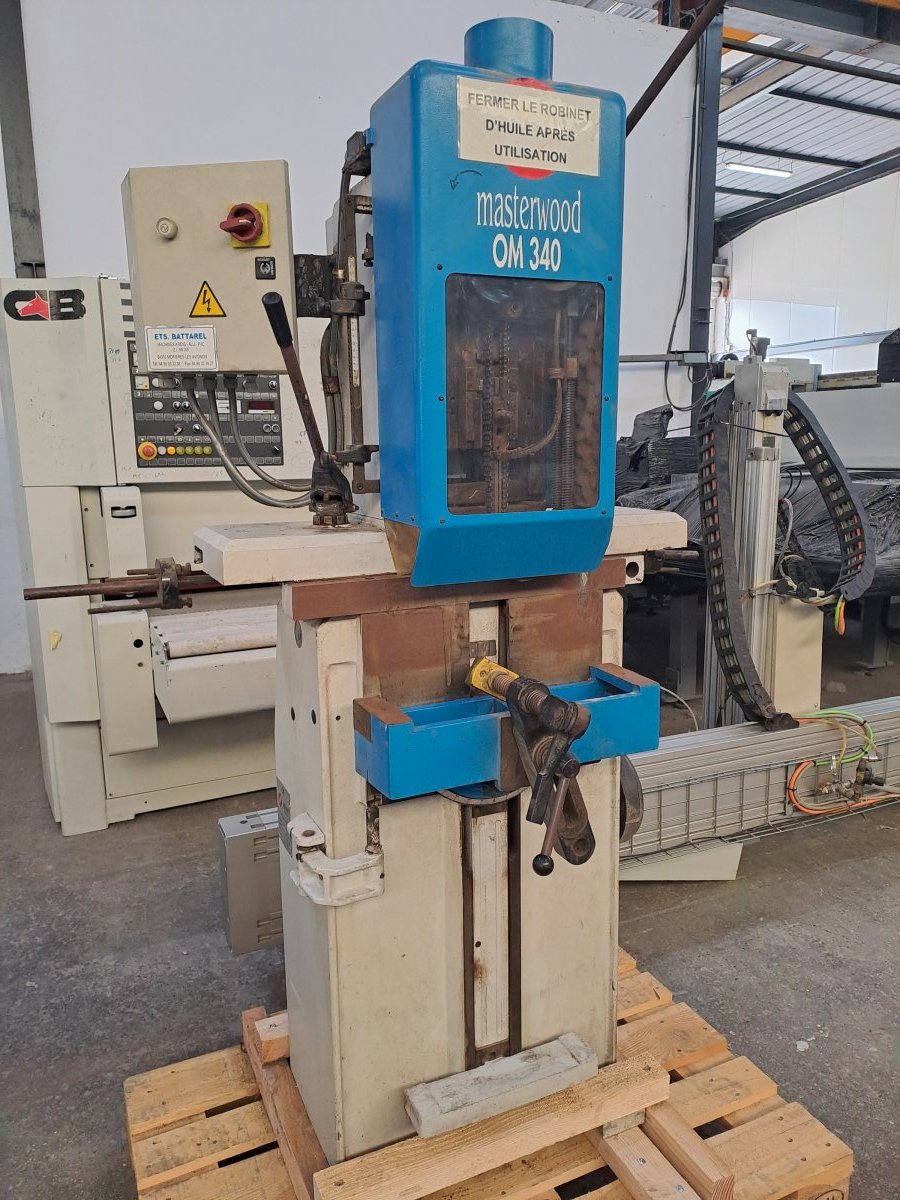

MASTERWOOD OM340 chain mortiser
· Registration number: 01070140
Year : 2001
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications :
Maximum machinable height of the solid workpiece: 180 mm
Minimum/maximum machinable height of the assembled chassis: 700/980 mm
Vertical operator group
String: std
Manual vertical travel: 150 mm
Pneumatic vertical stroke: 150 mm (optional)
Longitudinal stroke: 300 mm
Transverse stroke: 80 mm
Mortise motor: 2.2 kW
Work table
Dimensions: 140 x 470 mm
Extension dimensions (2 x L = 1200 mm): std
Tilt: ± 45°
Manual part locking: std
Pneumatic workpiece locking: option
Facility
Maximum installed electrical power: 2.23 kW
Pneumatic circuit operating pressure: 6 bar (optional)
Pneumatic circuit operating pressure: 120 mm
Top suction inlet: 25.30 m/sec
Pneumatic tightening: 6 bar
Net weight: 340 kg
