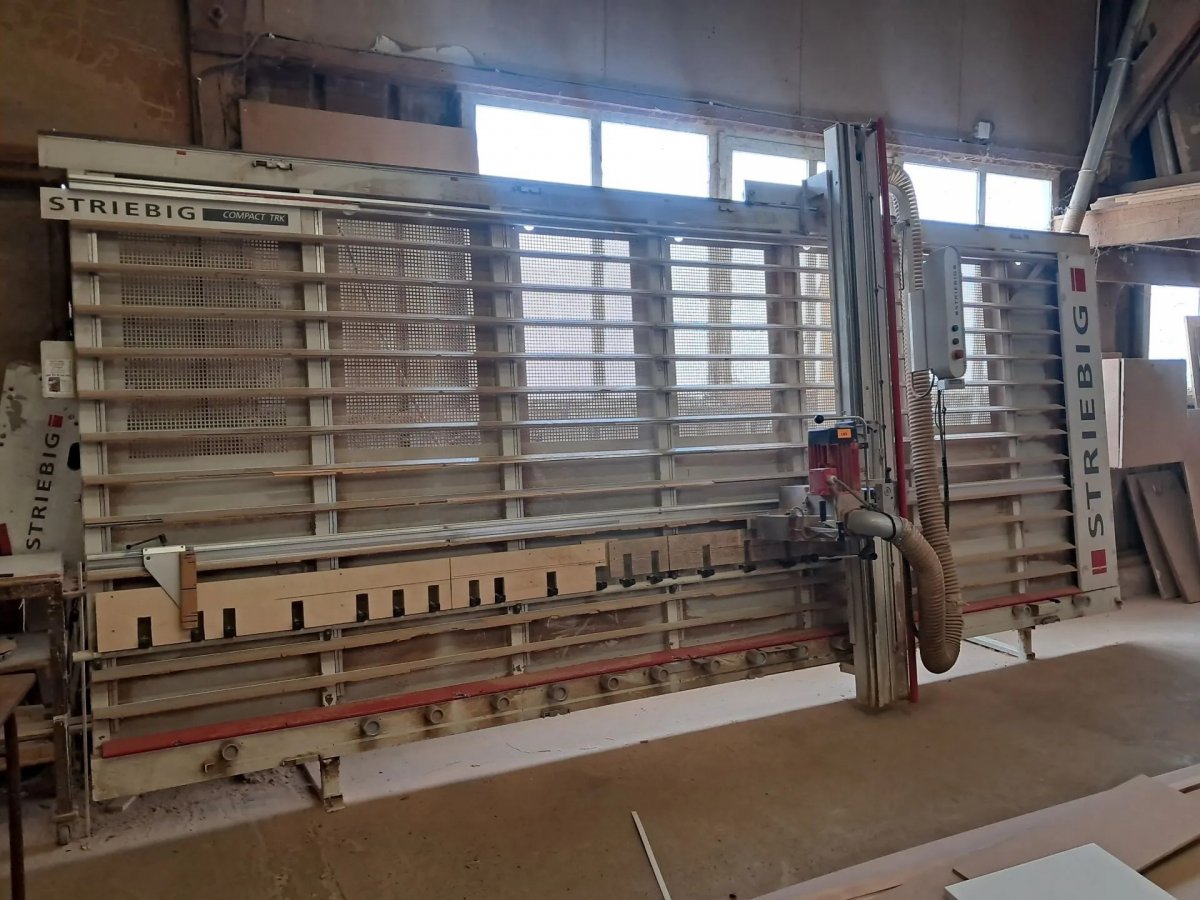

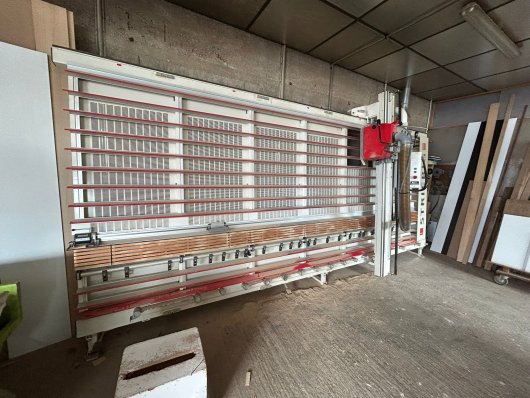

STRIEBIG COMPACT TRK 5207 C Panel Saw
· Registration number: 33740
Year : 2003
Origin : Switzerland
Condition : Used
Availability : In stock
COMPACT
Entering the era of quality and precision.
COMPACT is the version that allows you to enter the realm of precision and quality in panel saws
STRIEBIG verticals. The COMPACT is characterized by flexible and cost-effective use. It is the combination
A perfect balance between ergonomics and functionality with a high-quality finish.
-The saw frame:
Manufacturing of parts with a precision of 1/100 mm
The welded and robust frame of the saw is extremely torsionally rigid.
Support surface with aluminum supports (and plastic inserts) that automatically retract
Up to 17 ball bearing support rollers
Intermediate aluminum supports along the entire length, retractable in 2 parts (except for models 4…)
Support for small wooden parts along the entire length, integrated into the retractable support surface
-Saw bar:
Solid and durable one-piece steel construction

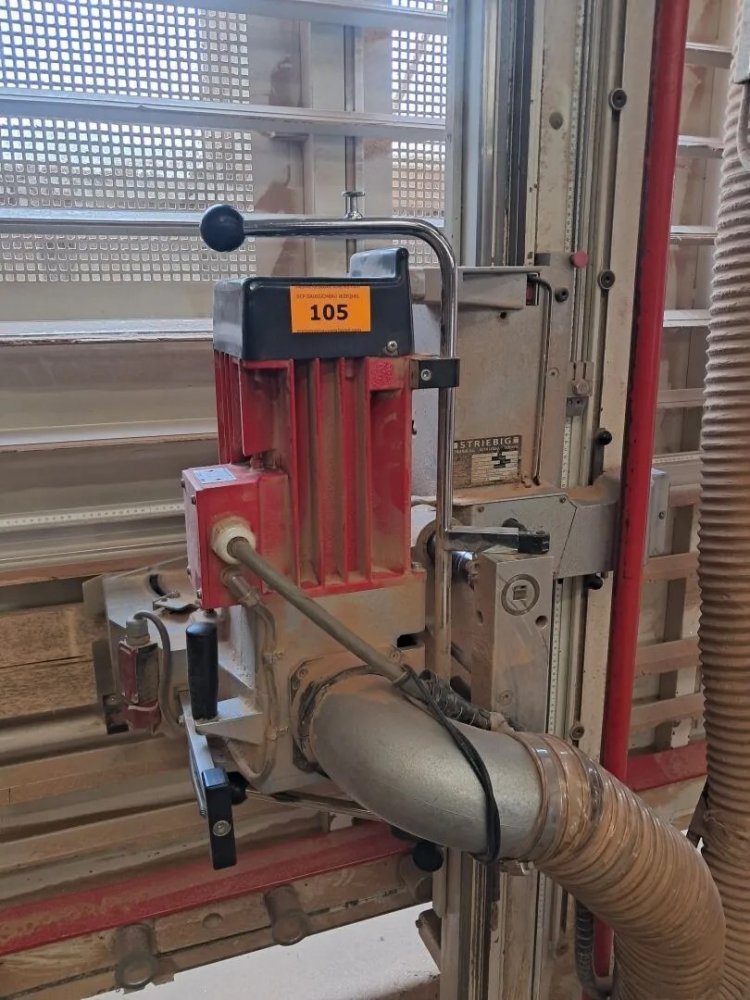

-Sawing unit:
Functional and ergonomic design
The robust bearing support of the motor carriage ensures optimal cutting precision
Powerful 3.9 kW (5.3 HP) motor for smooth, vibration-free operation
Carbide saw blade Ø 250/30 mm
Adjustable depth from 9 to 13 mm
"Super-silent" system to reduce blade noise
Electromagnetic motor brake
-Design, ergonomics:
Specific design of STRIEBIG products
Intuitive and logical use
Technical specifications:
-Maximum cutting width: 4600 mm
-Max. horizontal cutting height: 1958 mm
-Max. cutting height (vertical): 2070 mm
-Maximum working thickness: 60 mm
-Saw blade diameter: 250 mm
-Blade bore: 30 mm
-Lower support: fixed rollers
-Material support: aluminum slatted frame with plastic coatings
-Small parts support: Yes
-Measurement system: scale
-Saw head tilt: manual
-Fixing: self-supporting
-Incising unit: with blade
-Weight approx.: 700 kg
-Motor power: 3 kW
-Suction diameter: 2 x 100 mm
