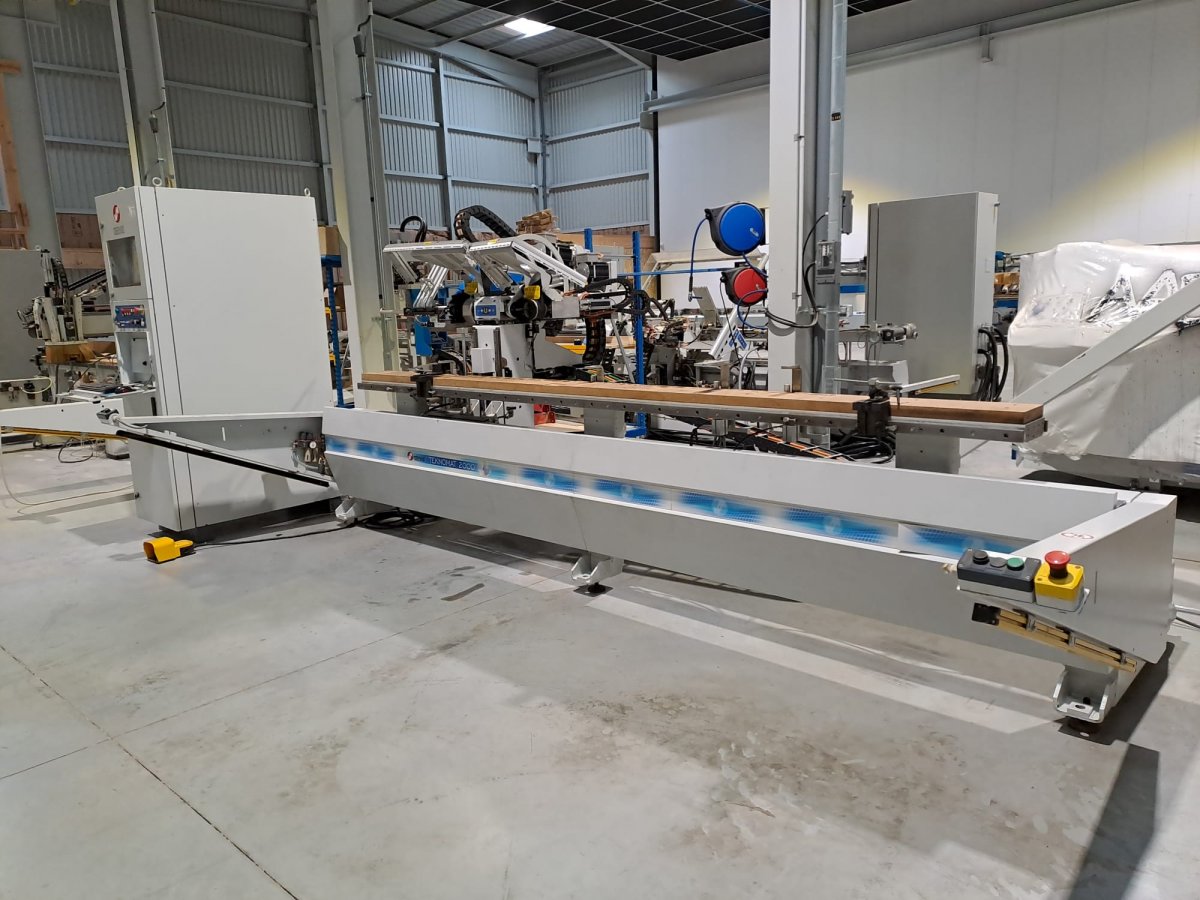

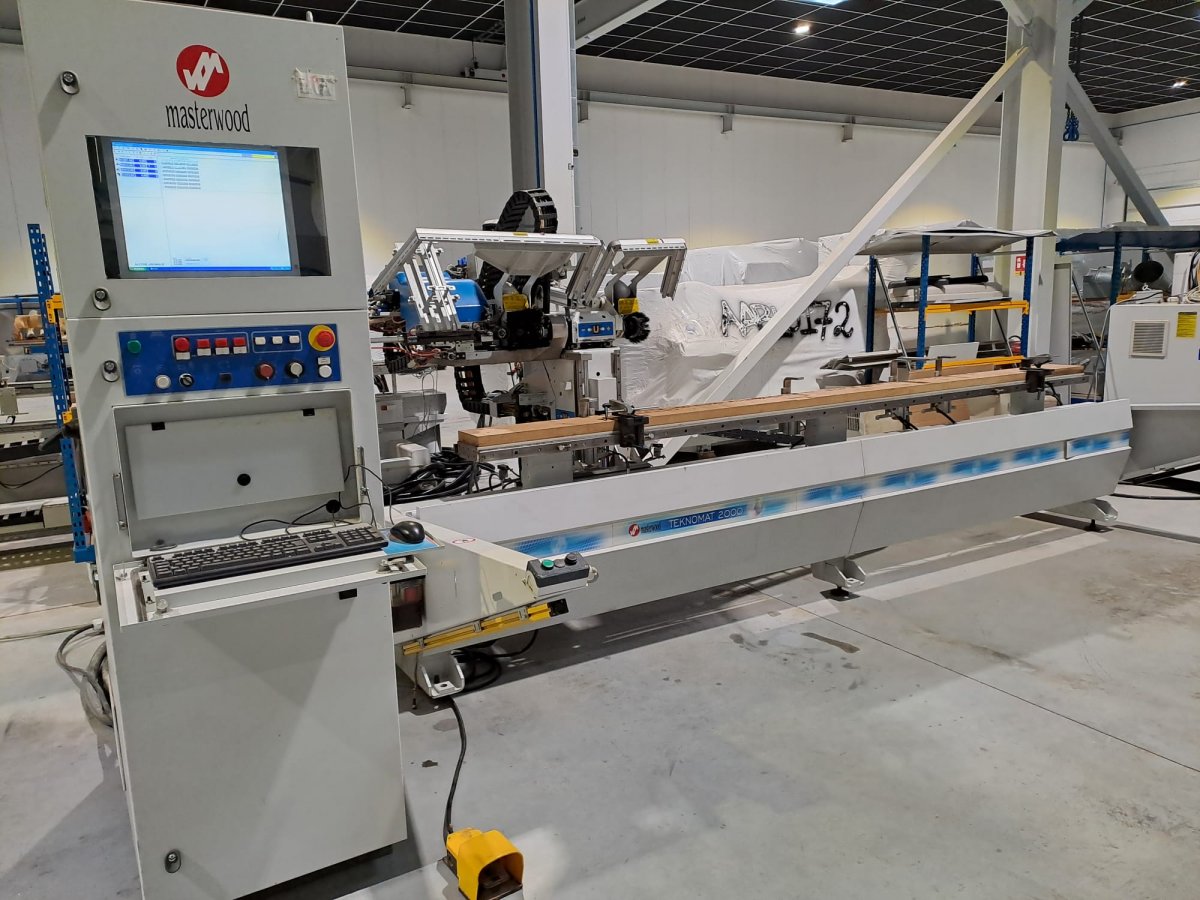

MASTERWOOD Teknomat 2000TF File Notching Machine
· Registration number: 04100016
Year : 2004
Origin : Italy
Condition : Used
Availability : In stock
Composition :
- 400V 50Hz Euro power supply

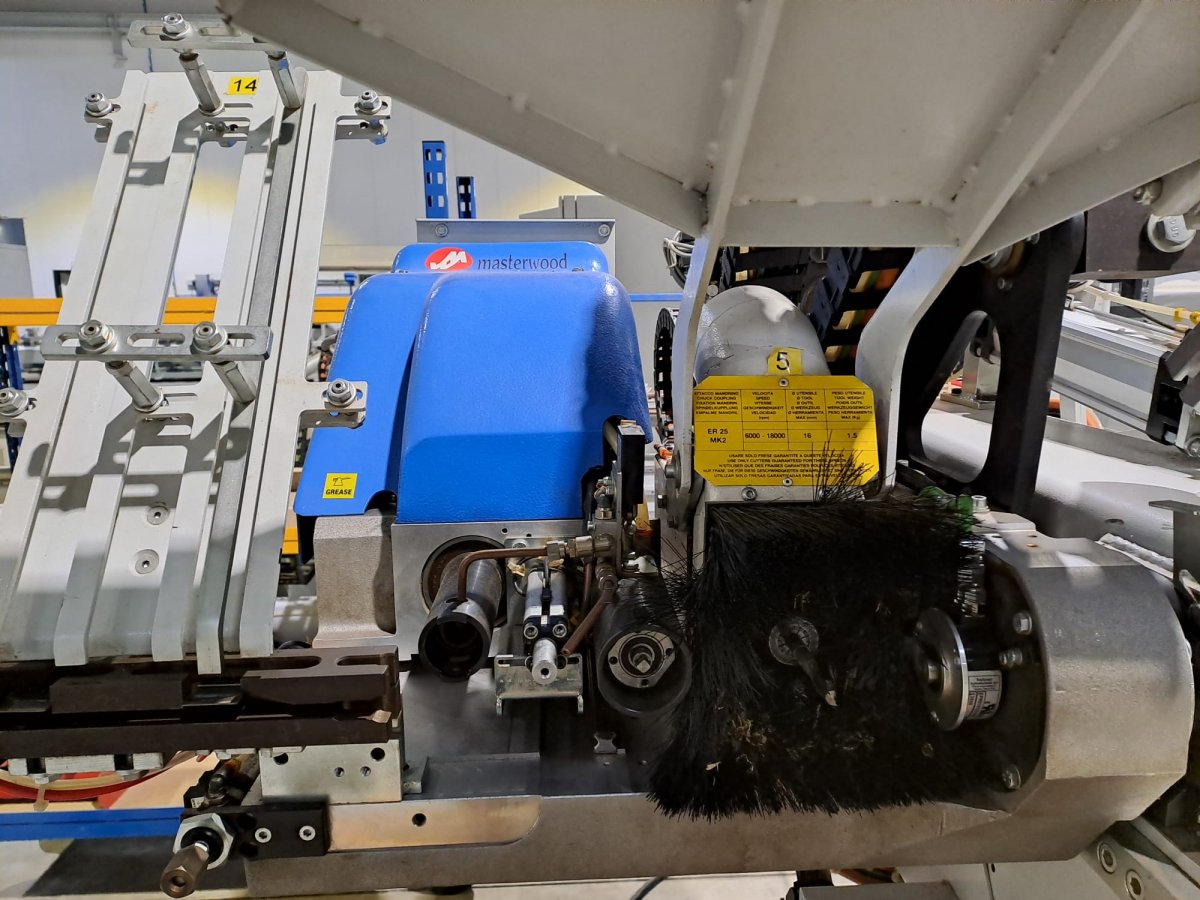

- Anuba head with turn count control
- Teflon-coated chuck and charger
- Anuba plug, 16mm diameter
- 3.3 kW electro-chuck
- 3.3 kW pneumatic tilting electro-chuck 0-90°
- CE safety standards
- Two front panel supports
- Additional rear vertical presser
- CN on external PC
- PC and instructions in French. Technical specifications :
Machining capacity:
X:3000mm
Y:150mm
Z:350mm
Group: 1-2 on digital tilting stand -7° to 90°
Group 3 on pneumatic tilting support 0-90°
1st group of ANUBA plugs, 16mm diameter (diameter to be confirmed), digitally tiltable -7° to 90°
2nd high-frequency electro-spindle milling unit, 18,000 rpm, 3.3 kW, digitally tiltable -7° to 90°
3rd high-frequency electro-spindle milling unit, 18,000 rpm, 3.3 kW, pneumatically tiltable 0-90°
- Table dimensions: 3000 mm usable
- Controls on a separate cabinet
- Masterwood MW313 Software
- Program provided: for ANUBA hinges (3 models)
- Program for mounting 2 closely spaced ANUBA hinges
- Program to perform a single drilling
- Louvered shutter program
- Milling program for the lock housing and for the hanger
-Speeds:
70 m/min on the U-axis
40 m/min on the V-axis
15 m/min on the W axis
- Anuba double 16mm included (diameter to be confirmed)
- Two front panel supports
- Digital up, down, and tilt
- Digital counter on the control panel
- Specific data: safety barrier material, infrared beam on the facade
- Suction diameter: 2 x 100 mm
- Ampere: 25.5
- Machine dimensions: 5900 mm x 3300 mm, cabinet 1200 mm x 600 mm
