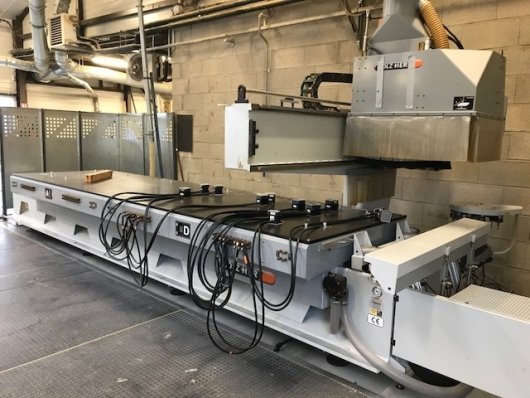

HOLZHER uni-master 7120 F machining center

Holzher Uni-master 7120 F
Code : AR00508
Holzher Condition : Used - In stock
Contact us by email by clicking here or by phone on 04 90 70 50 33
Category : Working centers

Technical description

Description:

heavy structure industrial machine

Machining range:

- X: 4335mm
- Y: 1300mm
- Z: 180mm

- Movement speed of the "X" "Y" axes 78 m/min
- "Z" axis linear speed: 25 rpm
- 12KW HSK63F liquid-cooled electrospindle

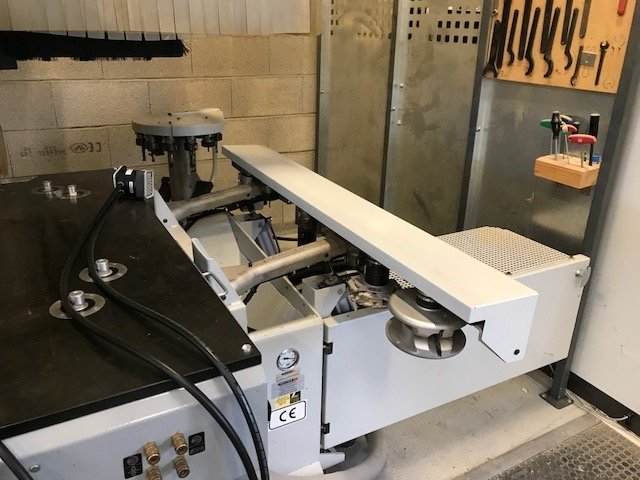

- 2.2kw horizontal milling head
- Remote control remote control
- Barcode reader
- "C" VECTOR AXIS allowing the angle transmission heads to be rotated and positioned 360° with automatic rotation adjustment by numerical control
- Spindle liquid cooling system
- Independent fixed blade group - to make grooves in "X" direction
- Rear tool change magazine with 12 positions
- Additional pick up tool magazine 10 positions

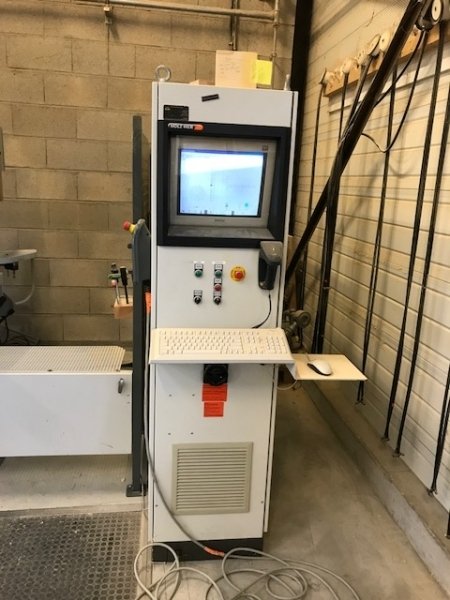

- Programming and control system under PC WINDOWS

Drill head:

-12 independent chucks for vertical drilling in "X" direction
- 6 independent chucks for vertical drilling in "Y" direction
- 4 mandrels for horizontal drilling in "X" direction
- 2 chucks for horizontal drilling in "Y" direction
