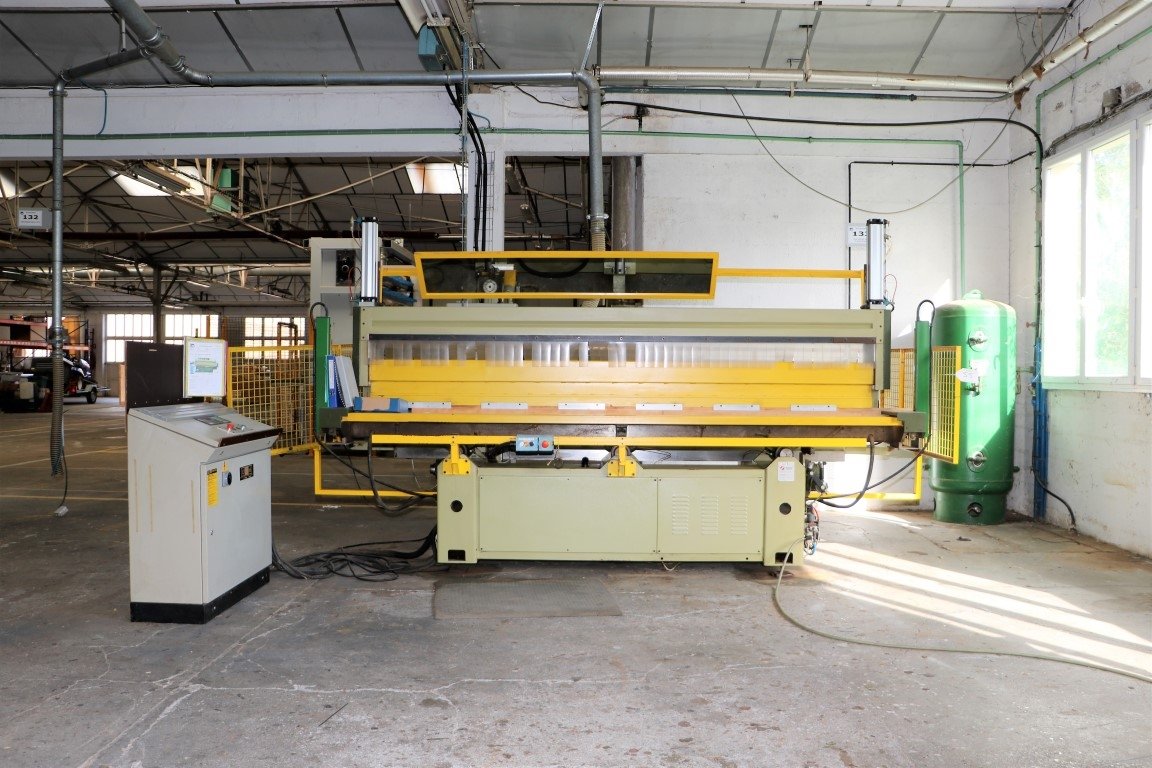

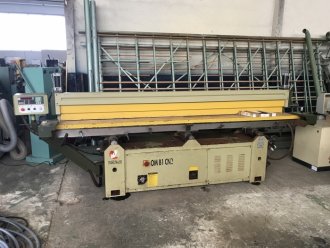

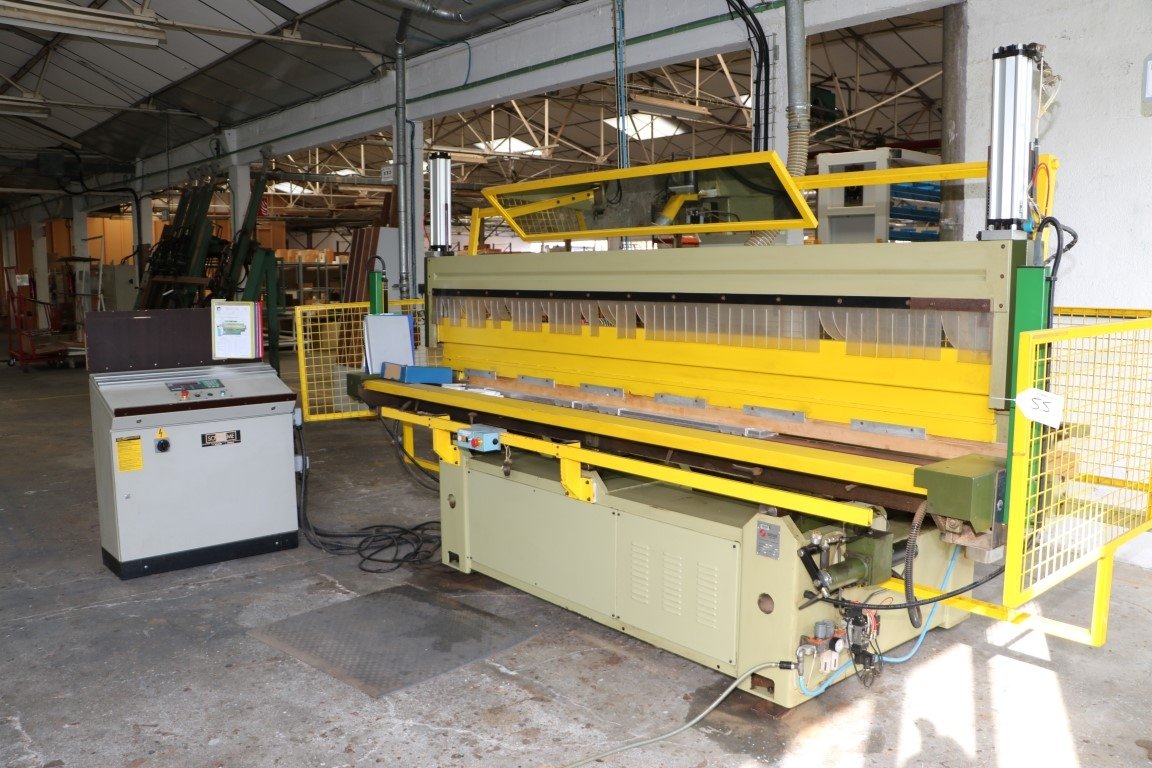

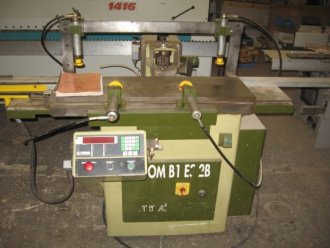

Chisel mortiser MASTERWOOD OMB1 CN3K

Mortising machine with numerical control MASTERWOOD OMB1 CN3K

X-AXIS CONTROL:
MOVEMENT BY SCREW AND BUSHING WITH RECIRCULATION OF SPHERES DRIVEN BY BRUSHLESS MOTOR
MOVEMENT TRANSMISSION BY PULLEY AND TOOTHED BELT MOVEMENT ON HIGH PRECISION LINEAR SLIDES WITH SPHERE RECIRCULATION SKATES AND SCRAPER ON THE SIDE.
- TRAVEL SPEED 60 M/MN
- USEFUL STROKE 2800 MM
Y-AXIS CONTROL:
OLEPNEUMATIC ACTUATION WITH OPTO-ELECTRONIC RULER FOR CONTINUOUS AXIS CONTROL.
MOVEMENT ON HIGH PRECISION LINEAR SLIDES WITH SPHERE RECIRCULATION SKATES AND SCRAPER ON THE SIDE. MORTISE DEPTH 120 MM
Z-AXIS:
MANUAL MOVEMENT WITH DECIMAL NUMERICAL INDICATOR OF WORKING POSITION AT HEIGHT
MAX MACHINING HEIGHT 120 MM
WORKTABLE :
- TABLE DIMENSIONS 3750MM X 300MM
- THE MAXIMUM LENGTH OF THE WORKPIECE VARIES ACCORDING TO THE CONFIGURATION OF THE MACHINE.
- PRESSURE BARS FOR LOCKING THE WORKPIECE MAXIMUM VERTICAL CAPACITY 200 MM
MAXIMUM HORIZONTAL CAPACITY 200 MM
- 7 FIXED REAR STOPS WITH MANUAL VERTICAL ADJUSTMENT
- 1 RIGHT LATERAL STOP WITH MANUAL POSITIONING
- 1 LEFT SIDE STOP WITH MANUAL POSITIONING
MORTING HEAD:
- 2.2KW MOTOR (3HP)
- ROTATION SPEED 2840 RPM
- AUTOMATIC SPLIT PROTECTION DEVICE WITH BLOWER AND VACUUM

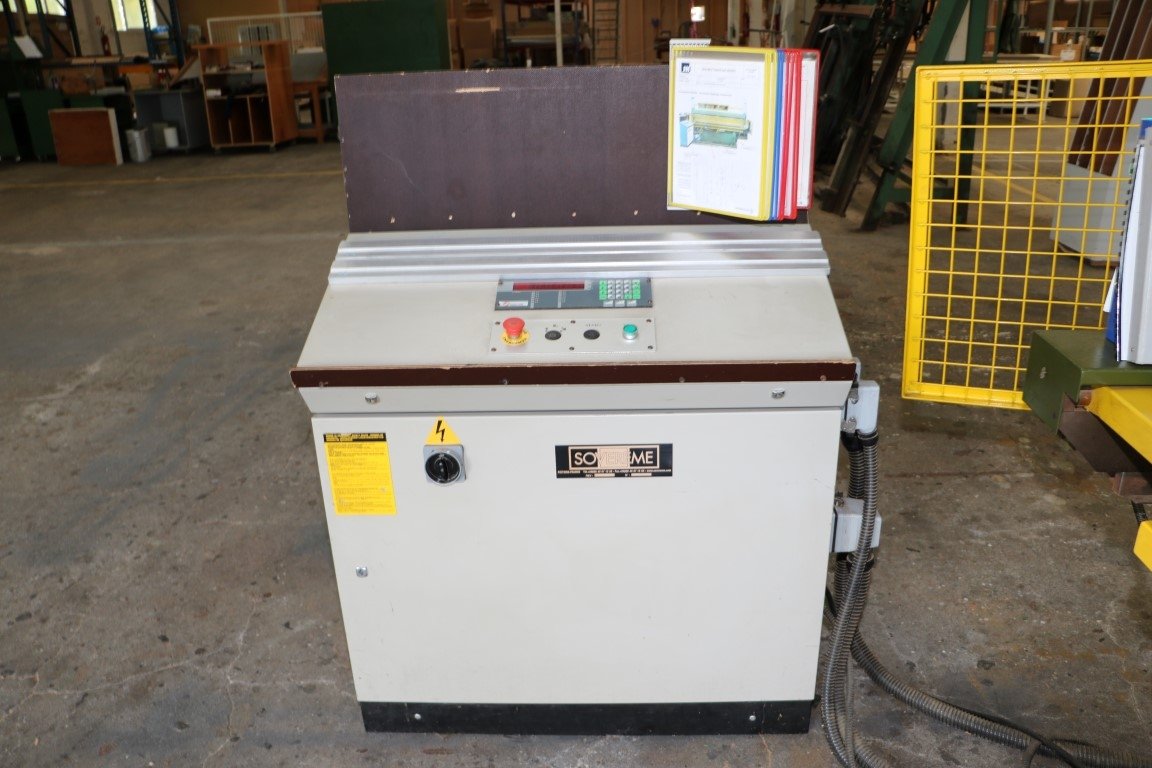

"CN 050" DIGITAL CONTROL
- MICROPROCESSOR CONTROL UNIT
- BLACK AND WHITE GRAPHIC SCREEN 240X128 PIXEL
- GRAPHIC PROGRAMMING
- REALIZATION OF PARAMETRIC PROGRAMS
- MACRO GRAPHICS FOR AUTOMATIC CALCULATIONS
- CALCULATION OF THE CHISEL OSCILLATION ANGLE
- INPUTS AND OUTPUTS DIAGNOSIS
- SUPPLY 400 V 50 HZ EUROVOLTAGE (380/400/415 VOLTS)
-EC MANDATORY SAFETY STANDARDS:
- SIDE AND REAR PROTECTION CAB WITH ACCESS DOOR
- PHOTO-ELECTRIC CELLS DETECTING THE PRESENCE OF THE OPERATOR IN THE WORK AREA
- ELECTRICAL CIRCUIT TO STANDARDS
- TIMED AUTOMATIC LUBRICATION OF THE SLIDERS MANAGED BY THE NUMERICAL CONTROL
-PROTECTIVE BELLOWS ALONG THE X AXIS
