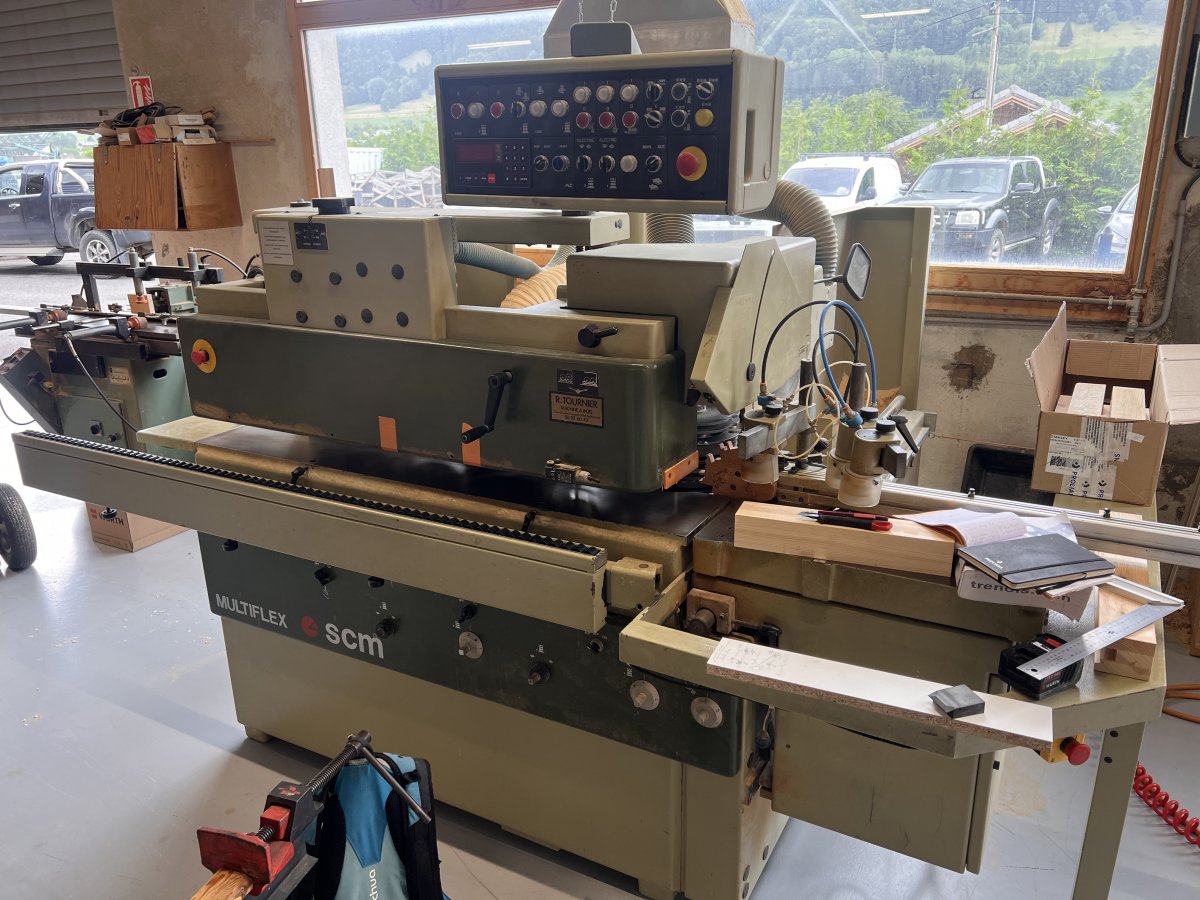

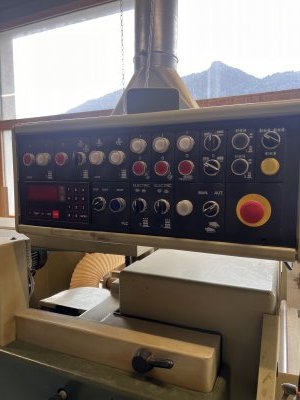

SCM MULTIFLEX ANGULAR CENTER
· Registration number: AB 42196
Year : 1990
Condition : Used
Availability : In stock
Origin : Italy
Composition : - Saw (d400mm) - Tenoning arbor (L320mm Bore 50mm) - Profiling arbor (L320mm Bore 50mm) - Glazing bead retrieval arbor (200mm blade)
Technical specifications :
- Pneumatic pointing - Revolver stop
- grooved axle, 320 mm long
- Maximum working circle 320 mm
- roller feed system
- 320 mm profiling spindle
- Maximum working circle 220 mm
- Maximum working length (with stops) 2800 mm
- Minimum part width 30 mm
- Maximum part width 140 mm
- Maximum height of wood splinters: 115 mm
- Engine power 4 HP
- Cutting saw speed 3000 RPM.
- Diameter of the dust extraction hood for the cut-off saw: 120 mm
- Slotted spindle clamping length 320 mm
- Slotted spindle travel under table 265 mm
- Slotted pin diameter 50 mm
- Grooving tool diameter 350 mm
- Slotted spindle speed 3250 RPM.
- Hood diameter 2x120mm
- feed speeds 1.5-16 M/Min.
- Profiled spindle length 320 mm
