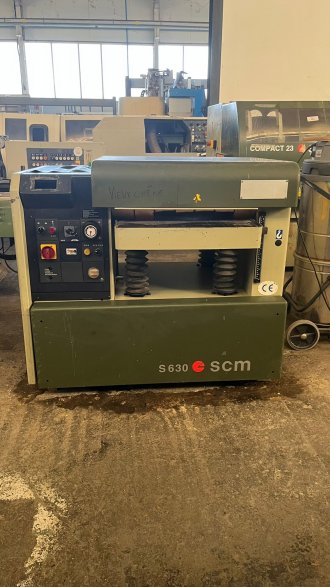

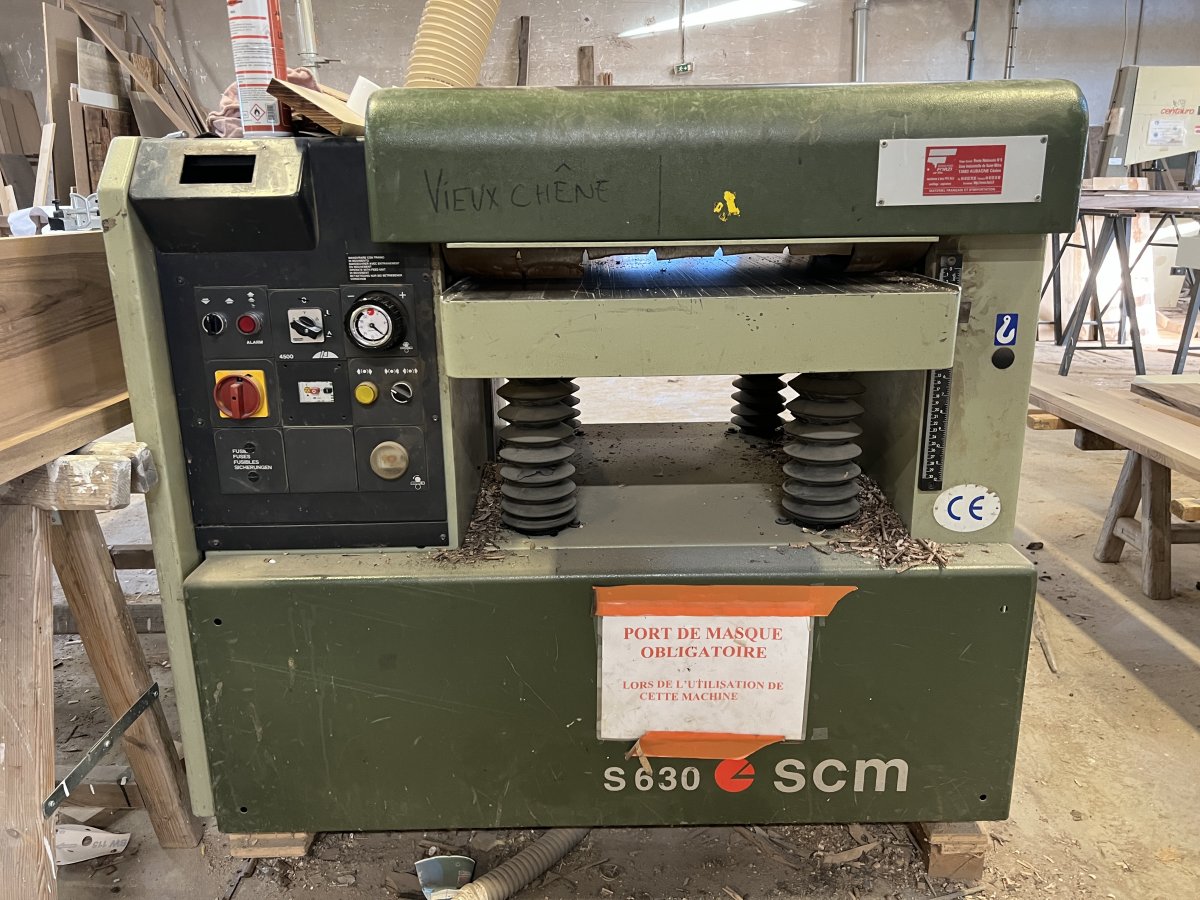

SCM S630 Planer
· Registration number: AB/11.3991
Year : 1997
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications :
Usable planing width: 630 mm
Working thickness: 3.5 to 300 mm
Minimum part length: H 260 mm
Maximum material removal per pass: 8 mm
Table dimensions : 640 × 1000 mm
Variable feed rate : 4 to 20 m / min
Height adjustment : motorized drive with screw guidance
Multiple drive rollers with adjustable pressure
Planing group
Shaft : Ø 120 mm
Number of knives: 4
Rotation speed: H 4,500 rpm
Shaft type : standard or helical
Main motor power : 7 kW
