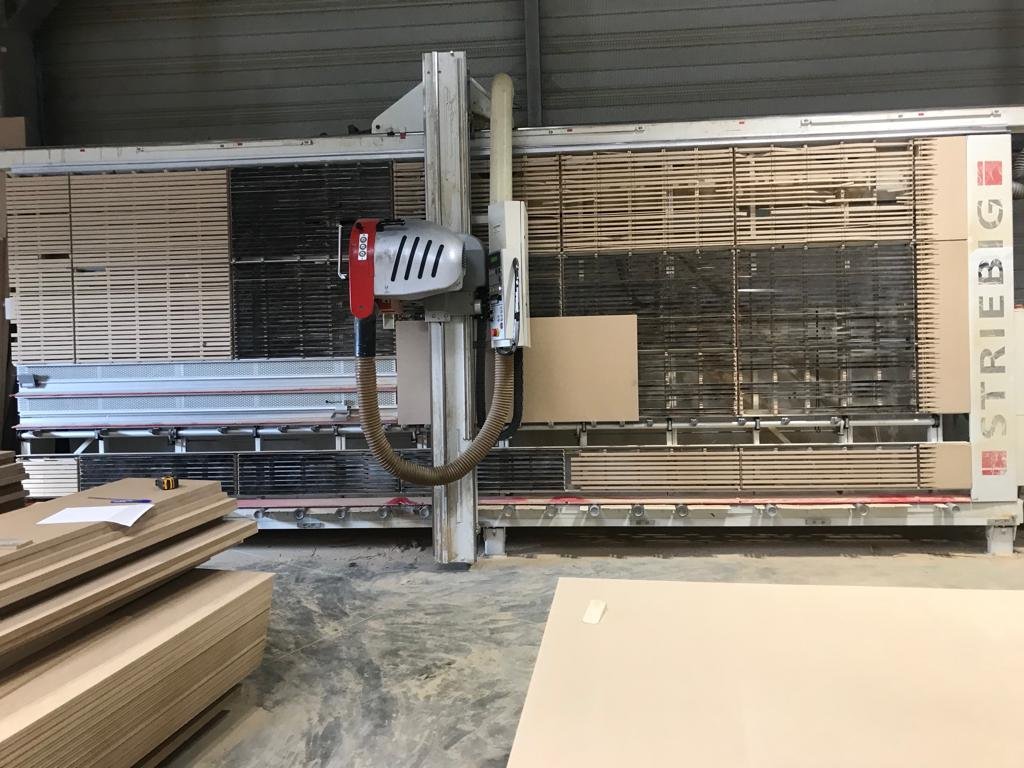

STRIEBIG CONTROL panel saw Type 6224
· Registration number: 37971
· Year: 2006
Condition : Used
Origin : Switzerland
Technical specifications:
Cutting dimensions: 5300x2240x80
12-inch touchscreen computer with optimal user guidance
- Laser-assisted horizontal cut display
- DMS-X digital measurement system
- EPS-Y electronic positioning system with automatic top trimming ABO
- Automatic locking of the saw bar with interface recognition
- Automatic locking and pivoting of the sawing unit
- Automatic insertion and removal of the sawing unit
- Automatic recognition of panel ends
- Fully automatic sawing sequence
- Selectable sawing cycle
- Pneumatic clutch for easy switching to manual mode
- Operating hours counter
- Tool database
- Central aluminum support along the entire length of the machine
- Integrated and particularly powerful TRK dust extraction system. Dust threshold value approx. 1 mg/m³
- Superior sound insulation
- Network connection
- Saw weight approx. 1200 kg
- Cutting depth: 80 mm
- Saw motor power: 5.5 kW (7.5 hp)
- Saw blade diameter: 300mm
- Saw blade bore: 30 mm
- Sound pressure level emitted at the workstation: 83dB
- Saw blade rotation speed: 4800 rpm
- 1 suction tube: Æ 140 mm
- Compressed air connection: 6-10 bar
- Connected charging: 7.5 kW
- Connected charging with the 4SB option: 10.4 kW
- Mains connection: 3 x 400V / 50 Hz
