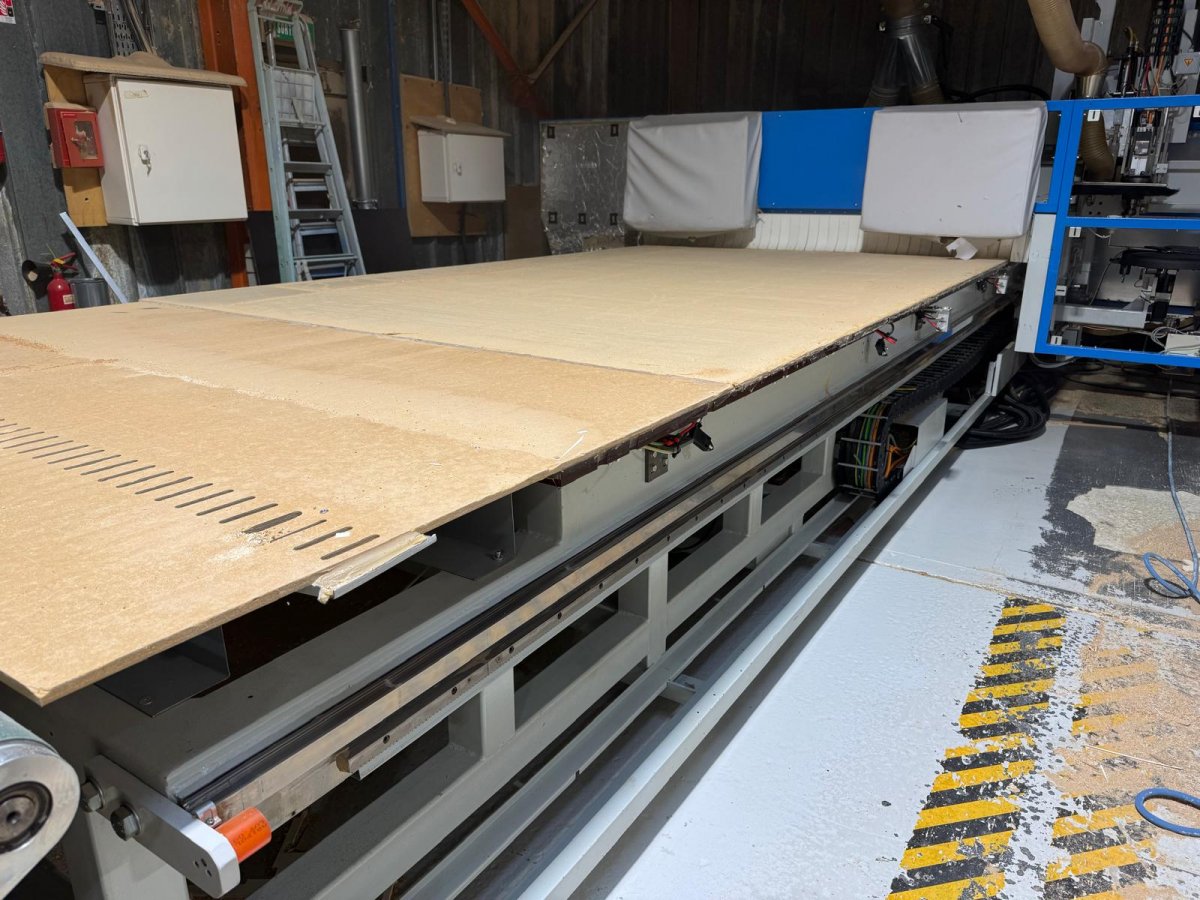

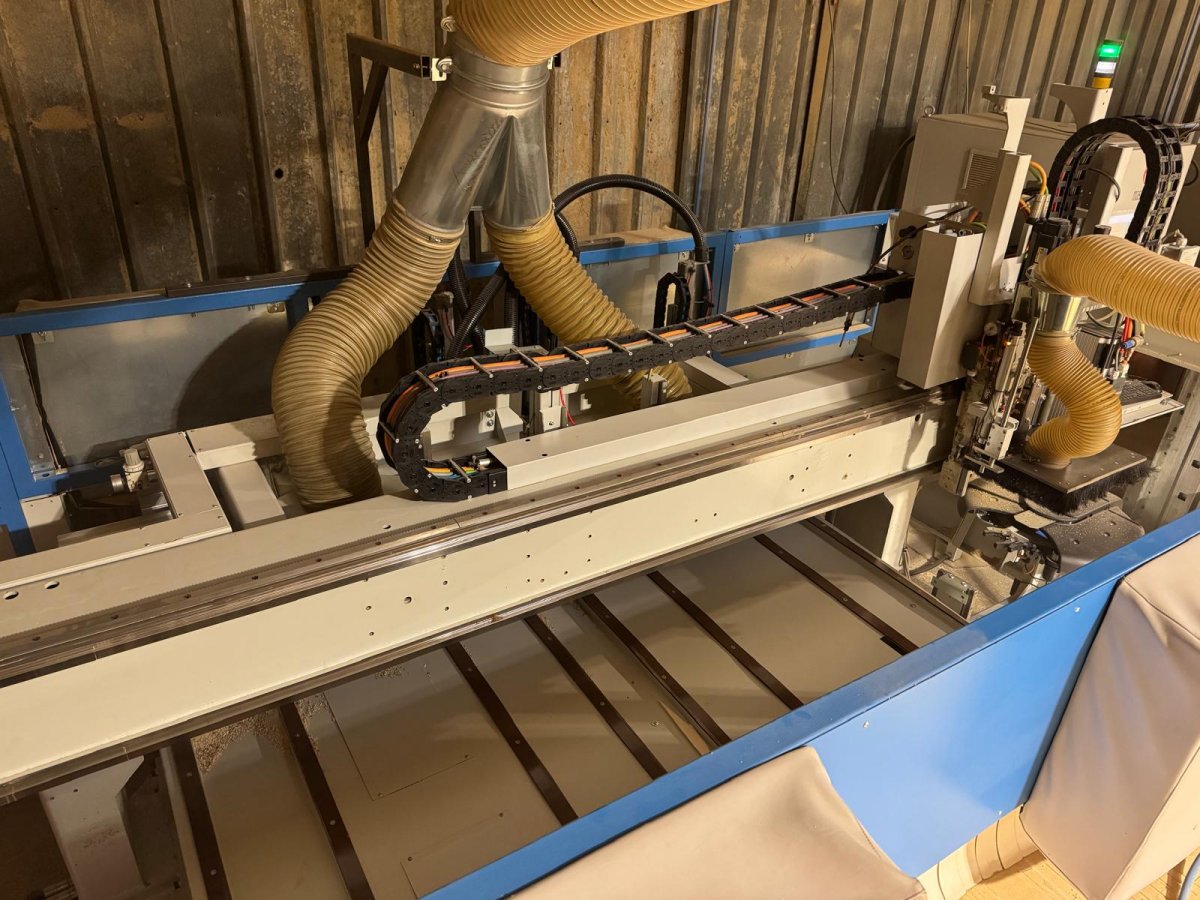

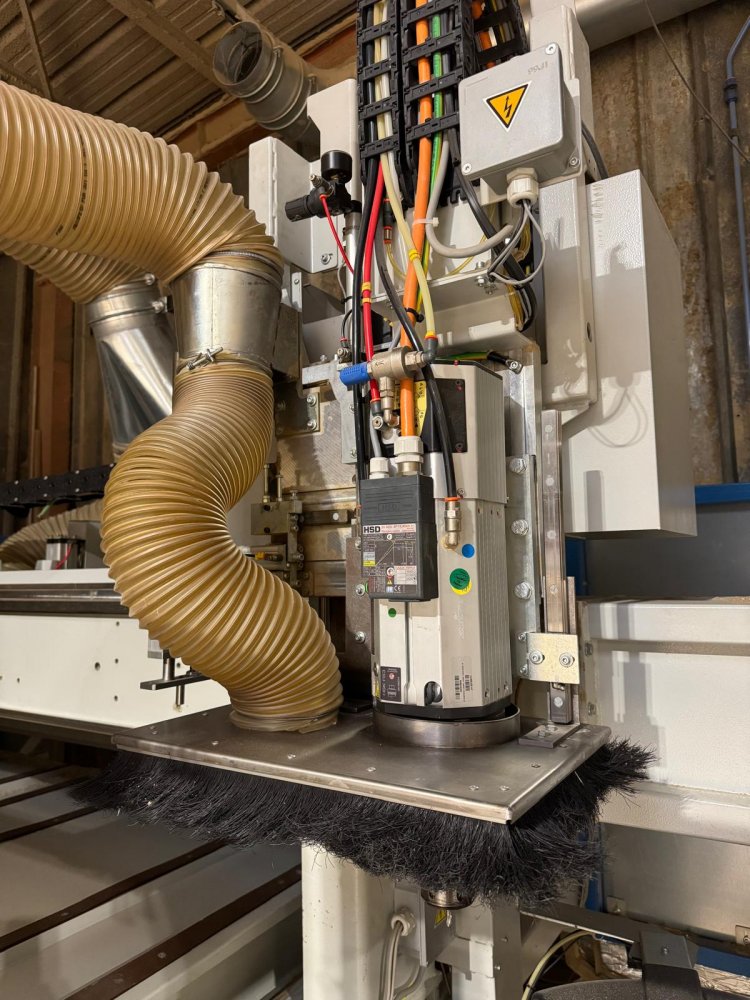

MASTERWOOD Nesting MW21.42M machining center
· Registration number: AAAD0011
· Year: 2014
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications :
-400v 50/60hz power supply
-Electromandrel 14 kW - HSK 63 F
-Adaptation support plate for HSK 63 F index heads, 16-position tool magazine, on board HSK 63 F trolley
-14 kW frequency inverter
-Cooling unit for a 14kW generator
-Head without drilling unit
-Grid table
-Table pre-arranged for loading/unloading, lifting platform for 2200 mm x 4200 mm panels
-Panel capture device
-Unloading conveyor for 2200 mm x 4200 mm panels, unloading aid device
-2 vacuum pumps of 250m3/h
-Panel thickness measurement device
-Automatic tool length measuring device

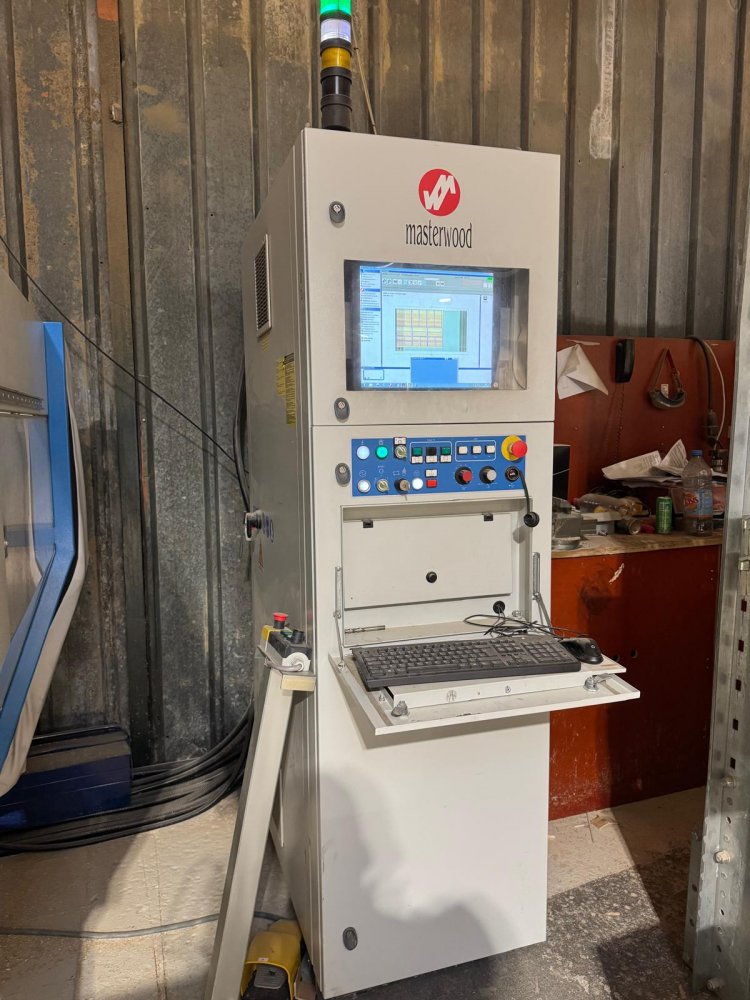

-Beckhoff CNC + Bosch motorization
-Masterwork
-4 Becker 300m3/h vacuum pumps to replace the standard vacuum pumps
-Moving roller press on the vertical plane
-Distance between roller supports = approximately 170 mm
-To allow mounting an index head with a 150 mm diameter blade
-Template with a maximum thickness of 15 mm + 2 panels with a maximum thickness of 21 mm, for a total of 57 mm
-Front and rear protection with bumpers, maximum speed x-axis = 40 m/min
-Automatic height adjustment of the pusher system
-Fixed suction for cleaning the machined part at the outlet
-Possibility of reducing the work table to 3800 mm if necessary
