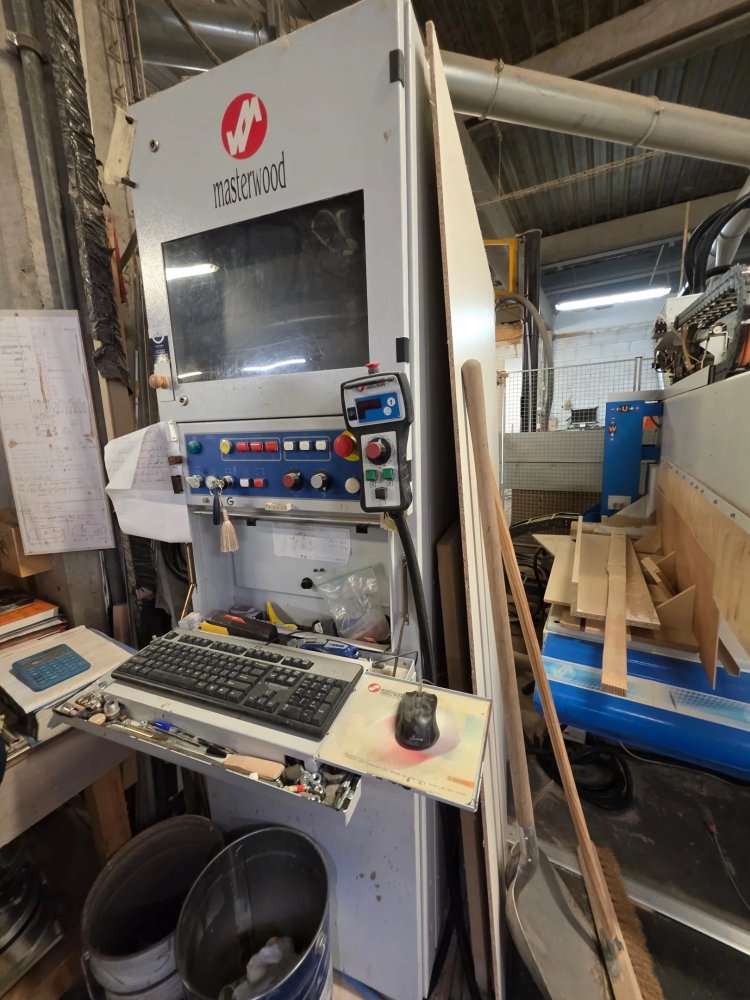

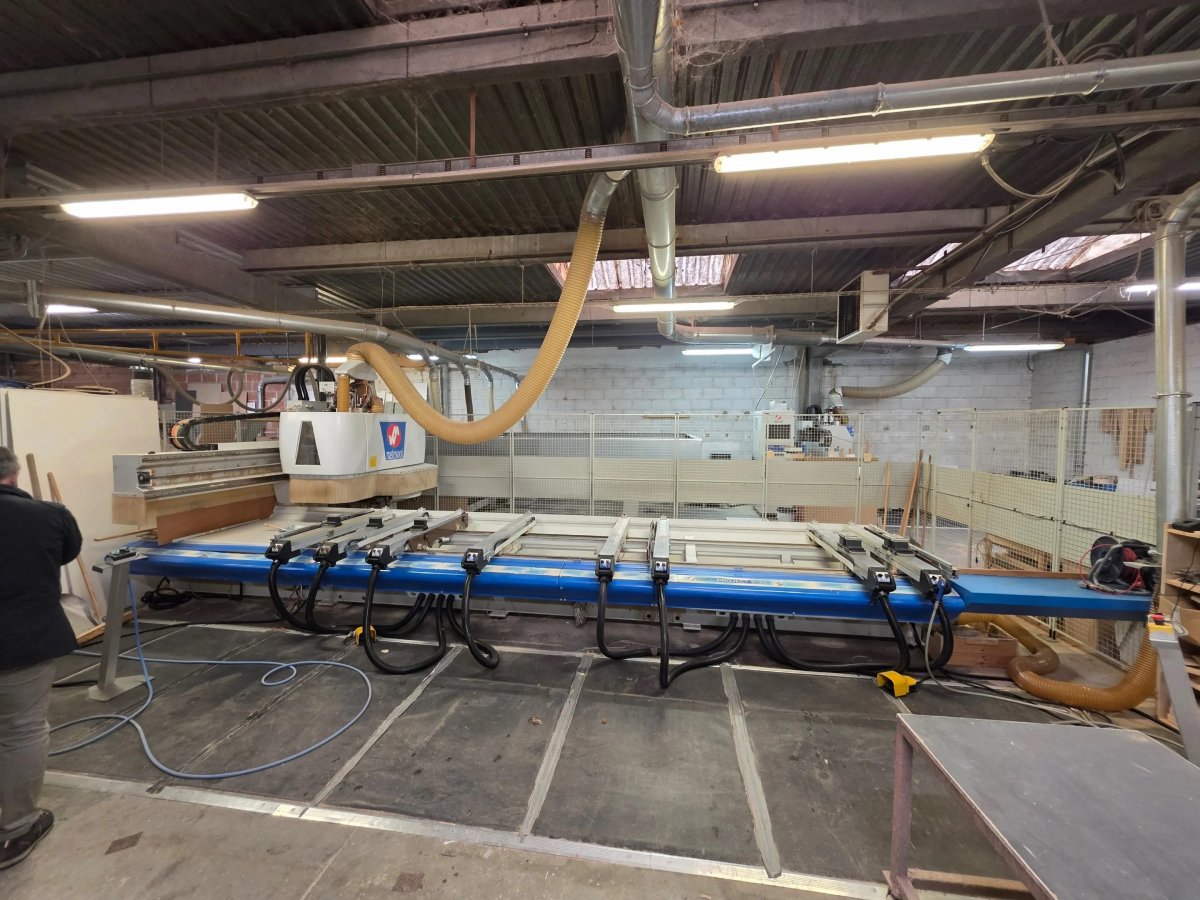

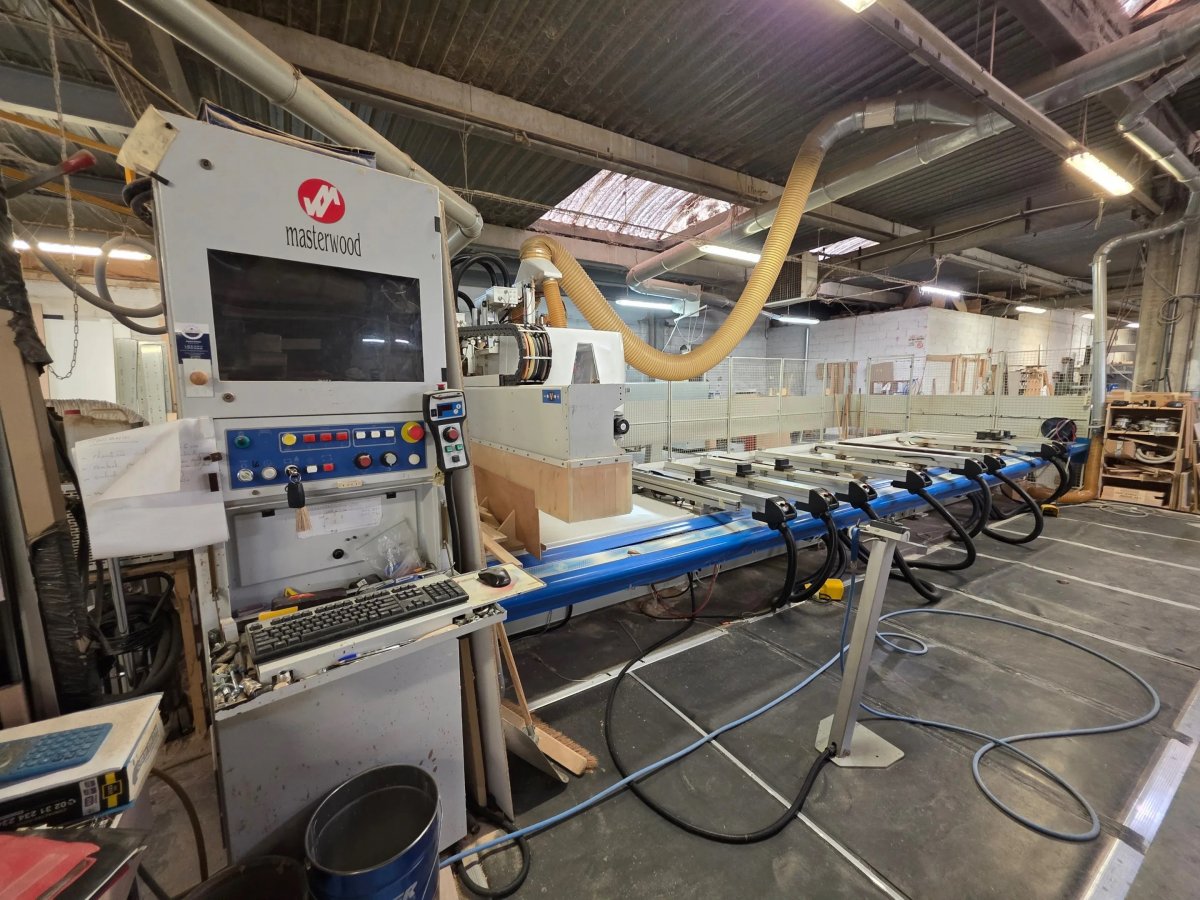

MASTERWOOD Project 500L machining center
· Registration number: 07110035
· Year: 2007
Origin : Italy
Condition : Used
Availability : In stock
Technical specifications :
- Machining range: X: 5150mm Y: 1390mm Z: 110mm
- Drill head with 16 chucks
- Saw for longitudinal incisions
- 9 kW electro-chuck - HSK 63 F
- Axis C
- 12-position tool magazine on board trolley HSK 63 F
- 2.2kW horizontal milling unit in rear position
- CN on external PC (PC + 17" screen) - multilingual
- 15 kW frequency inverter
- 8-bar tubeless table
- 2 stops per bar
- Table with 8 bars pre-arranged for locking with skewers
- 100 m3/h vacuum pump
- Mastercabinet level 1
- CE safety standards kit, version L
- 12 Pneumatic vertical pressers - 1 movement - H 100
- 2 Horizontal pneumatic vises
- 2 vacuum pumps of 100m3/h
- Teleportation remote control with screen
- Chip mat for L version
- "k" head incl. manual with 1 outlet -10^/90^ blade D=180 + cutter- HSK 63 F
- 12 Suction Cups 114x140mm - H 100
- 4 Suction Cups 125x75mm - H 100 longitudinal
- Instruction booklet in French
