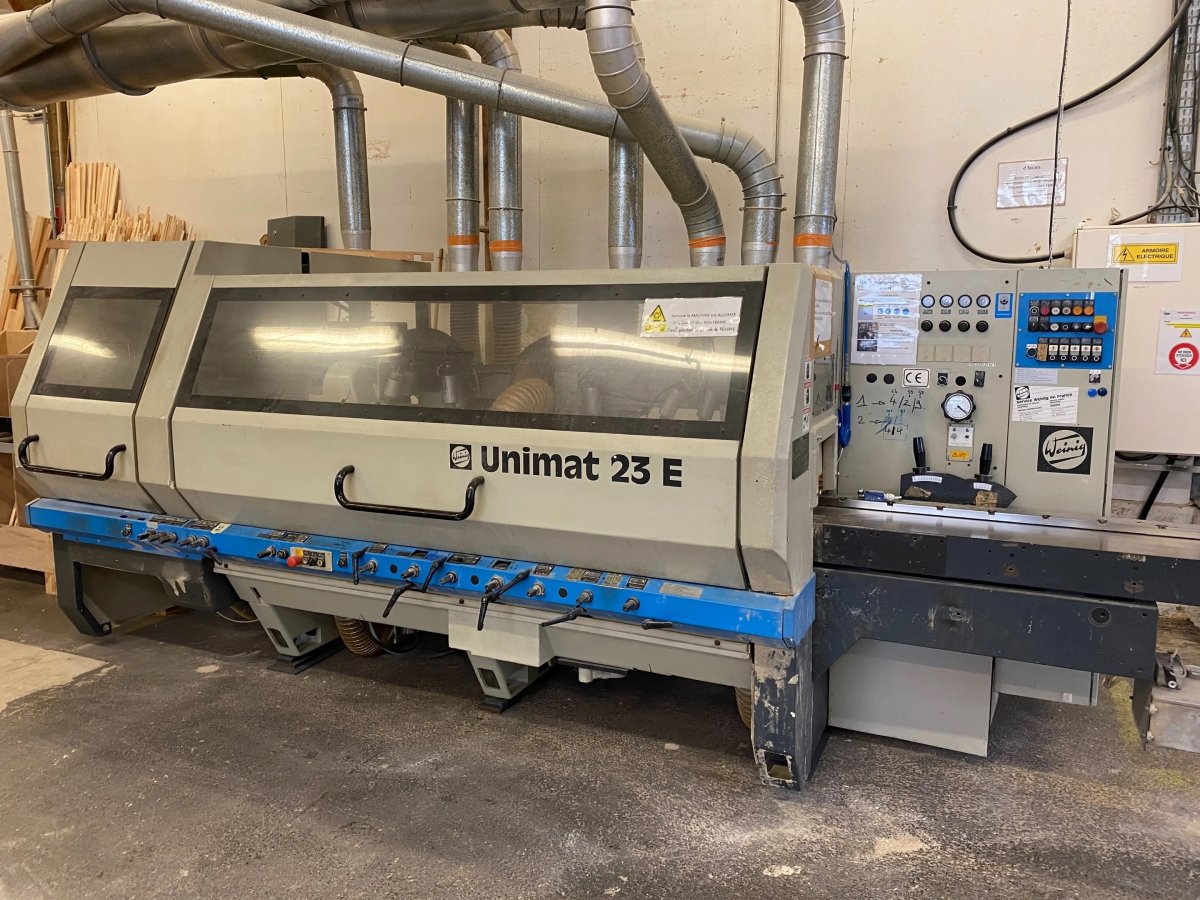

WEINIG UNIMAT U23E 4-SIDED 7-BAR MOULDER
· Registration number: 85514
· Year: 1998
· Origin: Germany
· Condition: Used
· Availability: in stock
Technical characteristics :
- Capacities th.xW.: 120 x 230 mm - Min and max section in width: 20-230 mm - Min and max section in height: 8-120 mm
- Minimum length of single part: 750 mm
- Variable speed: 5 to 24 m/min
- Spindle rotation speed: 6,000 rpm
Composition :
- Input table: 2500 mm
- Motorized adjustments of machining width and height
- All settings are located on the front panel, accessible with the hood closed
- Each of the settings is equipped with a SIKO digital counter
- Enveloping and soundproofing hood, with large panoramic window
- 6 tool holder shafts Ø40 mm
1. Lower horizontal shaft: 5.5 KW (7.5 hp)
2 and 3. Right and left spindle: 11 KW (15 hp) 4. Vertical shaft: 5.5 KW (7.5 hp)
5. Upper horizontal shaft: 7.5 KW (10 hp)
6. Lower horizontal shaft: 7.5 KW (10 hp) 7. Universal shaft: 5.5 KW (7.5 hp)
