Masterwood PROJECT 500 XL 4 Axis machining center

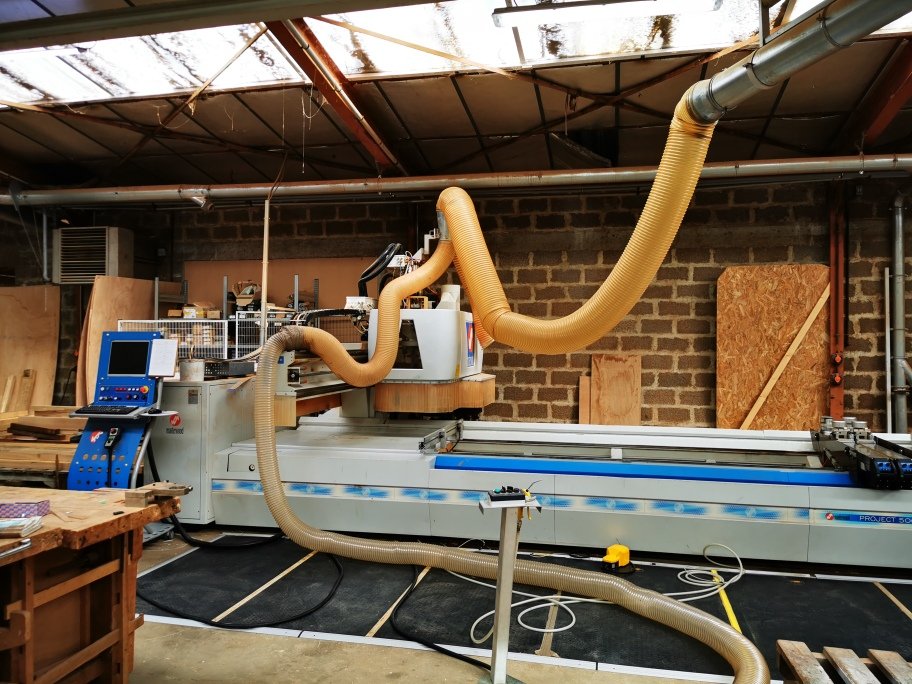

Masterwood Project 500 XL
Code : AR00853
Masterwood
Condition : Used - In stock
Contact us by email by clicking here
or by phone on 04 90 70 50 33
Category : Working centers

Technical description

Centre d'usinage Project 500 XL MASTERWOOD

Composition :

- X : 6200mm Y : 1700mm Z : 175mm

- Electromandrin 9kw HSK63 F ( 12cv )

- 4 Axes

- Magasin outil rapide 10 Positions sur tète HSK 63 F

- Tète de fraisage horizontale 3kw

- Bloc de perçage verticale et horizontale

- Magasin outil 12 Positions sur tète HSK 63 F

- Magasin outil pick-up 4 Positions

- 1 tête a renvoi d'angle inclinable -10/,90° Lame D=180mm, Fraise

- 1 Tête a renvoi d'angle 2 sorties porte fraise

- 8 barres Schmalz a double zone de vide

- Système de lève panneaux a double hauteur ( aide au chargement ouvrant ou dormant )

- Prédisposition pour les étaux et les pinces

- 6 Presseurs verticaux pneumatique a 1 mouvement

- 6 Presseurs verticaux pneumatique a 2 mouvements

- 6 Presseurs verticaux pneumatique a 1 mouvements spéciaux

- 2 Pompes a vide de 100m3/h

-Tapis récupérateur copeaux

- Télécommande mobile

- Aspiration : 1 bouche D250mm / 1 Bocuhe D 120mm

- Débit : 6500m3/h

- Année : 2009

Matricule : 09070006
