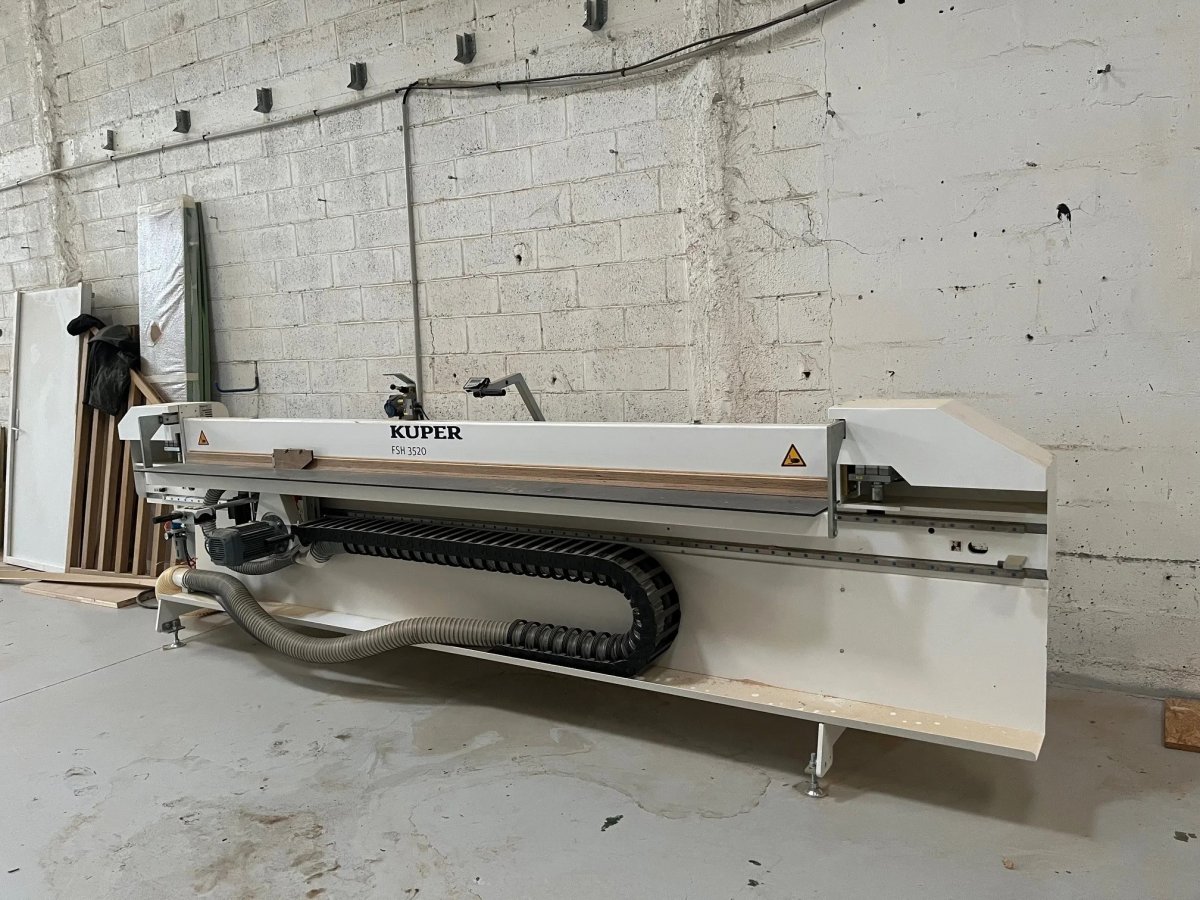

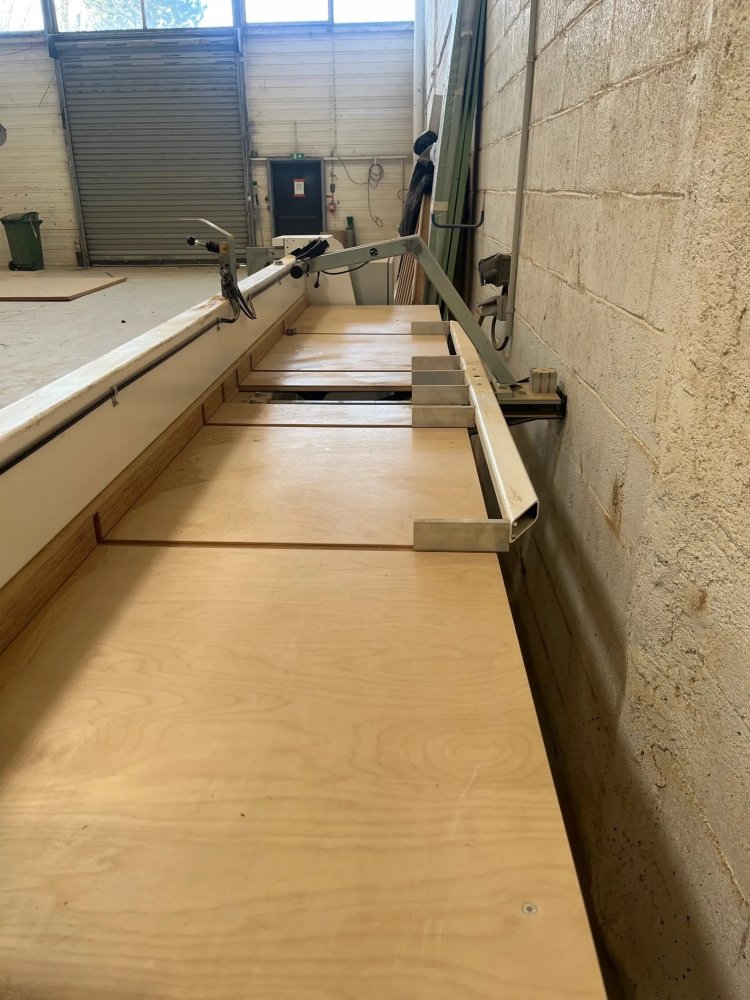

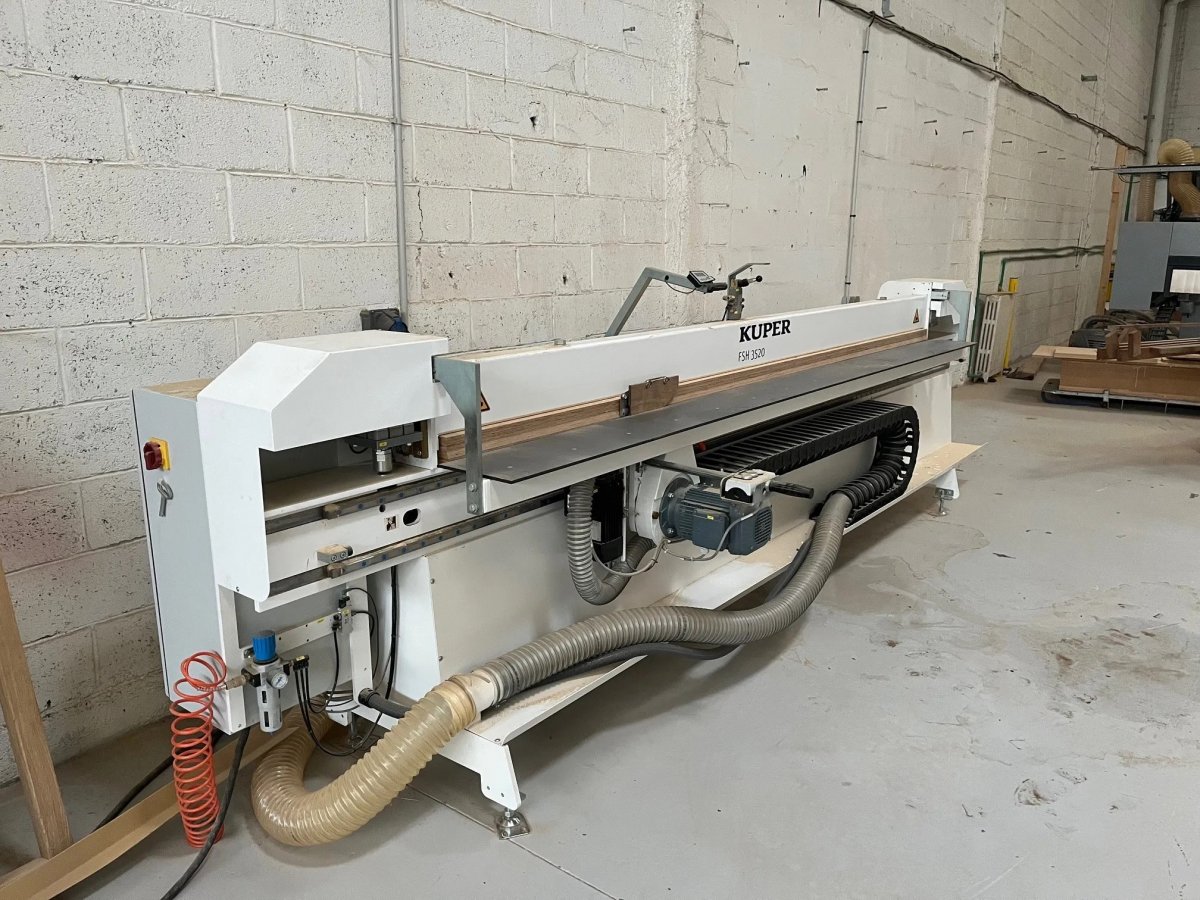

KUPER FSH 3520 Veneer Saw
· Registration number: K850-00083
Year : 2023
Origin : Germany
Condition : Used
Availability : In stock
Technical specifications :
CUTTING LENGTH 3520 MM
Basic equipment:
- pneumatic tensioning via 2 external clamping cylinders
- Saw carriage guidance with 2 extremely precise linear guides
- vacuum cleaner attachment for connection to a dust collector, 100 mm sleeve diameter
- 1 HM saw blade, 200 mm diameter
- Front support, 250 mm wide, fixedly mounted, manually movable to the planing unit
- maintenance unit
Opening height: 57 mm
Cutting height for veneer bundles: 32 mm
Three-phase motor: 2.2 kW
Voltage: 230/400 V
Included options:
Veneering Stop 25 - 625 mm
Adjustable in parallel with precision guidance.
Width adjustment by displacement,
Pneumatically lockable, digital display of dimensions.
Working area from 25 to 625 mm.
PLANING AGGREGATE
Includes jointing blade holder head, pneumatically mounted, electrically connect and disconnect.
Including a device for moving the front workpiece support table.
4 reversible plates 50x12x1.5mm
200x16 Z64 SAW BLADE
