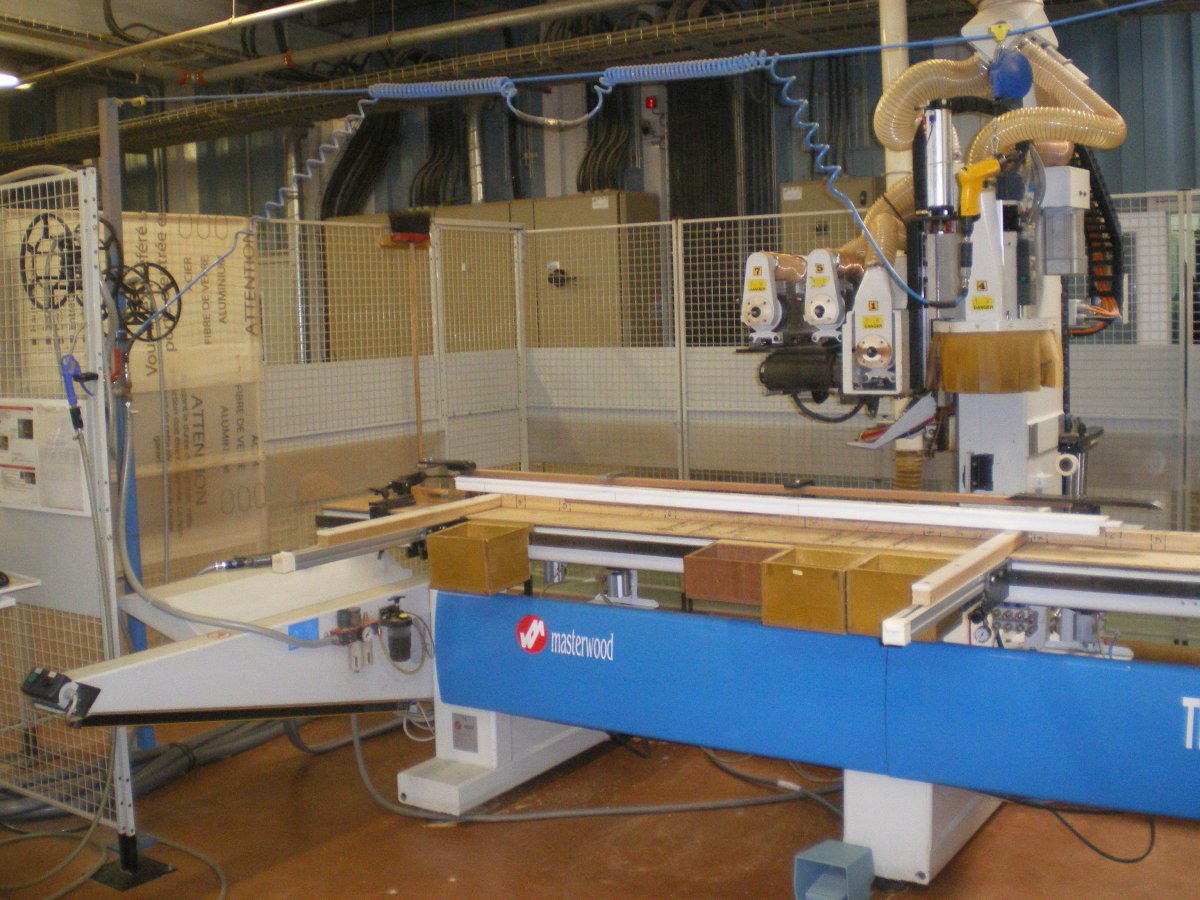

MASTERWOOD TEKNOMAT 2800 notching machine
· Registration number: 04070008
Year : 2004
Condition : Used
Availability : In stock
Description:
-Machining capacity:
X:2800mm
Y:780mm
Z:770mm
Position 1 on digital tilting support -7° to 90°:

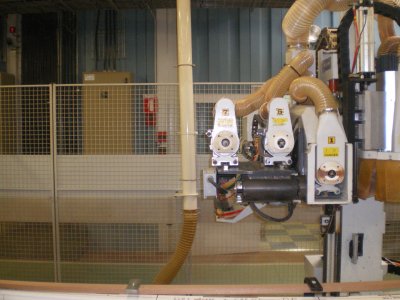

1A high-frequency electro-spindle milling unit, 18000 rpm, 3.3 kW, digitally tiltable -7° to 90°
1C high-frequency electro-spindle milling unit, 18000 rpm, 3.3 kW, digitally tiltable -7° to 90°
Position 2 horizontal fixed support:
2 high-frequency electro-spindle milling units, 18,000 rpm, 5.5 kW, fixed horizontal
Position 2 vertical fixed support:
3rd high-frequency electro-spindle milling unit, 24000 rpm, 5.5 kW, Vertical CONE ISO30 with variable speed drive
-front panel support
-Three pneumatic front pressure plates, 2 stops

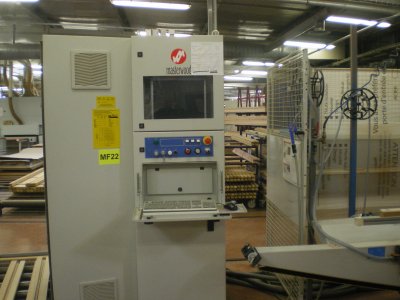

-Control via separate cabinet
-Masterwood MW313 Software
PROGRAMS PROVIDED
-Program for standard and baroque ANUBA hinges
-Program for ANUBA triple hinges
-Program for ANUBA hinges with pin (Locher type)
-Program for mounting two ANUBA hinges close together at a constant value
-Program to perform only the drilling operation
-Drilling program for installing ANUBA hinges with plates
-MILLING PROGRAM FOR THE LOCK HOUSING AND FOR HANGERS
-Latch
-Plywood
-Gond Pomella
-Gond Stanley
-Speeds:
60 m/min on the U-axis
20 m/min on the V-axis
20 m/min on the W axis
-Digital ascent, descent, and tilt
-Digital counter on the control panel
-Specific data: security barrier material, infrared beam on the facade
-Suction diameter: 1 x 200 mm centralized
-Ampere: 32
-Suction: 3000m3/h
-Machine dimensions: 5430 mm x 4798
-Weight: 3600kg, 430kg (Electrical cabinet)
