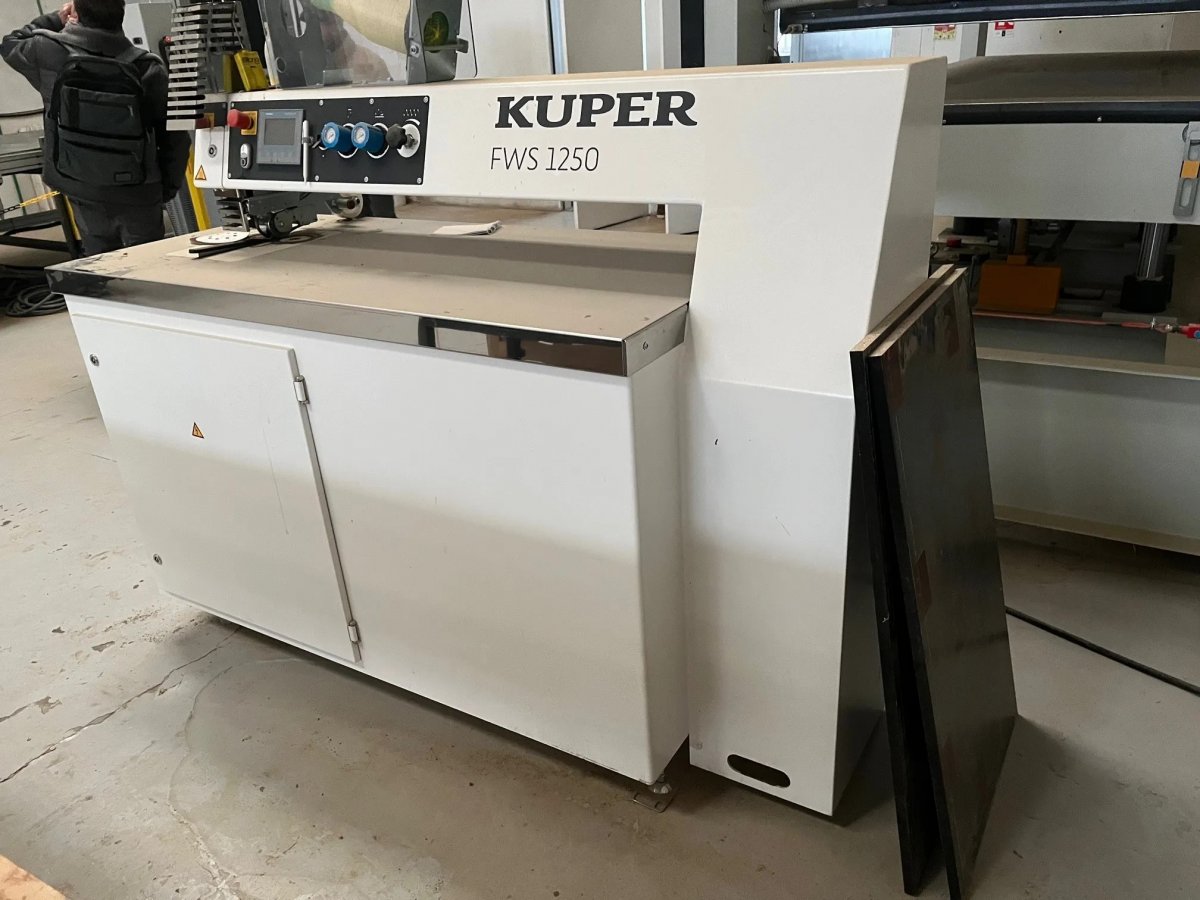

KUPER FWS 1250 Wire Jointing Machine
· Registration number: K132-00137
Year : 2023
Origin : Germany
Condition : Used
Availability : In stock
Technical specifications :
For joining veneers with a thickness of approx. 0.3 to 3.0 mm.
The machine uses a special glue thread that is glued in a zig-zag pattern onto the joint.
High adhesion and tear resistance ensure watertight joints even in the case of corrugated veneers.
The glue thread moves inwards during subsequent pressing, making any sanding of the adhesive medium unnecessary.
Specific characteristics:
* C-shaped steel frame structure free from warping
* stainless steel work table
* standard heating system
* industrial programmable logic controller
* Pneumatically adjustable bonding pressure
* crowned disc system with compensation
tolerance for different veneer thicknesses
* heating power regulation
in Off and On mode
* Tool-free adjustment of the gluing pressure roller
* Fully automated On/Off function
by light sensor
Technical specifications:
Upright span 1250 mm
Advance in 4 increments of approx. 15, 30, 45, 60 m/min.
Plating thickness of approx. 0.3 to 3.0 mm
Operating voltage 400 Volts, 50 Hz., 3 ph.
Compressed air fitting R 1/4''
Air consumption
tablet of approx. 7 NL/min
Connected power of approx. 3.1 kVA
Standard accessories
1 spool of original KUPER glue thread test wire, type 1220
10 threaders 103071
1 kg of separation agent 105661
1 tool kit, 1 instruction manual
Starter equipment including:
8 spools of Kuper type 1220 glued wire,
1 kg kurimol 0350028,
5 kg separator product 0350002,
100 threaders 0103071,
1 heating tube 0116099
